Hyundai
›
2007
›
Tiburon GS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System (G4GC-GSL 2.0L)
›
Gasoline Engine Control System
›
Components Location
Components Location

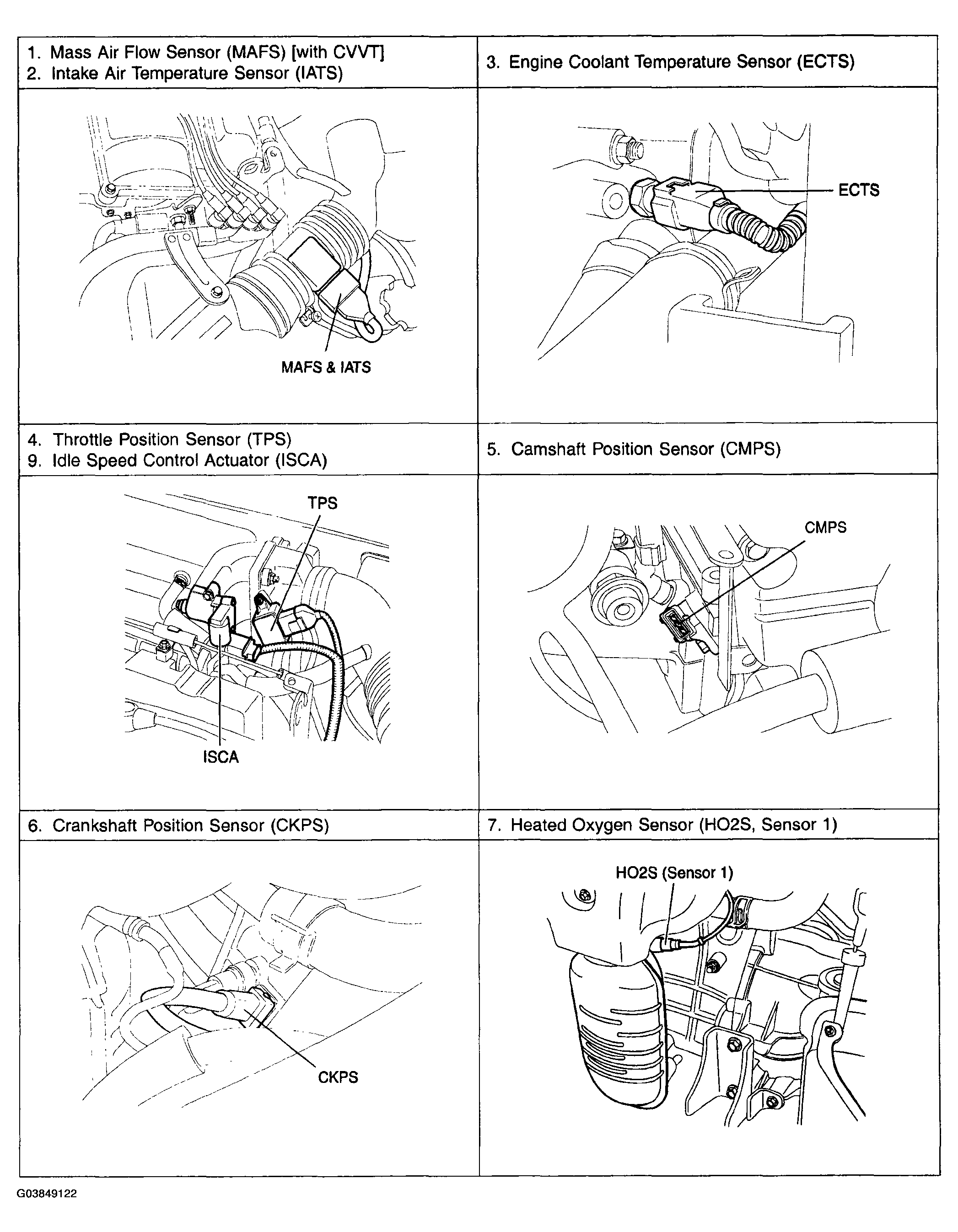

Fig 1: Identifying fuel system Components Location (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

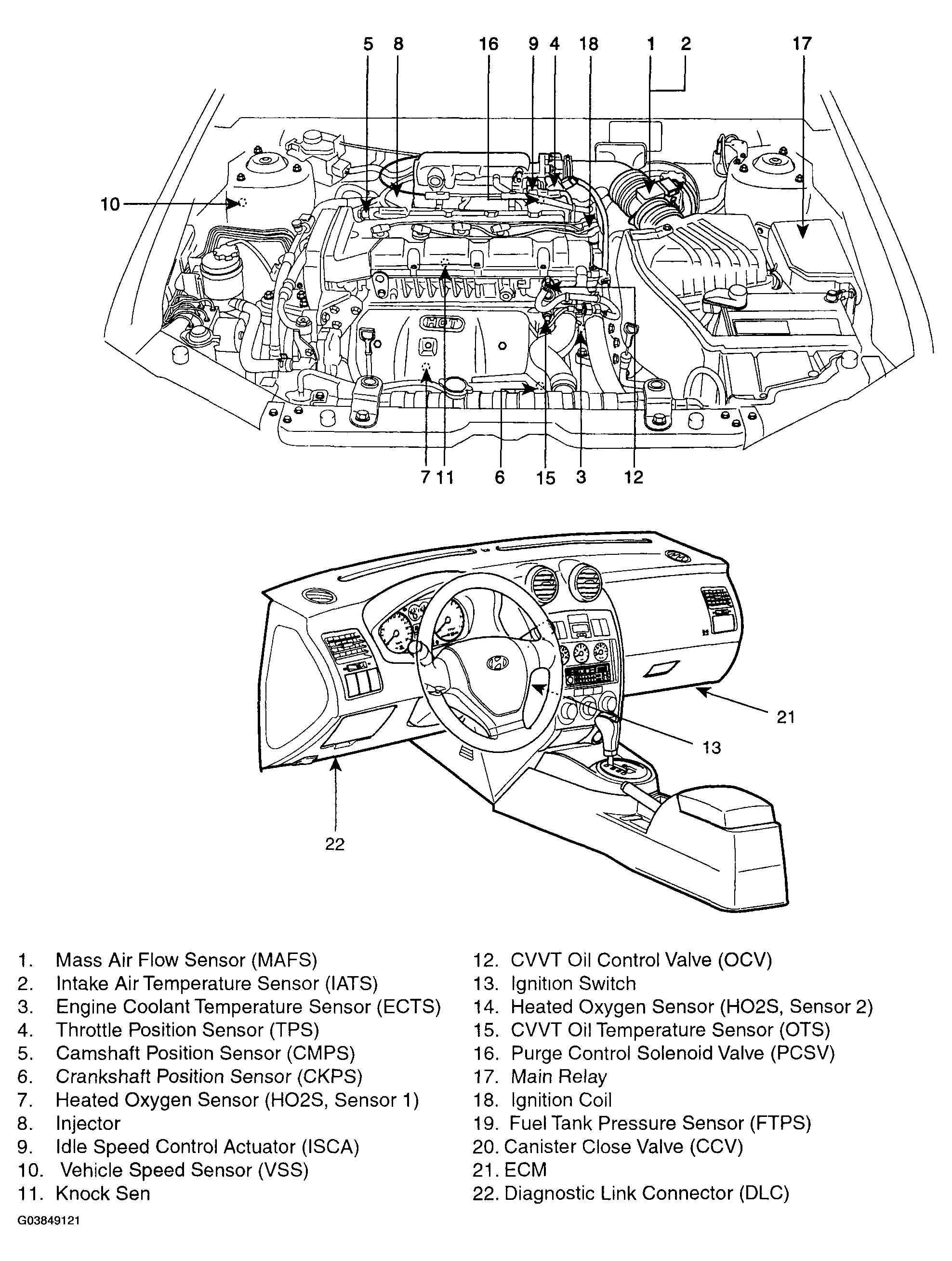

Fig 2: Identifying fuel system Components Location (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

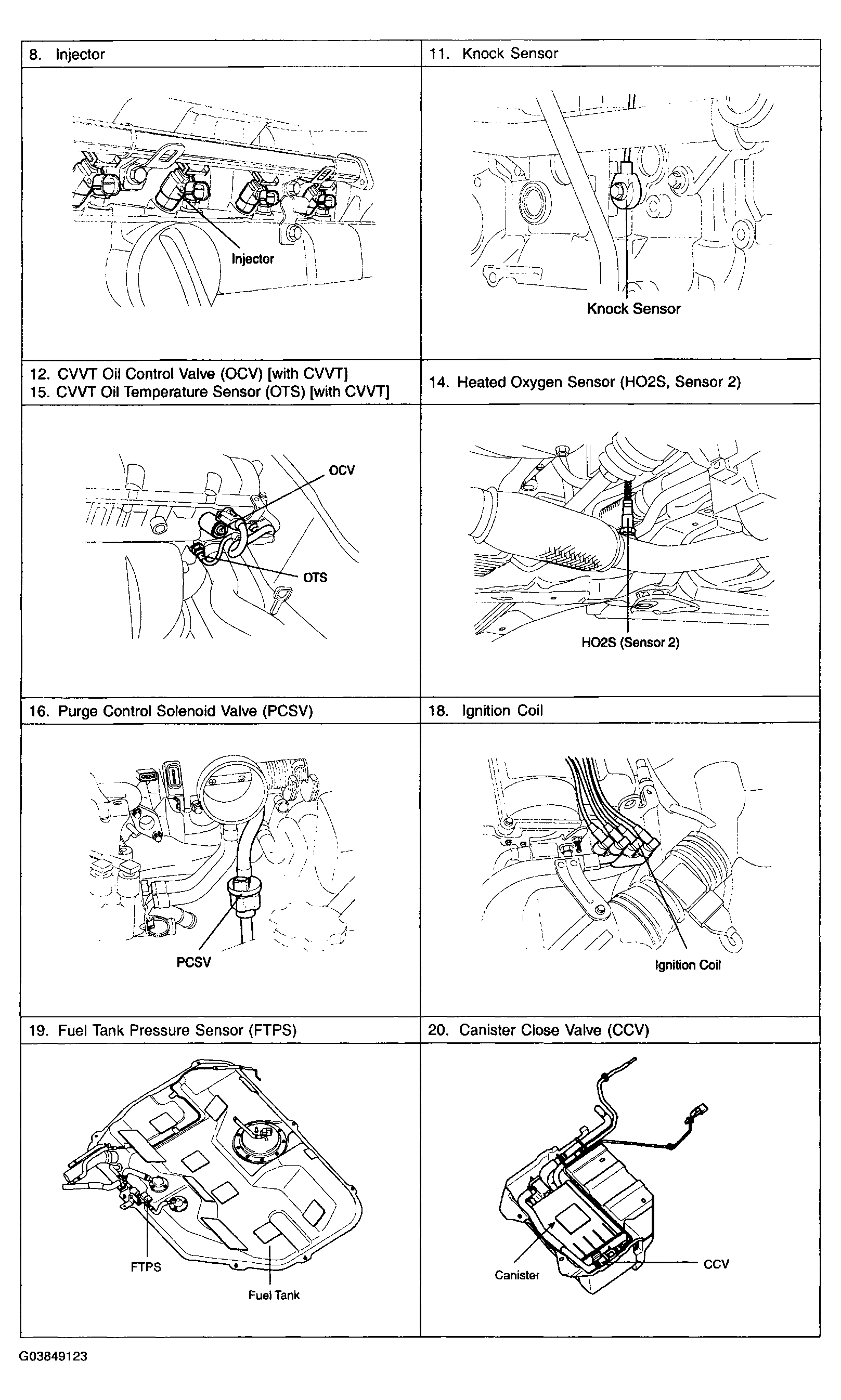

Fig 3: Identifying fuel system Components Location (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
