ECM Terminal Input/Output Signal

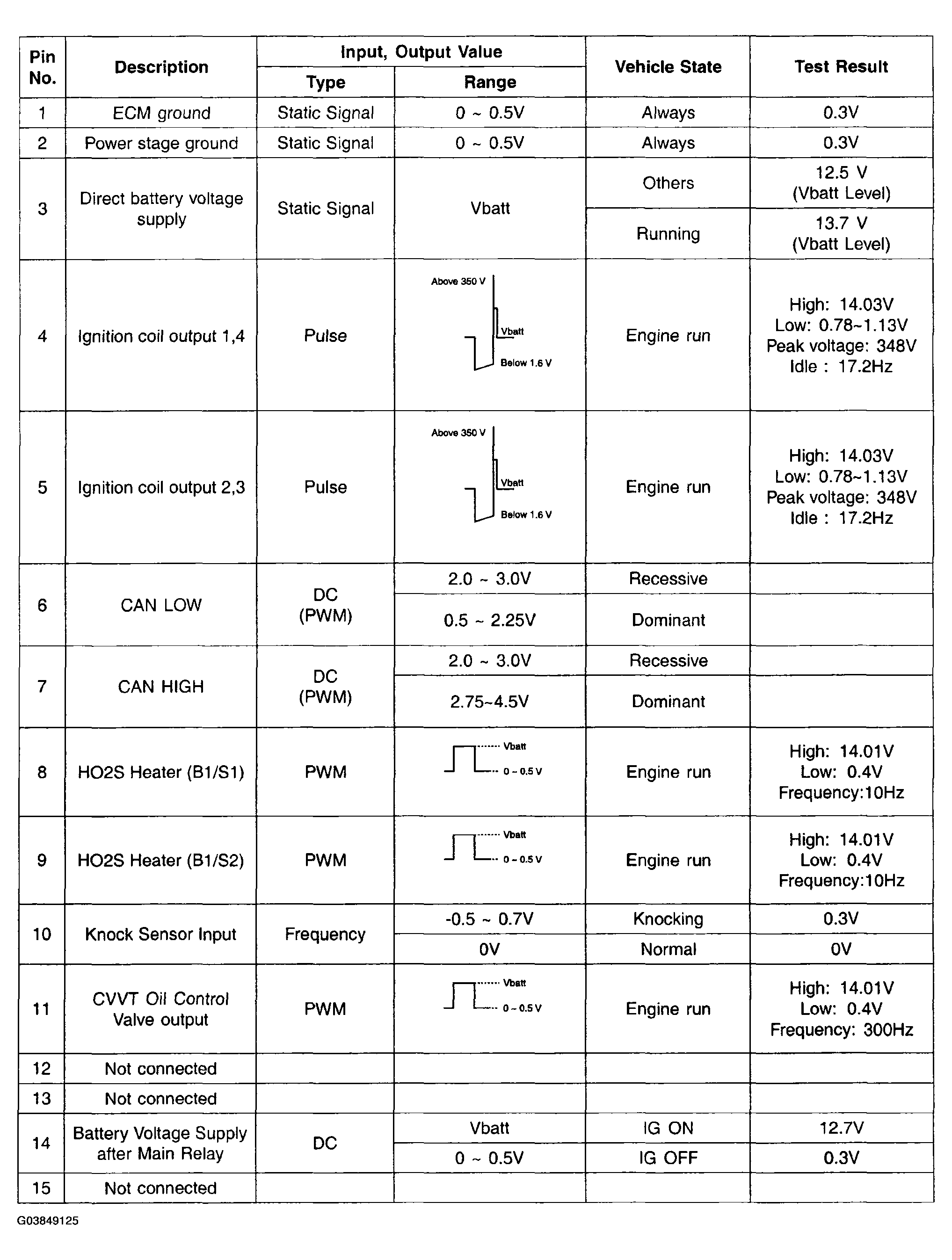

Fig 1: ECM Terminal Input/Output Signal Description Chart (Pin No. 1-15)

Courtesy of HYUNDAI MOTOR CO.

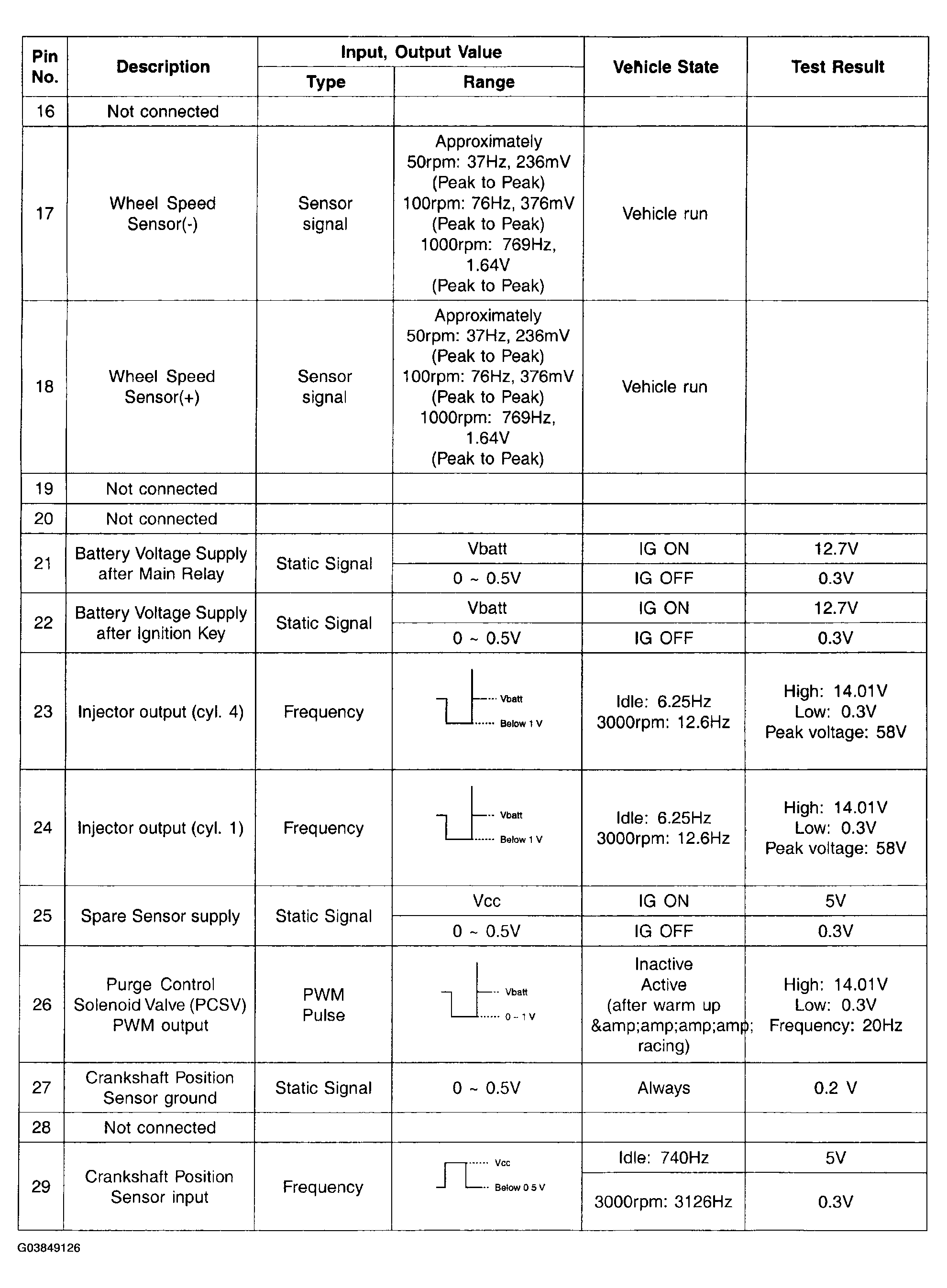

Fig 2: ECM Terminal Input/Output Signal Description Chart (Pin No. 16-29)

Courtesy of HYUNDAI MOTOR CO.

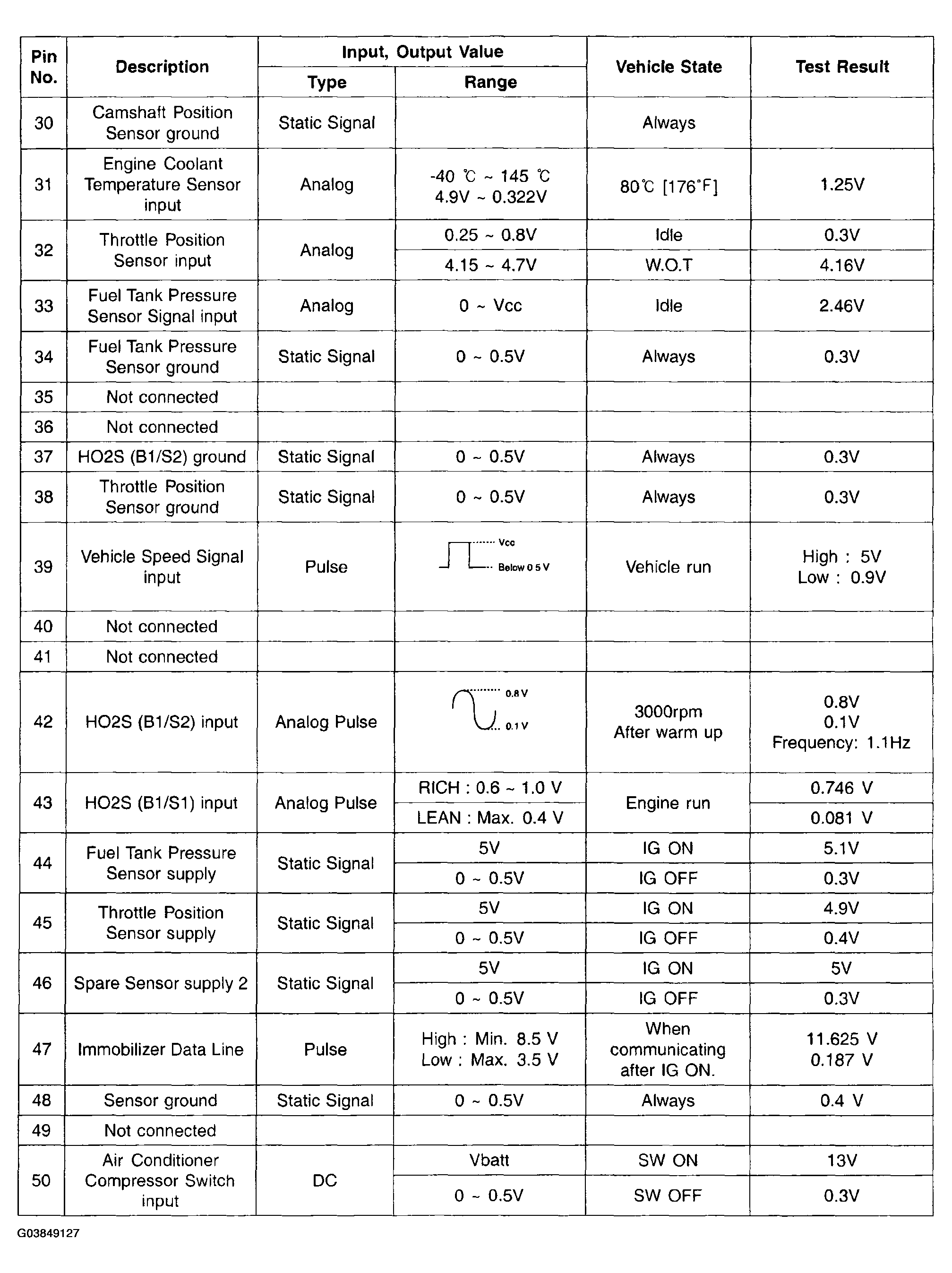

Fig 3: ECM Terminal Input/Output Signal Description Chart (Pin No. 30-50)

Courtesy of HYUNDAI MOTOR CO.

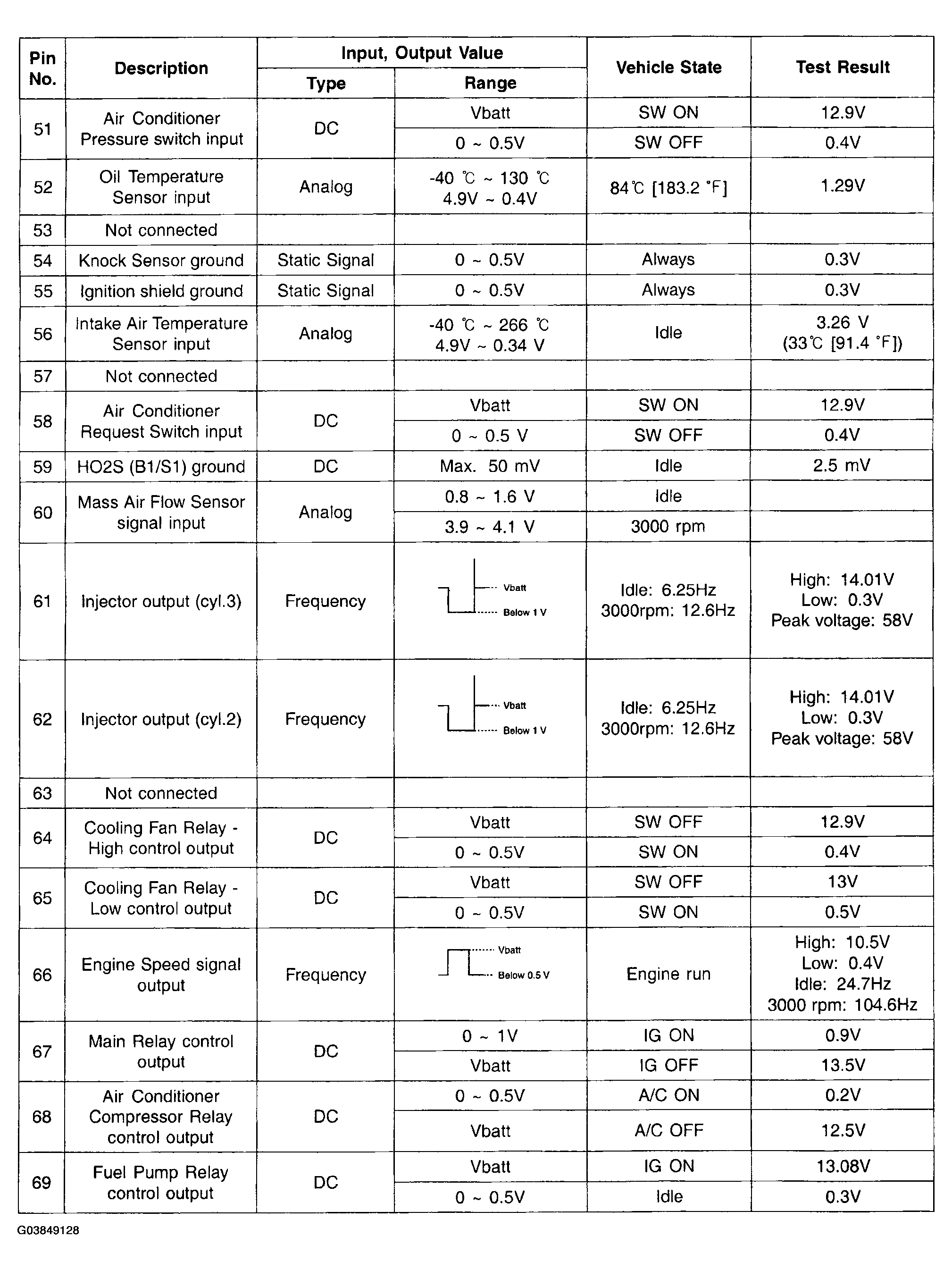

Fig 4: ECM Terminal Input/Output Signal Description Chart (Pin No. 51-69)

Courtesy of HYUNDAI MOTOR CO.

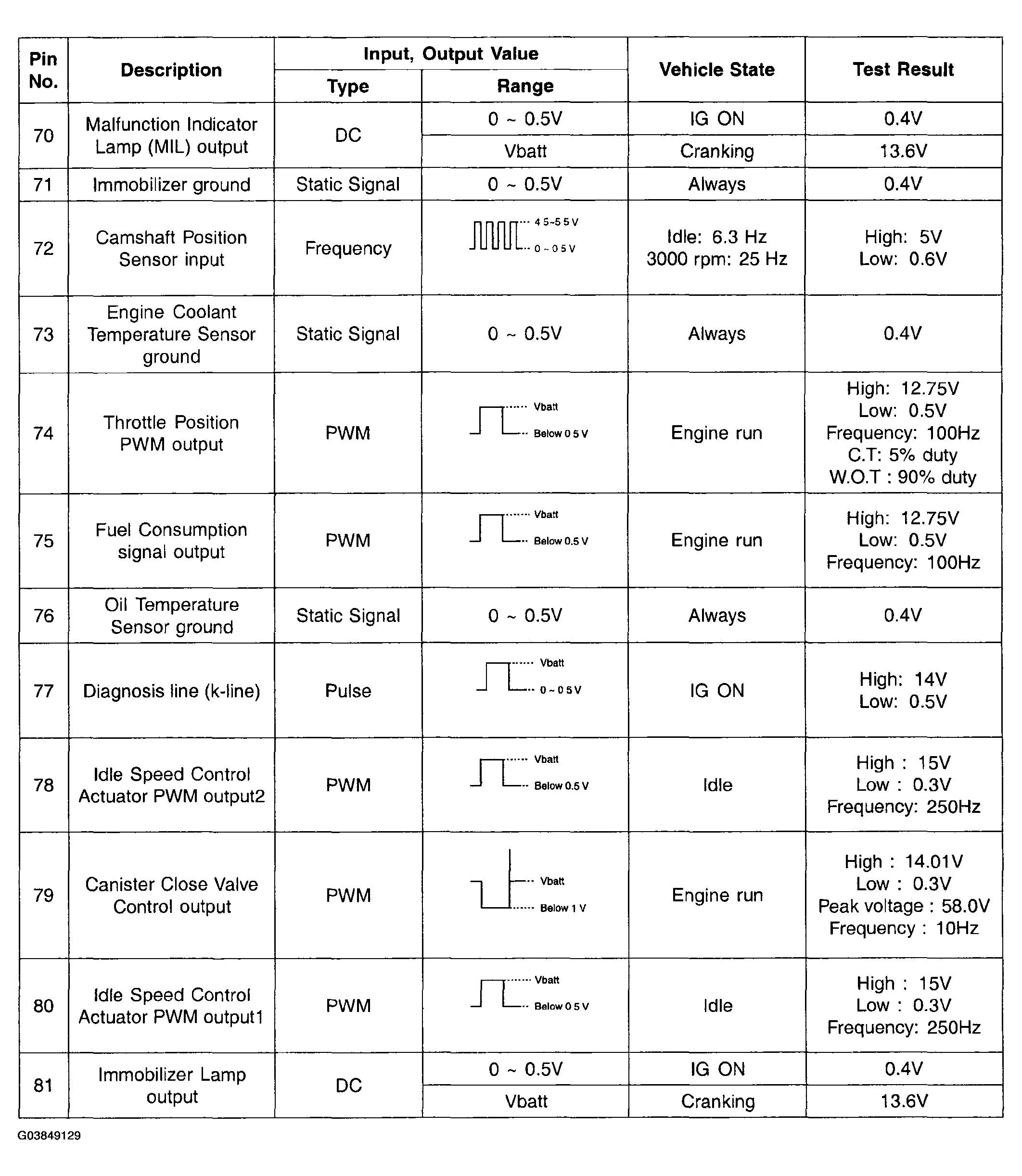

Fig 5: ECM Terminal Input/Output Signal Description Chart (Pin No. 70-81)

Courtesy of HYUNDAI MOTOR CO.
