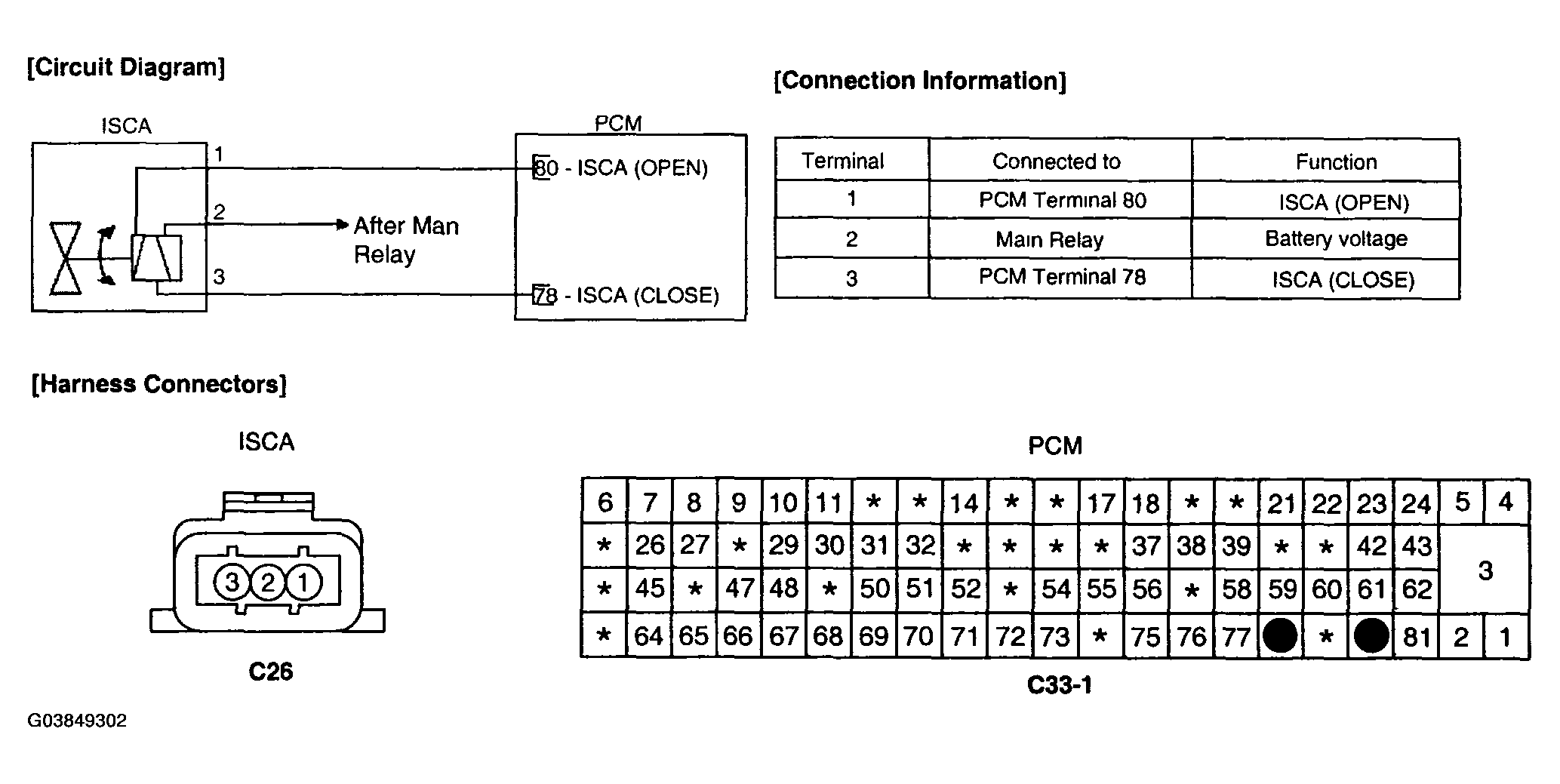

Home › Hyundai › 2007 › Tiburon GS, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G4GC-GSL 2.0L) › DTC Troubleshooting Procedures › DTC P0506 Idle Air Control System-Rpm Lower Than Expected › Schematic Diagram
