Automatic Transaxle Shift Control: Components

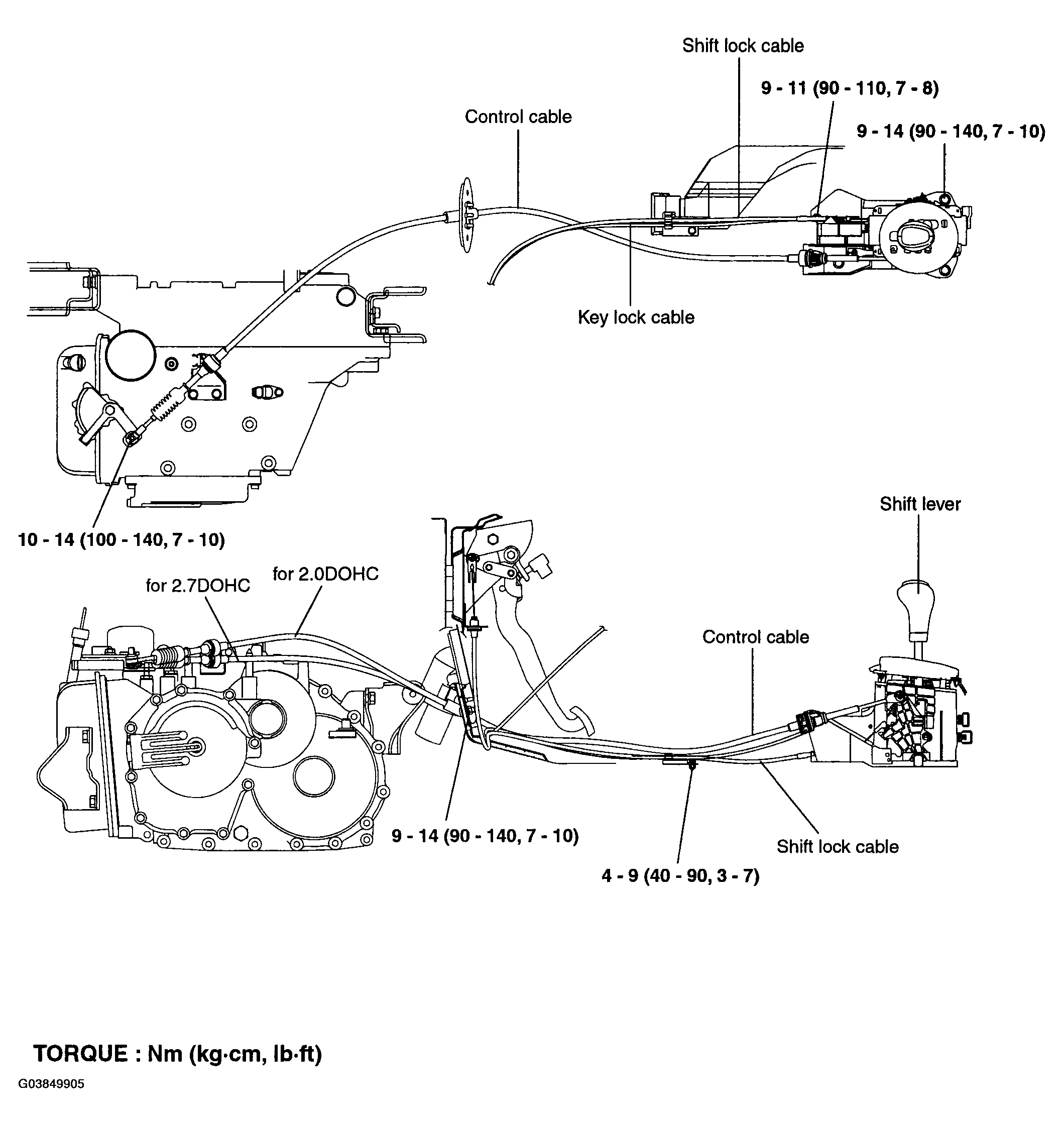

Fig 1: Automatic Transaxle Shift Control Components With Torque Specifications
G03849905Courtesy of HYUNDAI MOTOR CO.
