Automatic Transaxle: Components

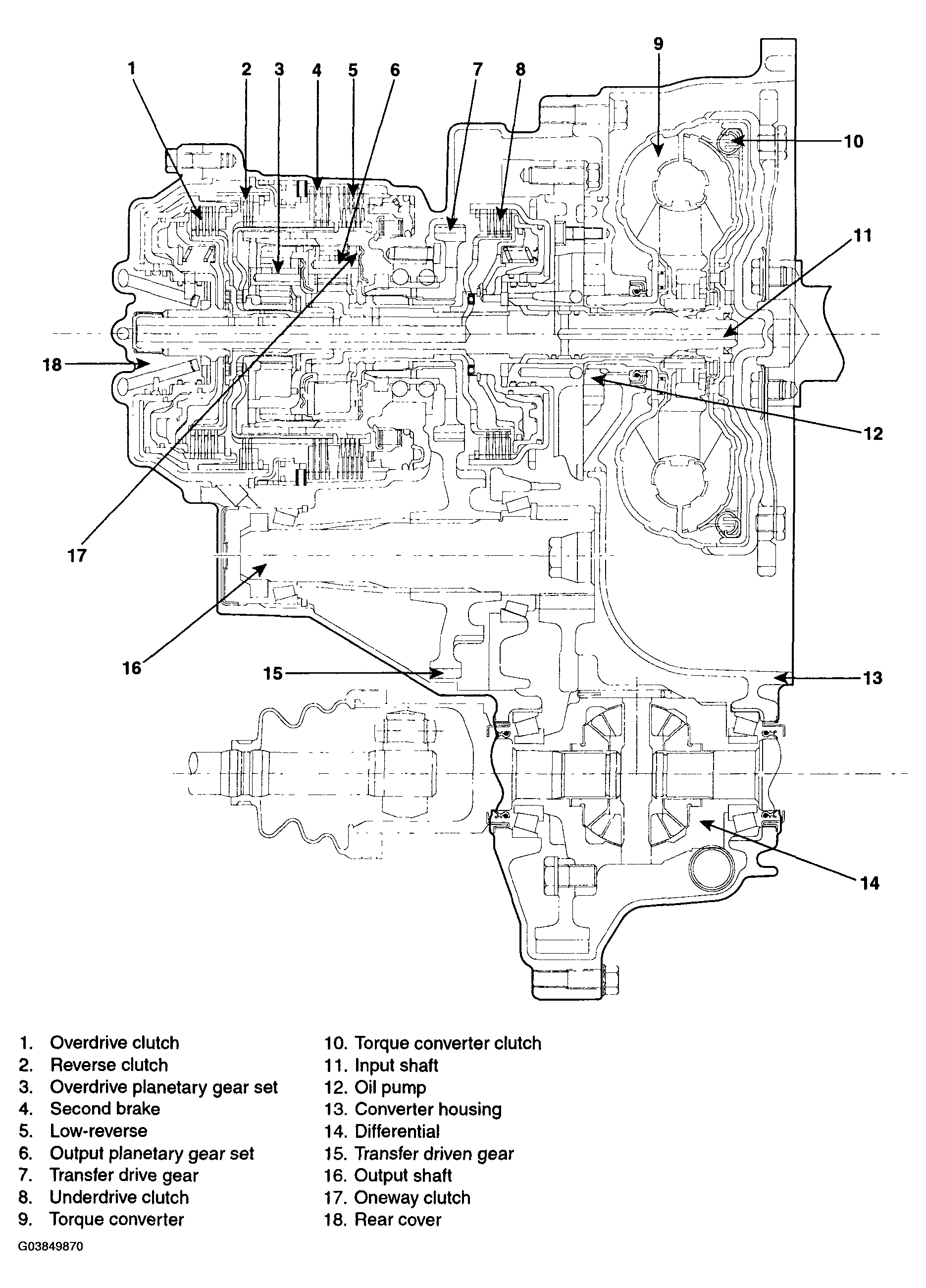

Fig 1: Identifying Automatic Transaxle Components
G03849870Courtesy of HYUNDAI MOTOR CO.
