A/T Control Component Check

THROTTLE POSITION SENSOR CHECK
The TPS is a variable resistor type that rotates with the throttle body shaft to sense the throttle valve angle. As the throttle shaft rotates, the output voltage of the TPS changes. The ECM detects the throttle valve opening based on voltage change. (Refer to ENGINE CONTROL MODULE (ECM) ).

OIL TEMPERATURE SENSOR CHECK

Remove the oil temperature sensor.
Measure the resistance between terminals 1 and 2 of the oil temperature sensor connector.

OIL TEMPERATURE SENSOR STANDARD VALUE

Oil temperature (°C)	Resistance (KΩ)
0	16.7 ~ 20.5
100	0.57 ~ 0.69

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of Oil Temperature Sensor Connector

Courtesy of HYUNDAI MOTOR CO.

VEHICLE SPEED SENSOR CHECK
1. Remove the vehicle speed sensor and connect a 3~10 KΩ resistance as shown in the illustration.
2. Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 2-3 (1 turn = 4 pulses).
Fig 2: Vehicle Speed Sensor Check
Courtesy of HYUNDAI MOTOR CO.

A/T CONTROL RELAY CHECK

Remove the A/T control relay.
Use jumper wires to connect A/T control relay terminal 2 to the battery (+) terminal and terminal 4 to the battery (-) terminal.
Check the continuity between terminal 1 and terminal 3 of the A/T control relay when the jumper wires are connected and disconnected from the battery.
If there is a problem, replace the A/T control relay.

CHECKING A/T CONTROL RELAY CONTINUITY

Jumper wire	Continuity between terminals No. 1 & 3
Connected	Continuity
Disconnected	No continuity

Fig 3: Using Jumper Wires To Connect A/T Control Relay Terminal 2 To Battery (+) Terminal & Terminal 4 To Battery (-) Terminal

Courtesy of HYUNDAI MOTOR CO.

SOLENOID VALVE CHECK

Remove the valve body cover.
Disconnect the connectors of each solenoid valve.

Fig 4: Disconnecting Solenoid Valve Connectors
Courtesy of HYUNDAI MOTOR CO.

Measuring resistance between terminals 1 and 2 of each solenoid valve.

STANDARD VALUE

SOLENOID VALVE STANDARD VALUE

Name	Resistance
Damper clutch solenoid valve	2.7 ~ 3.4 Ω (at 20°C)
Low and reverse solenoid valve
Second solenoid valve
Underdrive solenoid valve
Overdrive solenoid valve

Fig 5: Measuring Resistance Between Terminals 1 & 2 Of Each Solenoid Valve

Courtesy of HYUNDAI MOTOR CO.

NOTE: Resistance of the solenoid valve connector.

SOLENOID VALVE RESISTANCE

Terminal No.	Name	Resistance
7 & 10	Damper clutch solenoid valve	2.7 ~ 3.4 Ω (at 20°C)
10 & 6	Low and reverse solenoid valve
9 & 4	Second solenoid valve
9 & 3	Underdrive solenoid valve
9 & 5	Overdrive solenoid valve

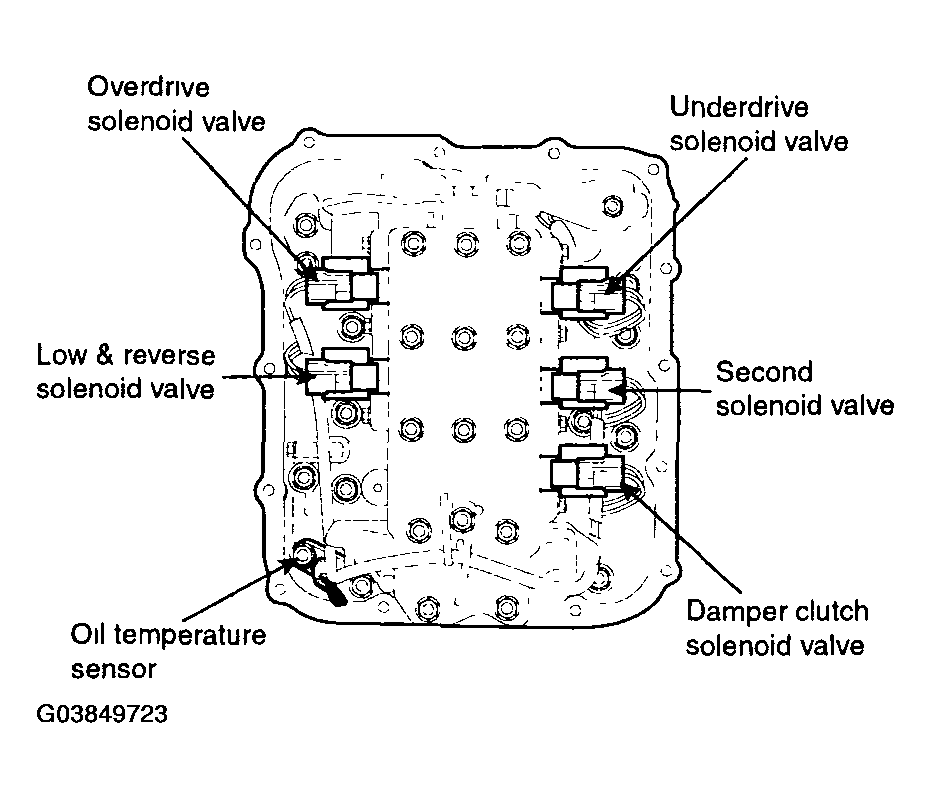

Fig 6: Identifying Solenoid Valve Connector

Courtesy of HYUNDAI MOTOR CO.
