Transaxle Range Switch Continuity Check

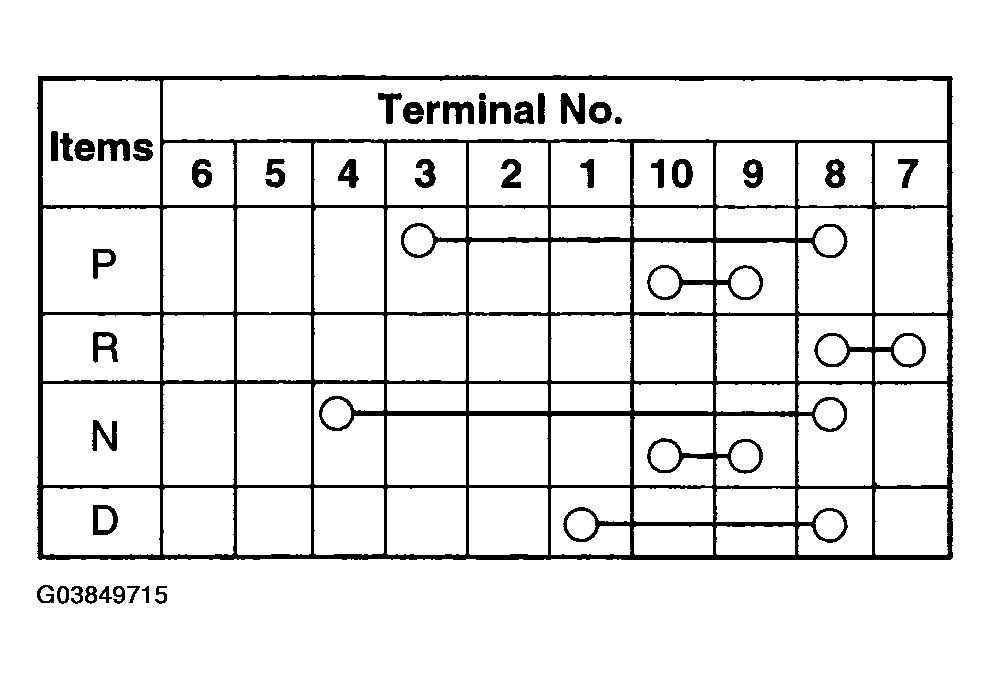

Fig 1: Transaxle Range Switch Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Checking Transaxle Range Switch Continuity

Courtesy of HYUNDAI MOTOR CO.
