Transmitter Code Registration

Connect the DLC cable of hi-scan to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on hi-scan.

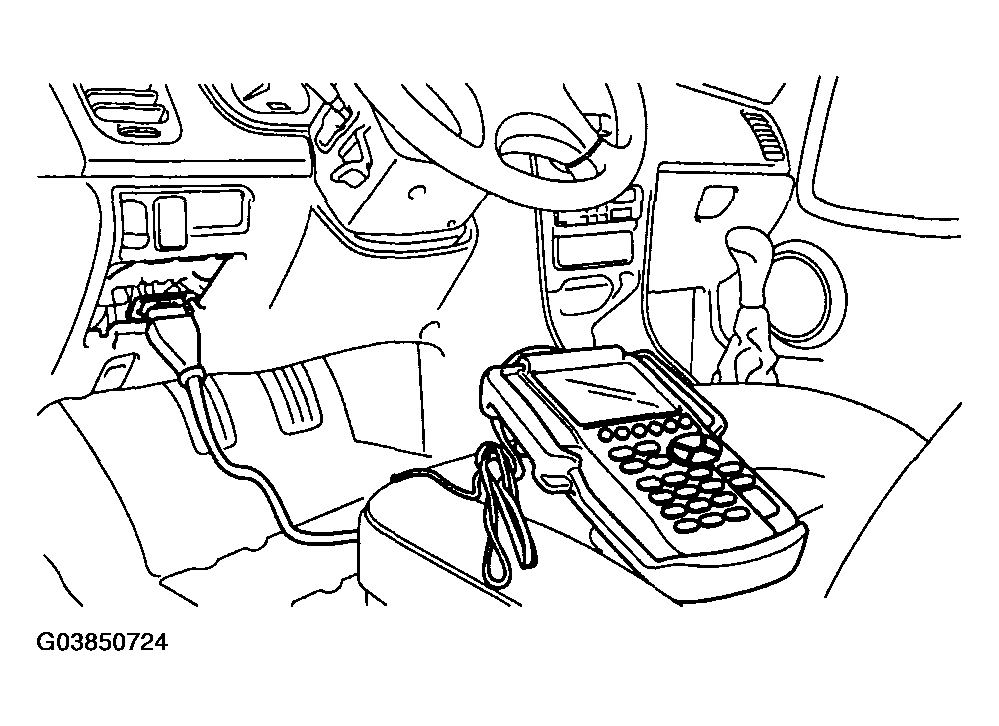

Fig 1: Connecting DLC Cable Of Hi-Scan To Data Link Connector (16 Pins) In Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "CODE SAVING".

Fig 2: Identifying selecting "CODE SAVING"
Courtesy of HYUNDAI MOTOR CO.
After selecting "CODE SAVING" menu button "ENTER" key, then the screen will be shown as below.

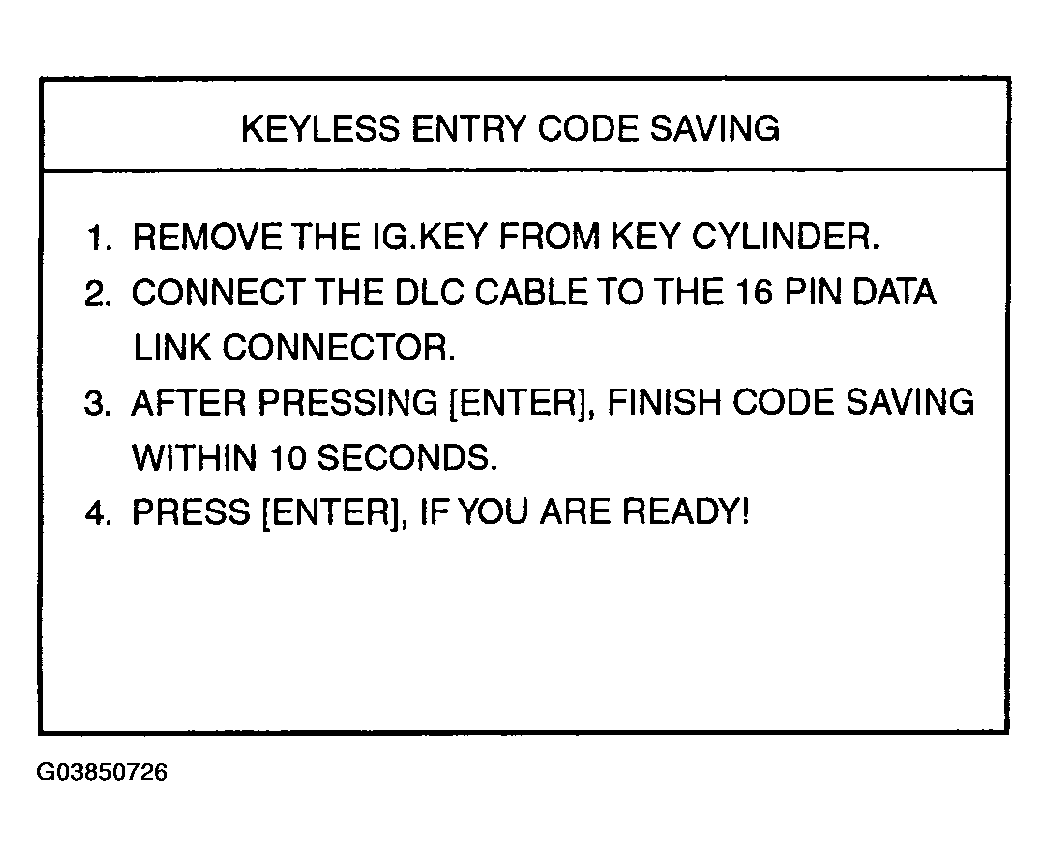

Fig 3: Keyless Entry Code Saving Display (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 3 and then code saving is completed.

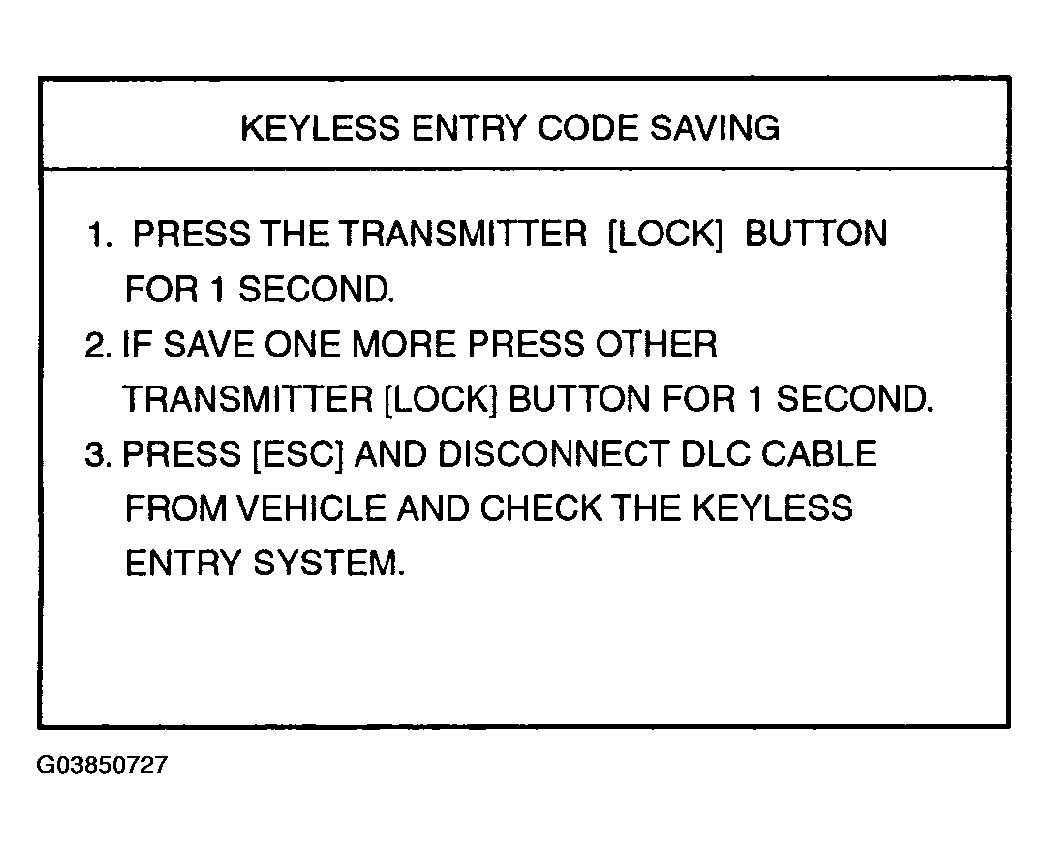

Fig 4: Keyless Entry Code Saving Display (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Take care when you remove the diagnostic tool connector. Don' t remove it with holding the wiring by hand. Please hold the body of it.
