Front Hub/Knuckle: Components

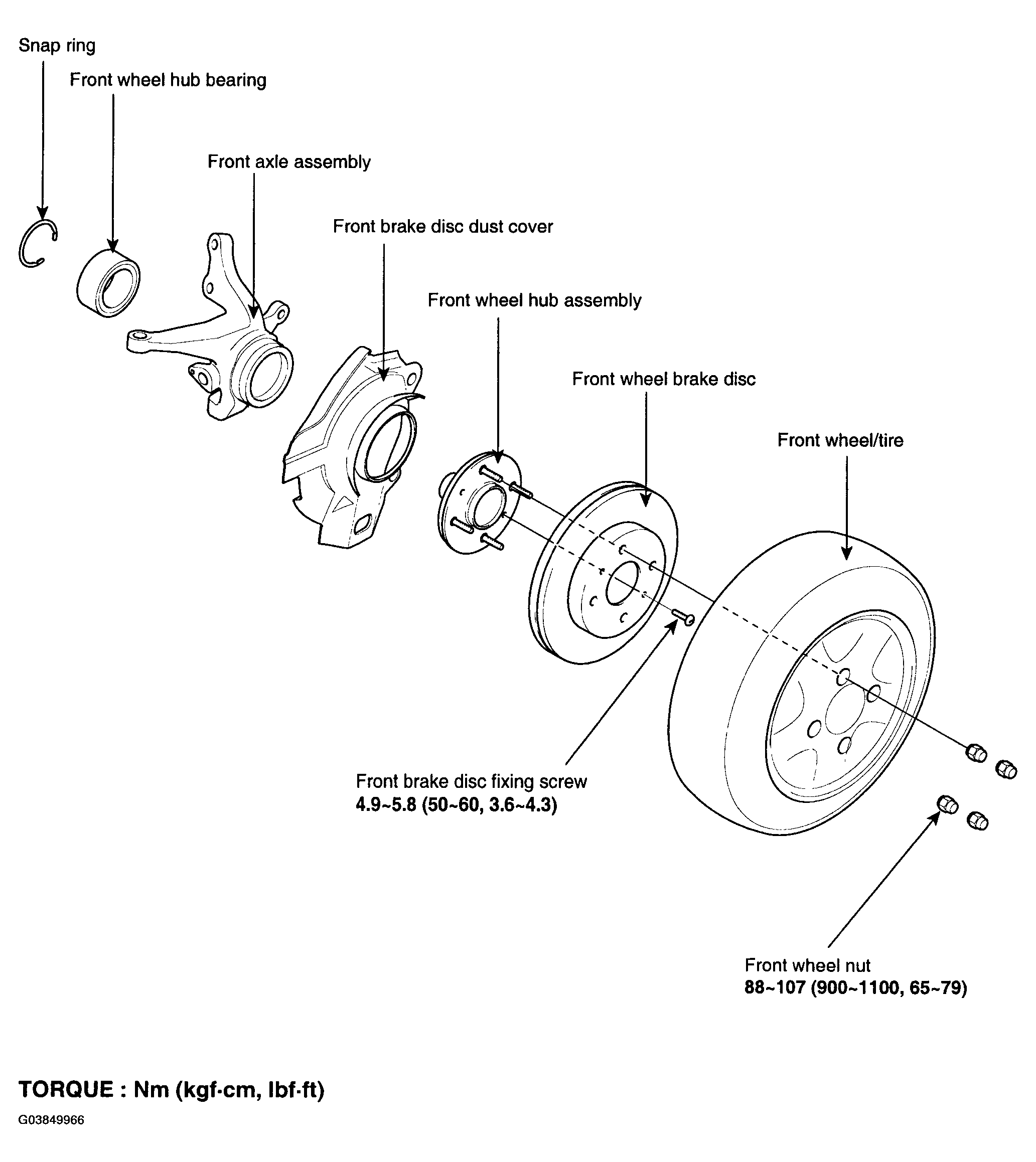

Fig 1: Front Hub/Knuckle Replacement Components With Torque Specifications
G03849966Courtesy of HYUNDAI MOTOR CO.
