Starter Solenoid Test: Notes

Check the hold-in coil for continuity between the S terminal and the armature housing (ground). The coil is OK if there is continuity.

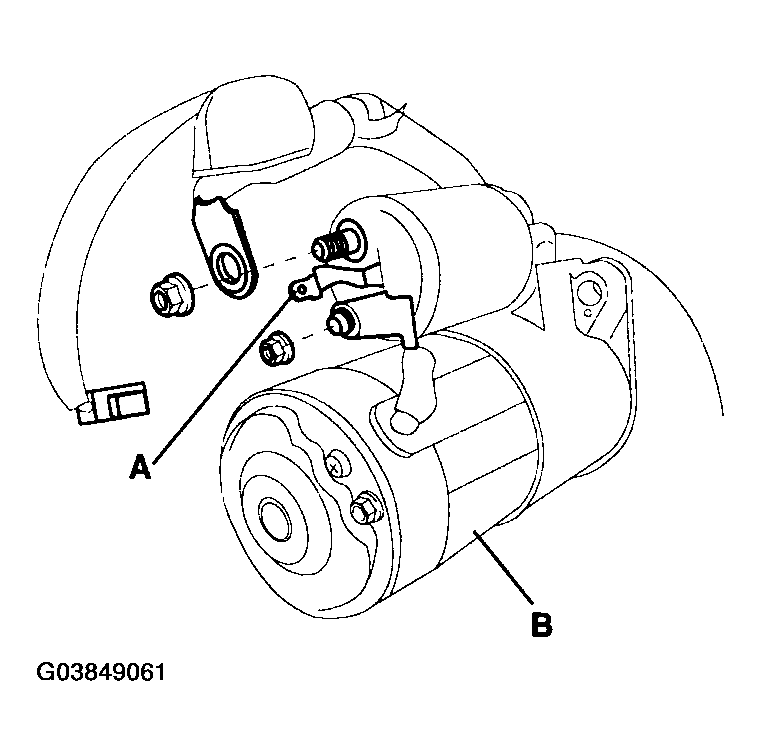

Fig 1: Checking Hold-In Coil For Continuity Between S Terminal And Armature Housing (Ground)
Courtesy of HYUNDAI MOTOR CO.
Check the pull-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.
