Fuel System (G6BA-GSL 2.7L)
›
Gasoline Engine Control System
›
Components Location
Components Location

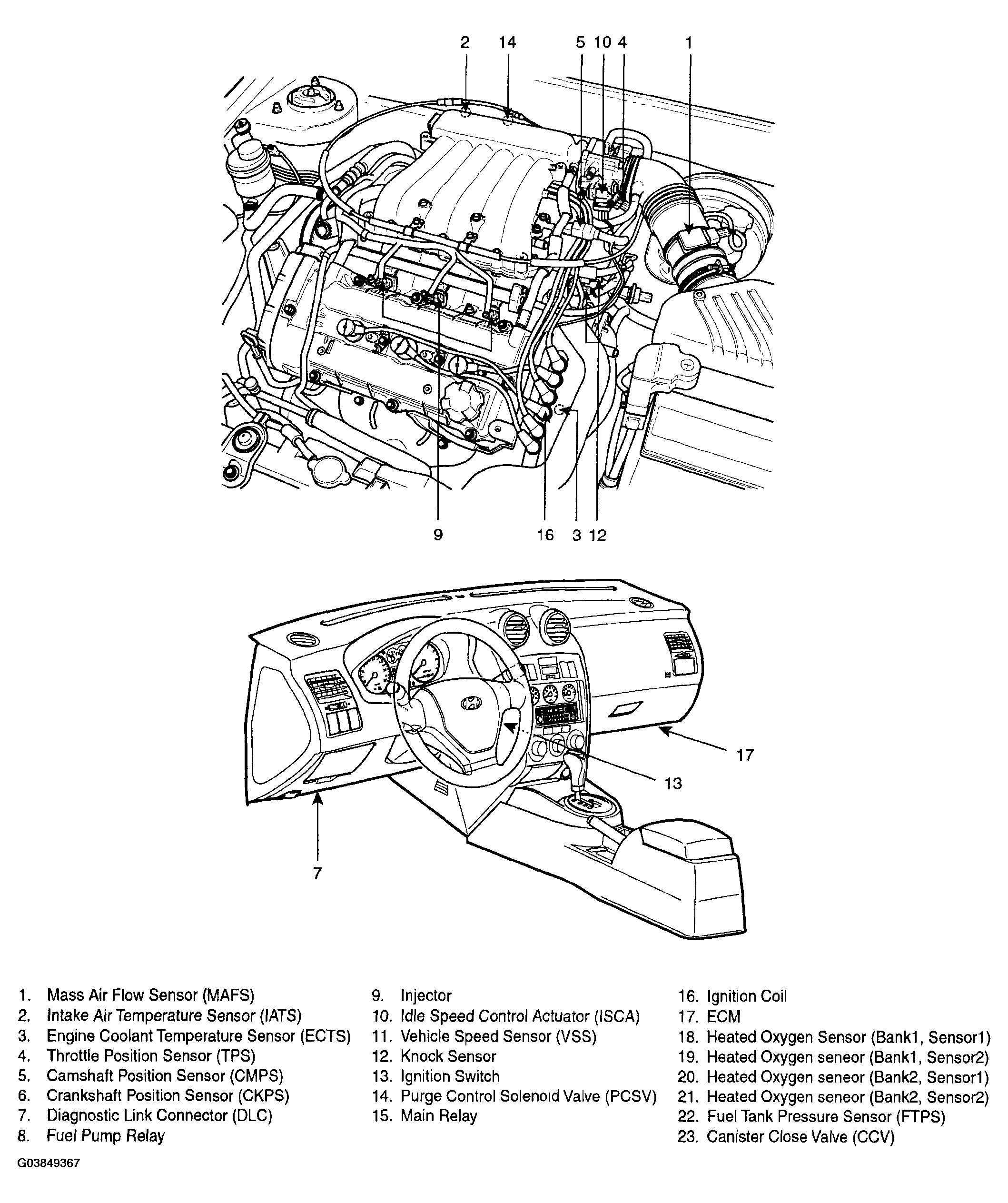

Fig 1: Identifying Fuel System Components Location
Courtesy of HYUNDAI MOTOR CO.

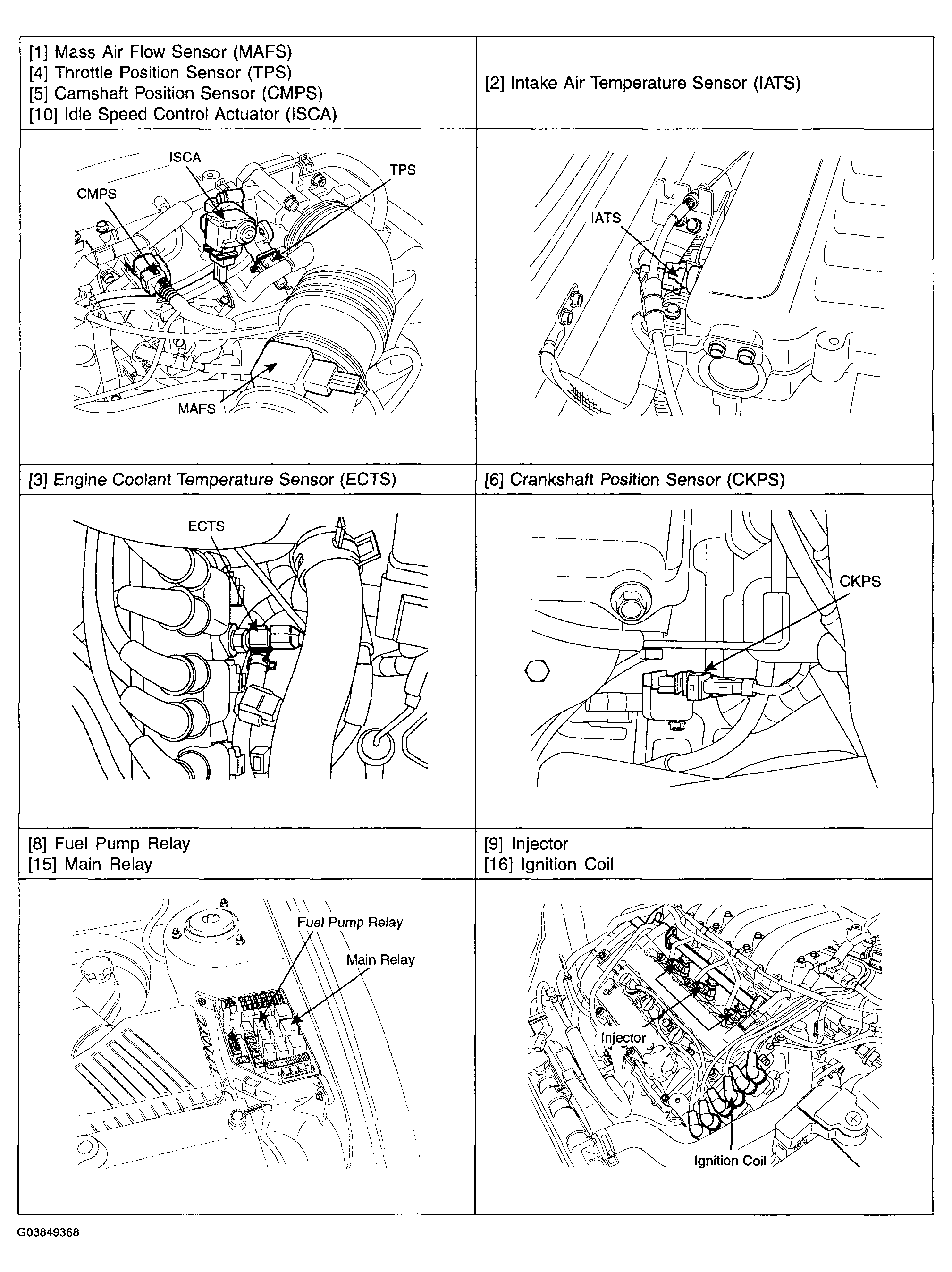

Fig 2: Identifying Fuel System Relay And Sensors (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

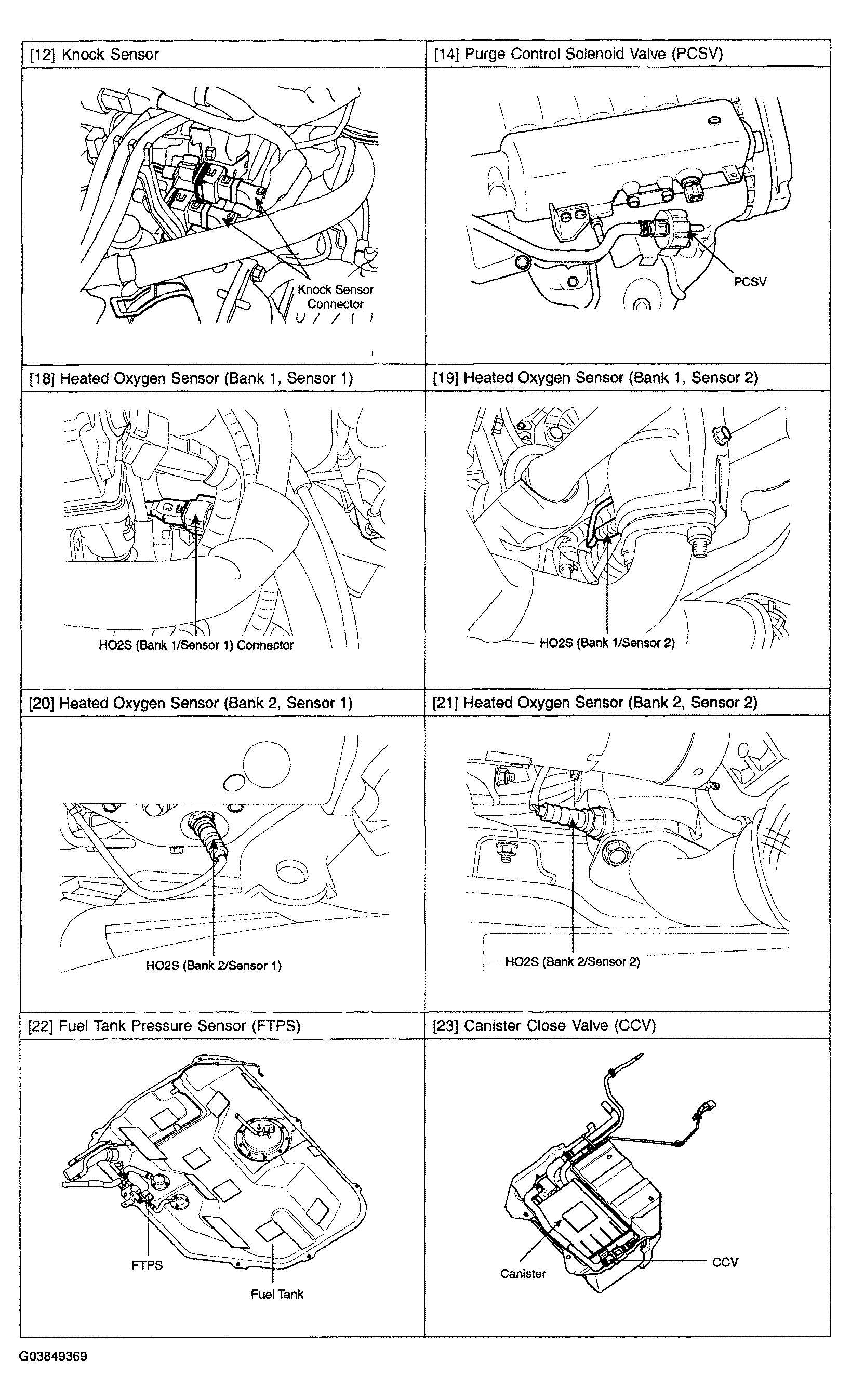

Fig 3: Identifying Fuel System Relay And Sensors (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
