Home › Hyundai › 2007 › Tiburon SE › Repair and Diagnosis › Steering › Mechanical Power Steering System › Power Steering Gear Box › Components

Power Steering Gear Box: Components

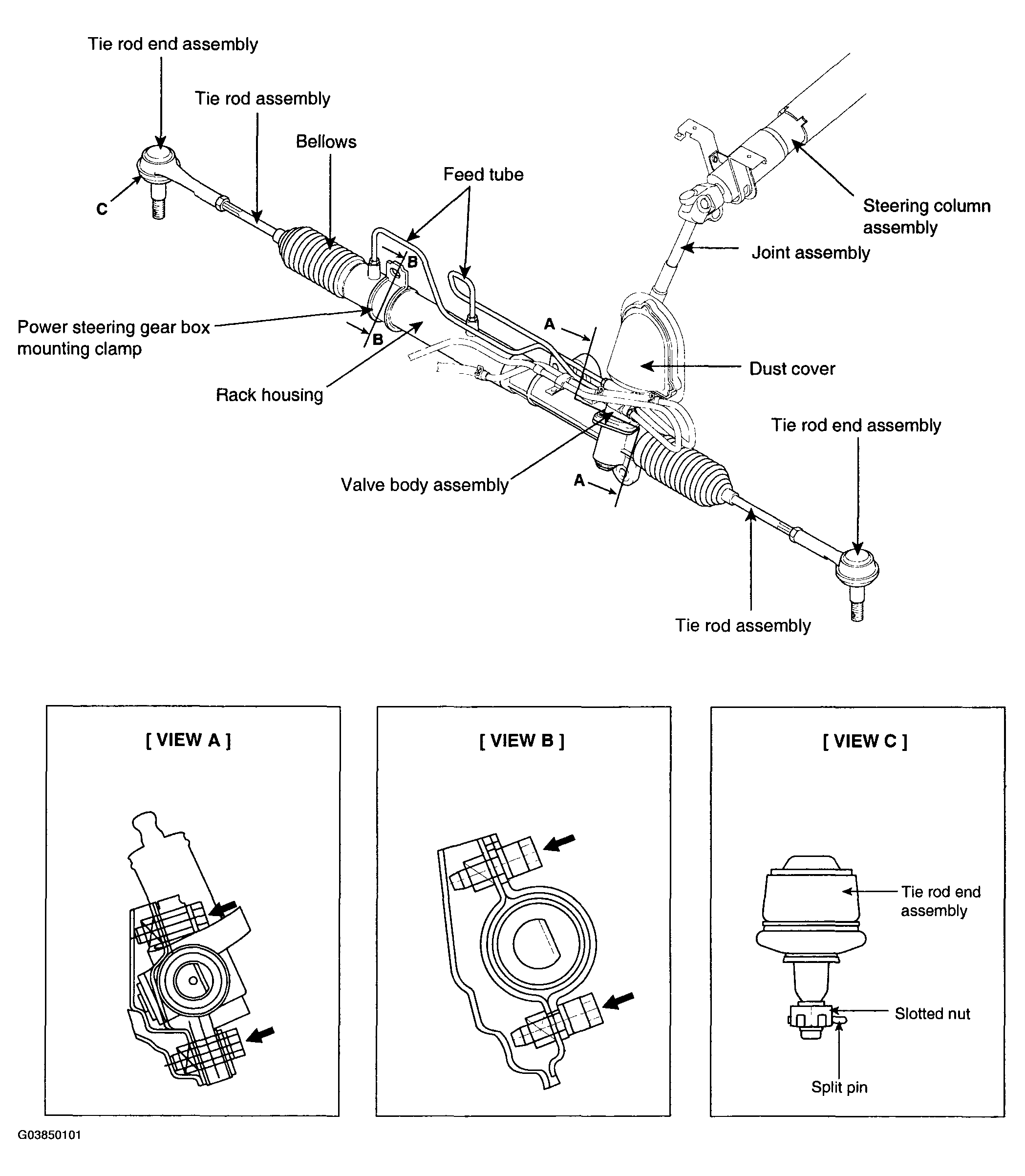

Fig 1: Identifying Power Steering Gear Box Components
G03850101Courtesy of HYUNDAI MOTOR CO.
