Front Strut Assembly: Disassembly

  1. Using the special tools (09546-26000 or J38402), compress the coil spring until there is only a little tension on the strut.
    NOTE: Do not use an impact gun.

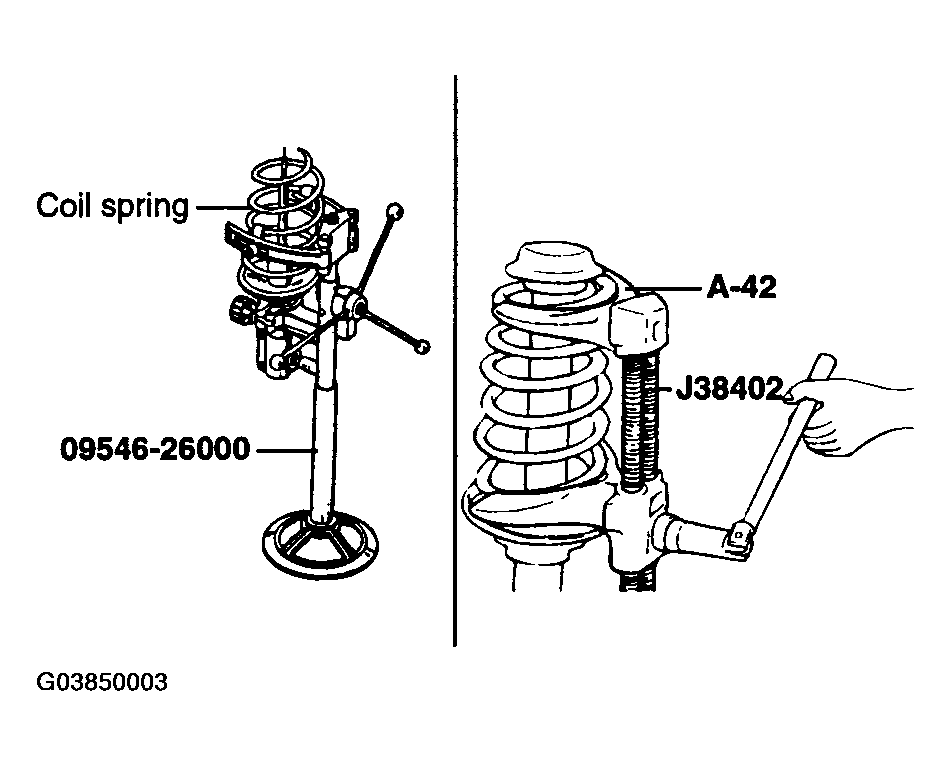

    Fig 1: Compressing Coil Spring Using Special Tools
    G03850003Courtesy of HYUNDAI MOTOR CO.
  2. Remove the nut at the top end of shock absorber.
  3. Remove the insulator, spring seat, coil spring, dust cover from the strut assembly.
