Front Strut Assembly: Installation

When installing the front strut, be sure to clear the connecting surface.
Install the strut assembly so the identification label on the strut insulator faces toward the inside of vehicle.

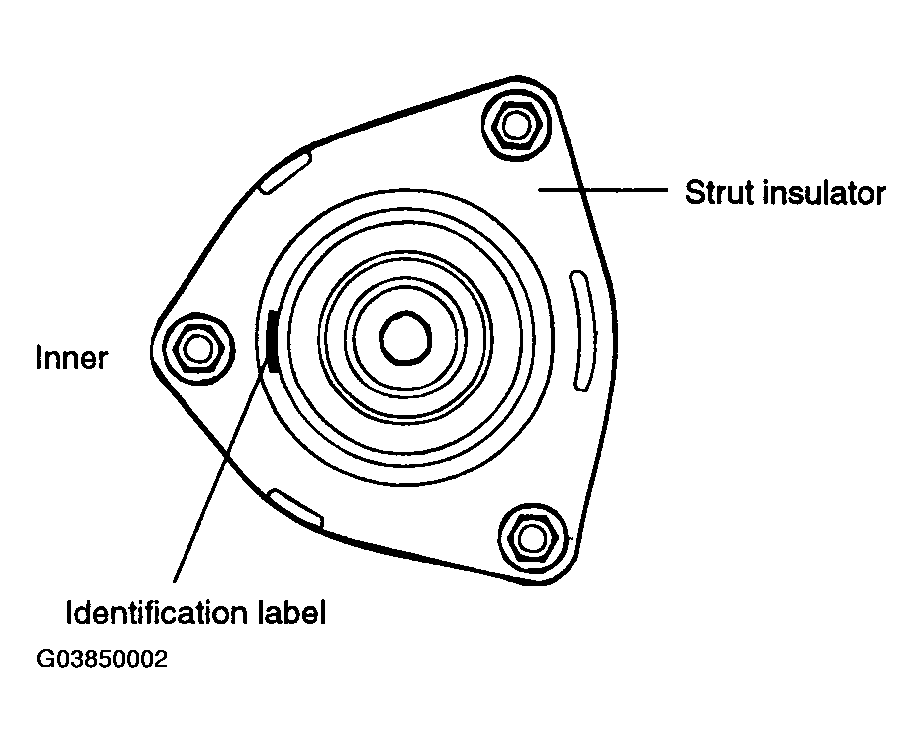

Fig 1: Locating Identification Label
Courtesy of HYUNDAI MOTOR CO.

Tighten the components below to the specified torque as follows.

TORQUE SPECIFICATION TABLE

Items	Torque Nm (kgf.cm, lbf.ft)
Front strut upper mounting nut	45~60 (450~600, 33~44)
Front strut to knuckle	140~160 (1400~1600, 104~118)
Stabilizer link nut	35~45 (350~450, 26~33)

Install the brake hose and front wheel speed sensor wire on the front strut assembly.
