Front Strut Assembly: Removal

Remove the front wheel.
Detach the brake hose bracket from the strut assembly.
NOTE: Do not apply excessive force to the components.
Remove the stabilizer link.

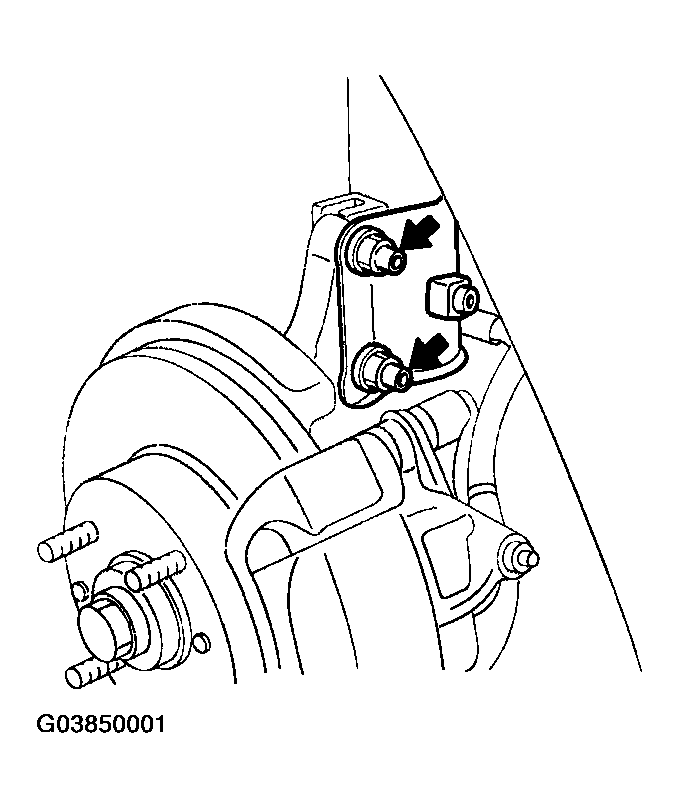

Fig 1: Removing Stabilizer Link
Courtesy of HYUNDAI MOTOR CO.
Remove the strut upper mounting bolts(3).

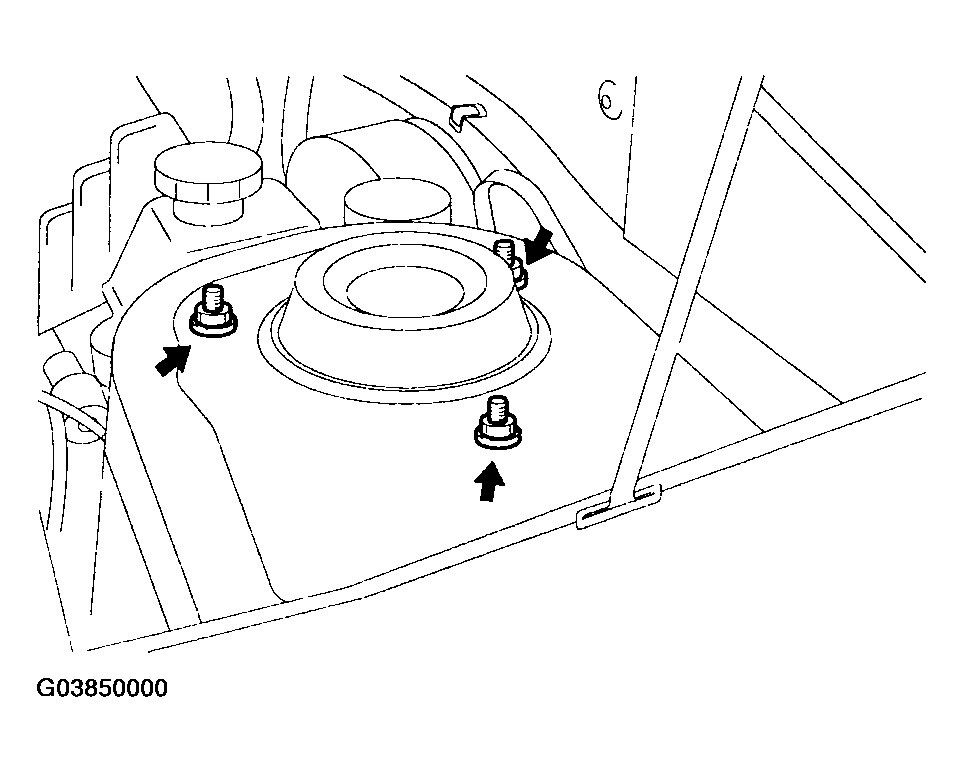

Fig 2: Removing Strut Upper Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the strut assembly.

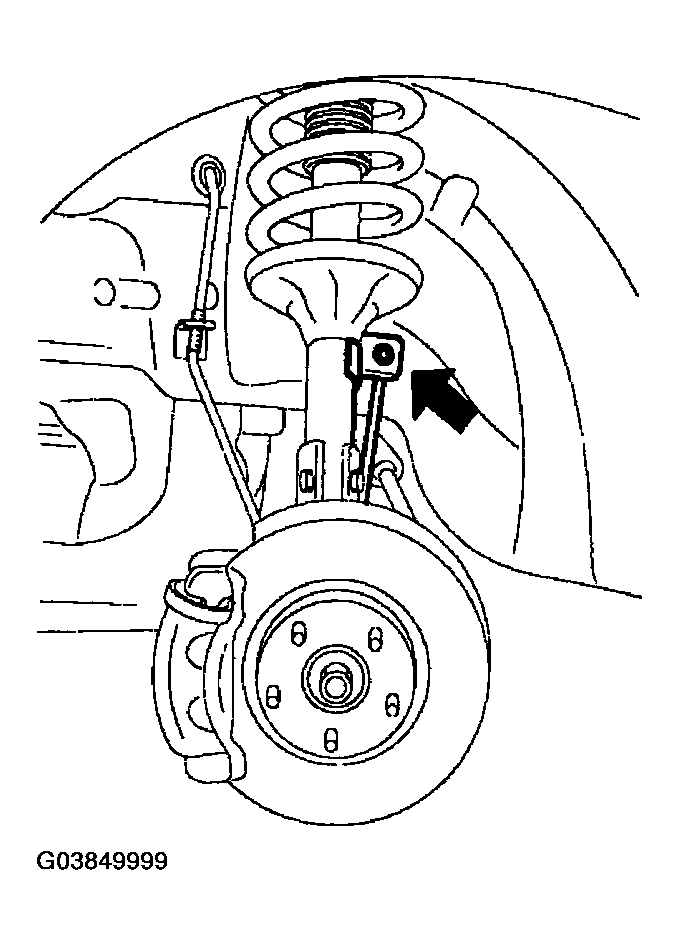

Fig 3: Removing Strut Assembly
Courtesy of HYUNDAI MOTOR CO.
