Rear Door Module Replacement

  1. Remove the door trim (See REMOVE REAR DOOR TRIM ).
  2. Remove the glass (See GLASS REPLACEMENT ).
  3. Remove the rear channel (See REAR CHANNEL REPLACEMENT ).

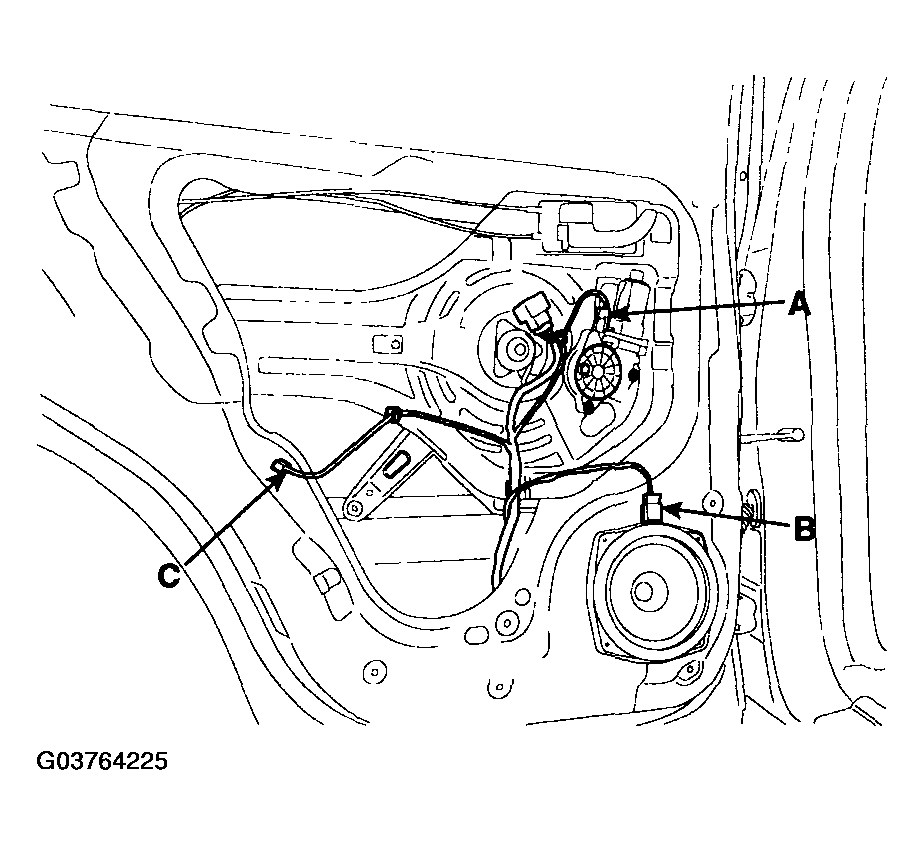

  4. Disconnect the power window motor connector (A), speaker connector (B) and actuator connector (C). Detach the harness clip.
    Fig 1: Identifying Power Window Motor Connector, Speaker Connector And Actuator Connector
    G03764225Courtesy of HYUNDAI MOTOR CO.

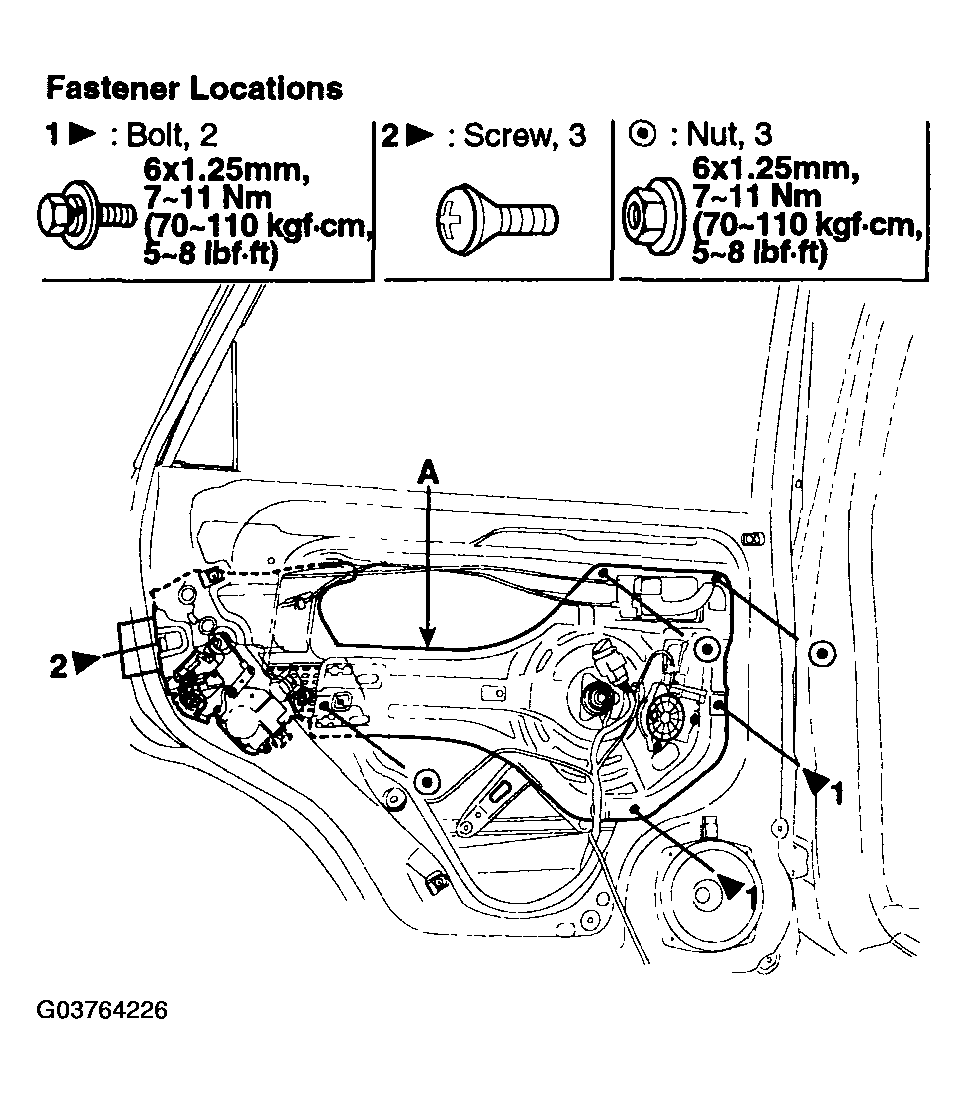

  5. Remove the door module assembly (A).
    Fig 2: Door Module Assembly (With Torque Specification)
    G03764226Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
    NOTE: Make sure the door locks and opens properly.
