Section 19 (Lighting System): Components

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

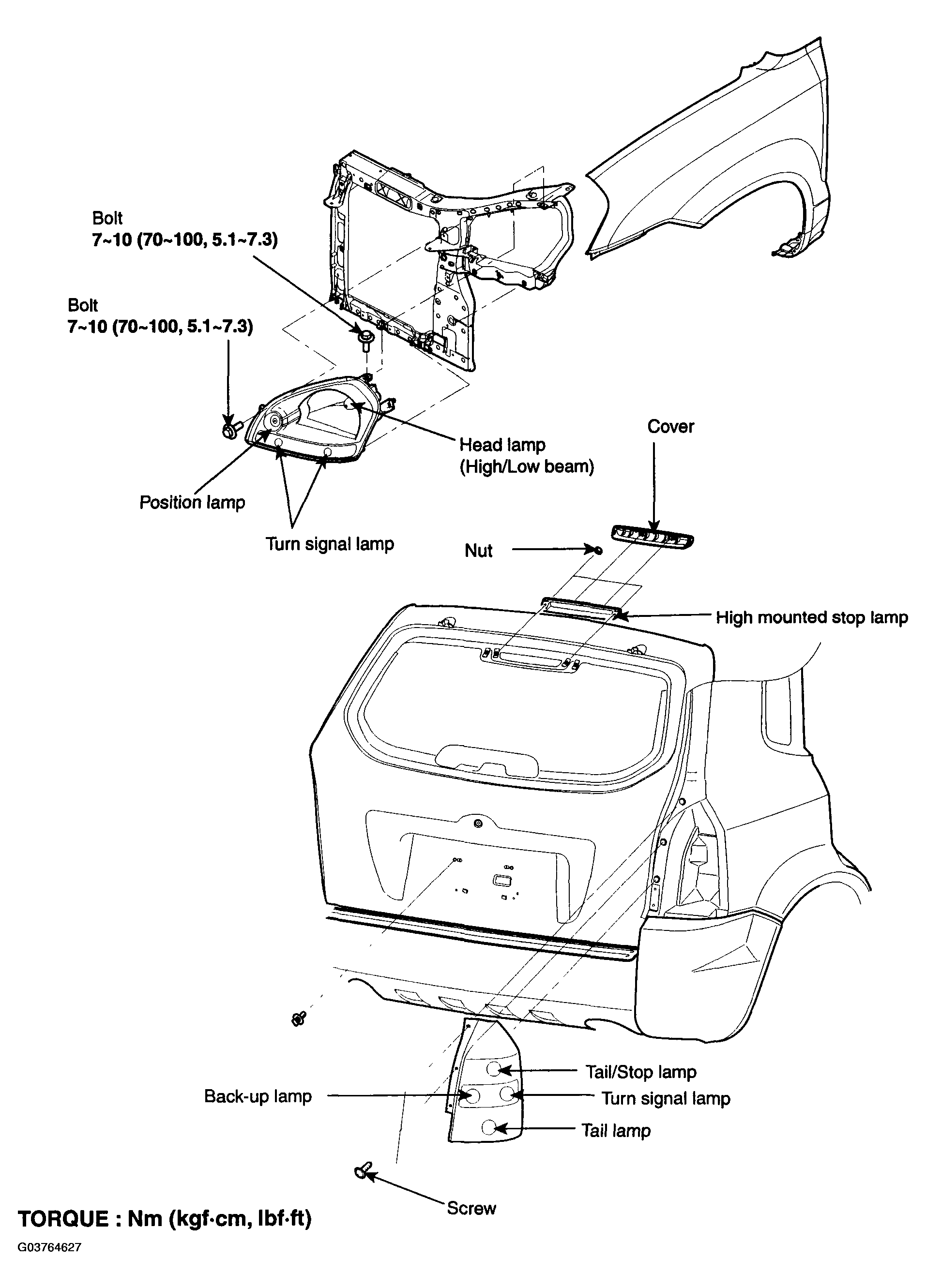

Fig 1: Lighting System Replacement Components -- With Torque Specifications

Courtesy of HYUNDAI MOTOR CO.
