Armrest Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Remove the end cover.
After loosening the armrest mounting screw, remove the armrest (A).
Installation is the reverse of removal.

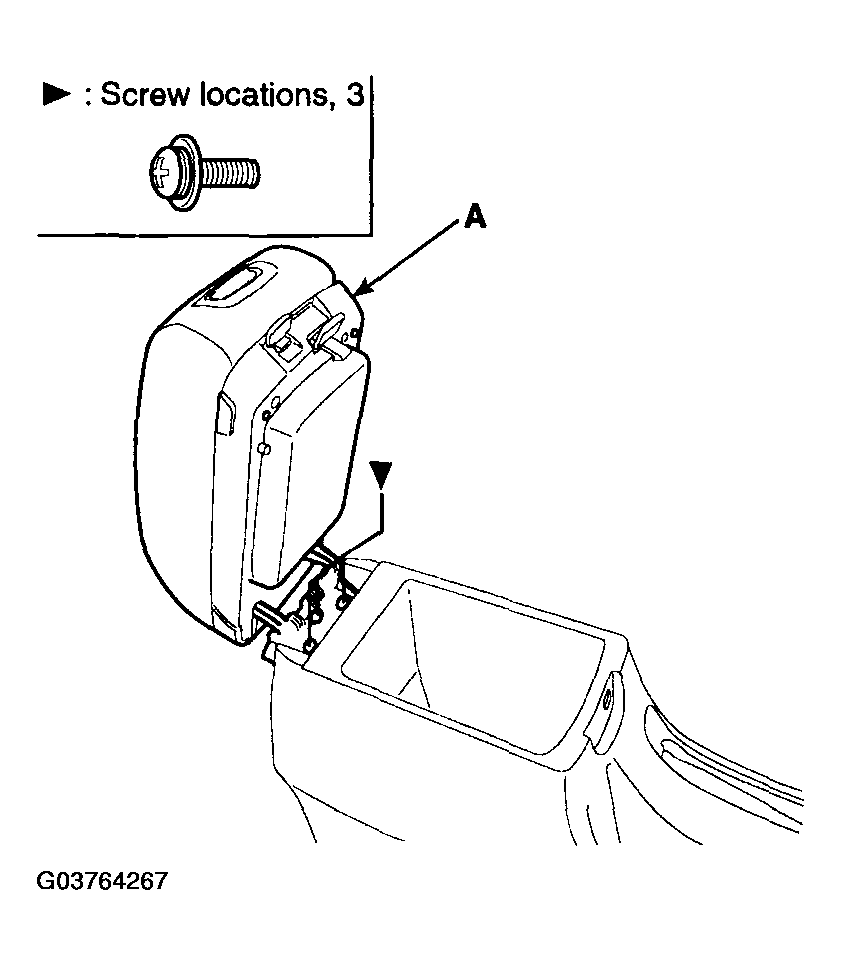

Fig 1: Removing Armrest
Courtesy of HYUNDAI MOTOR CO.
