Floor Console Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the end cover (A).

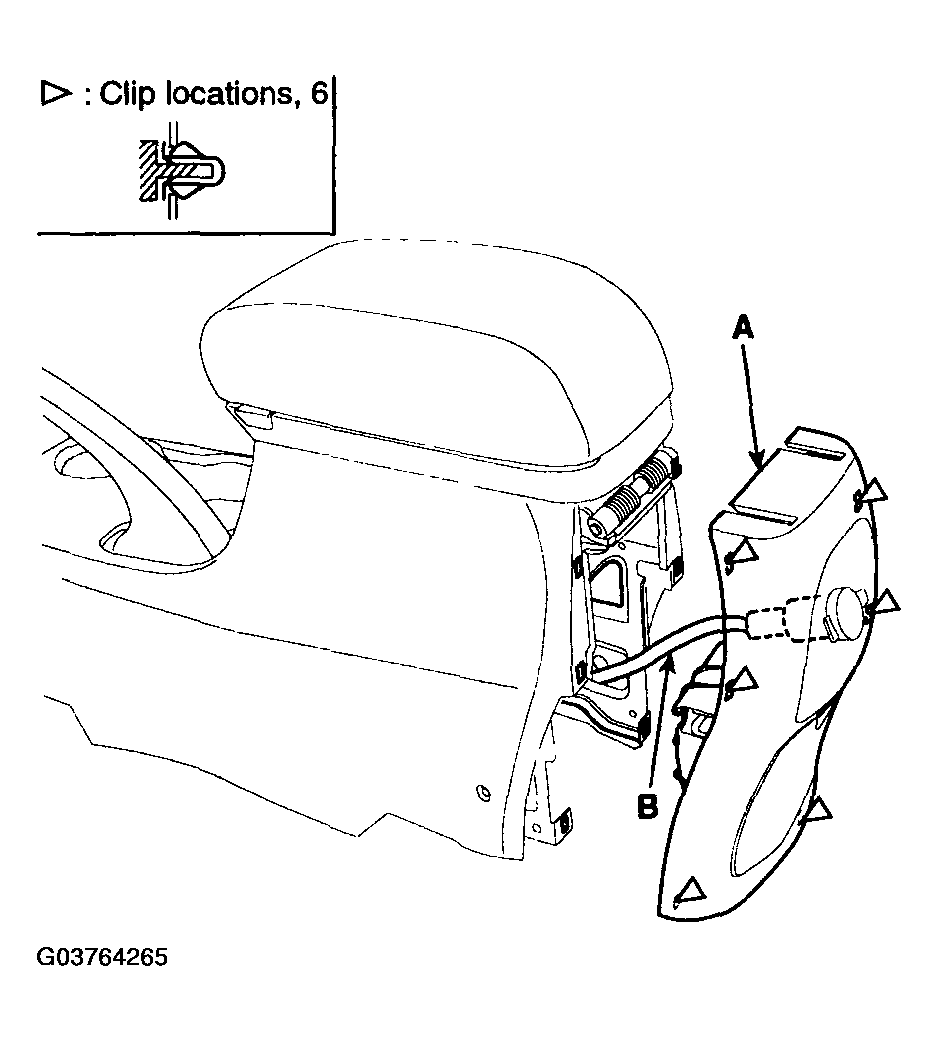

Fig 1: Removing End Cover
Courtesy of HYUNDAI MOTOR CO.
Loosen the console mounting bolts and nuts.
After disconnecting the seat warmer connector (A), remove the console assembly (B).

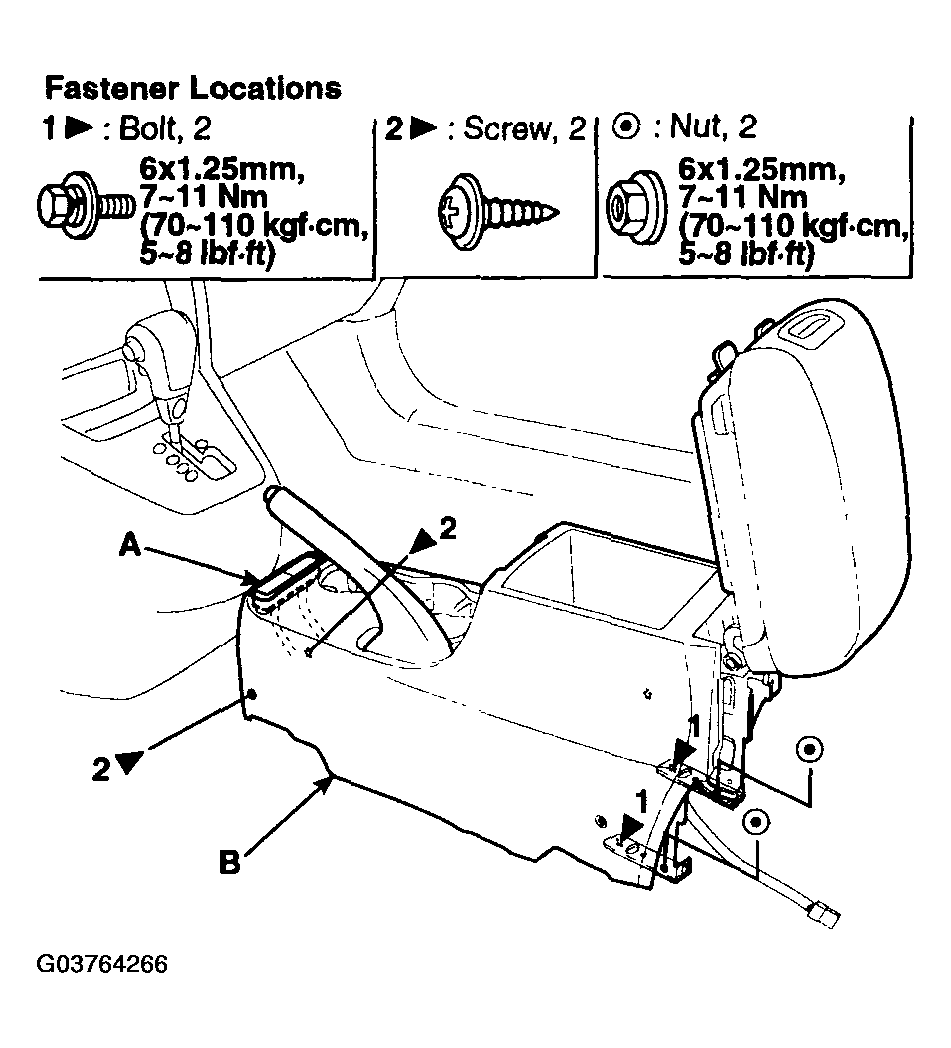

Fig 2: Removing/Installing Seat Warmer Connector And Console Assembly (With Torque Specification)
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
