Front Console Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the trim and other parts.

Remove the crash pad center lower cover (See AIR VENT REPLACEMENT ).

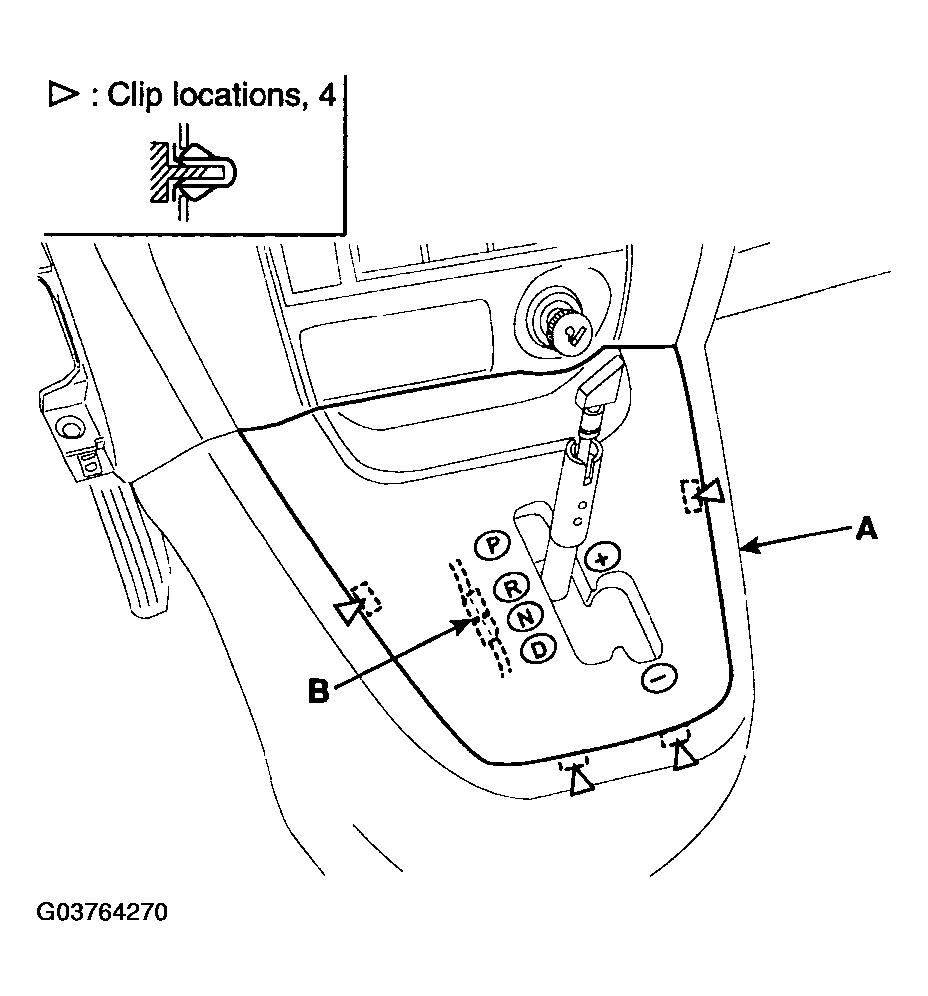

Remove the front console upper cover (A) and disconnect the connector (B).

Fig 1: Removing Front Console Upper Cover And Connector
Courtesy of HYUNDAI MOTOR CO.

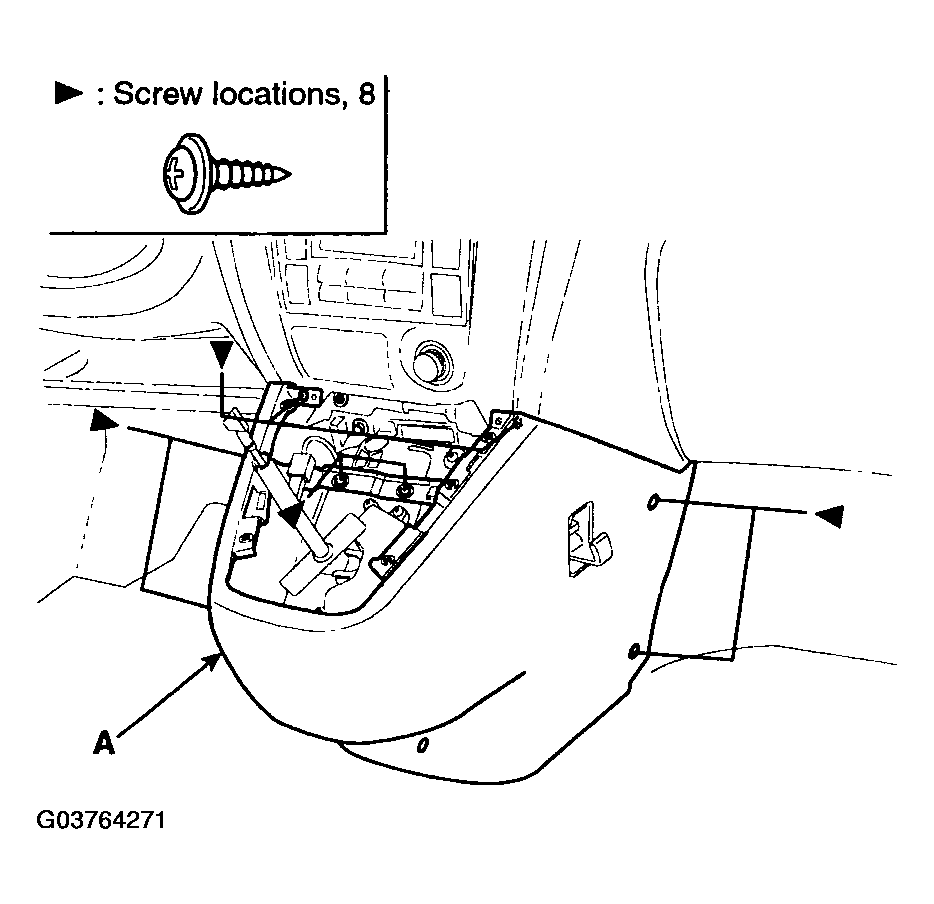

After loosening the mounting screw, remove the front console (A).

Fig 2: Removing Front Console
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
