Pop-Up Unit Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the armrest cover (A) mounting screws.

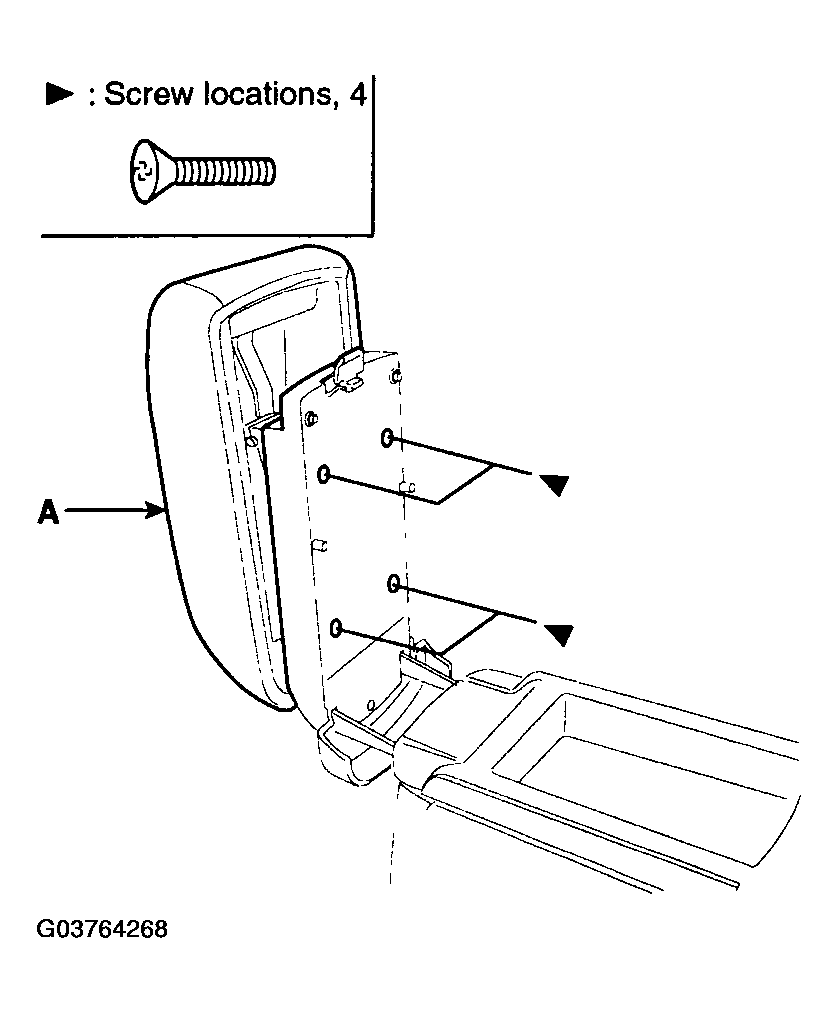

Fig 1: Loosening Armrest Cover Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the pop-up unit (A).

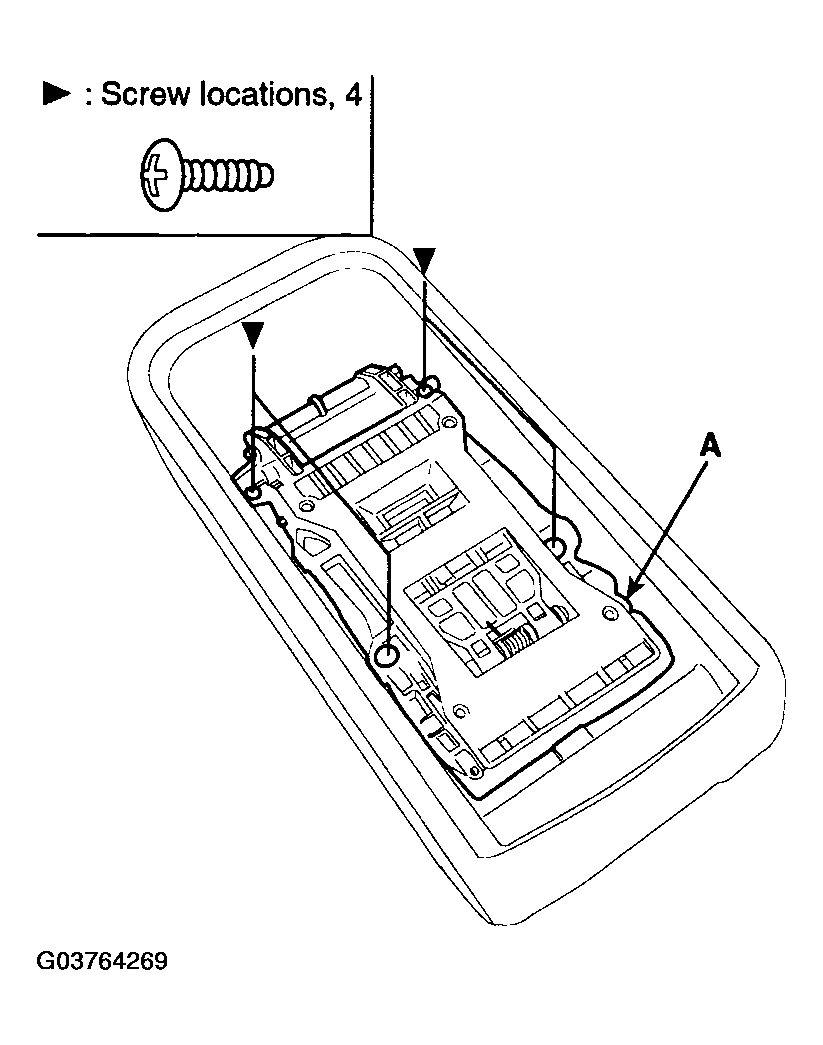

Fig 2: Removing Pop-Up Unit
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
