Blower Unit: Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative cable from the battery.
Remove the crash pad (see Crash Pad ).
Disconnect the connectors from the blower relay the blower motor, the blower resistor (or power transistor) and the fresh and recirculation actuator.

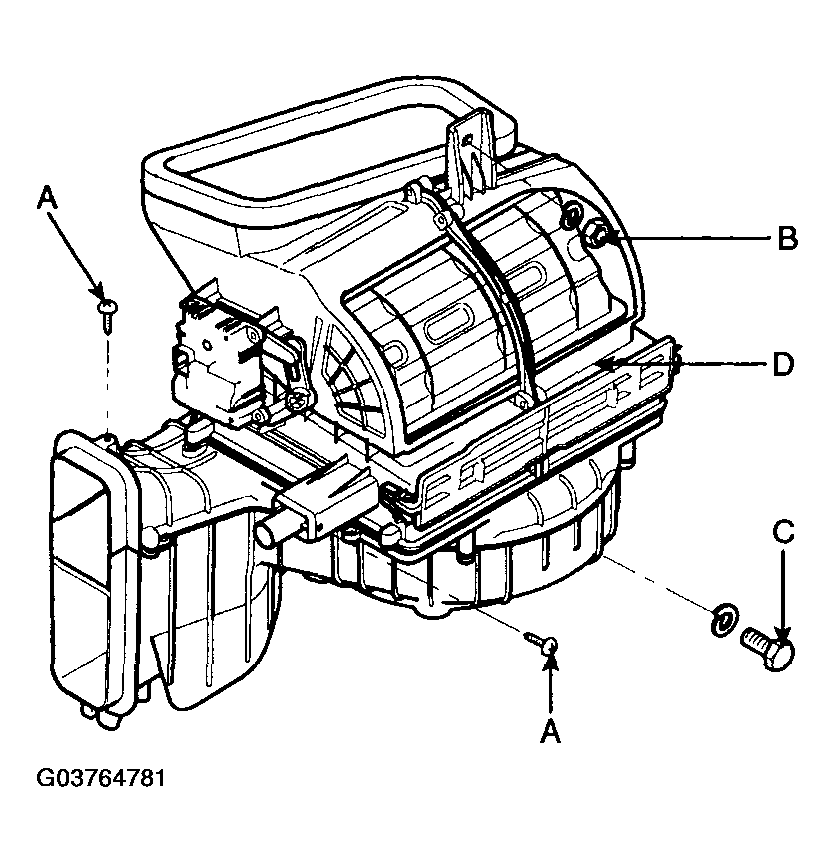

Remove the self-tapping screws (A), the mounting nut (B), the mounting bolt (C) and the blower unit (D).

Fig 1: Identifying Blower Unit Mounting Hardware
Courtesy of HYUNDAI MOTOR CO.

NOTE: Make sure that there is no air leaking out of the blower and duct joints.
Install in the reverse order of removal.
