Ignition System: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (Refer to the CRASH PAD ).
Remove the steering column cover.
Remove the key warning switch and key illumination lamp (B) after disconnecting the 6P connector(A).

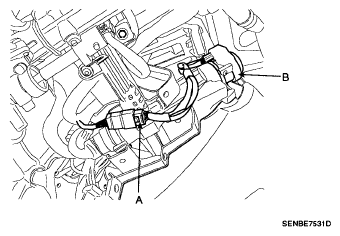

Fig 1: Identifying Key Illumination Lamp And 6P Connector
Courtesy of HYUNDAI MOTOR CO.
If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.

Fig 2: Identifying Key Lock Cylinder
Courtesy of HYUNDAI MOTOR CO.
