Fuel System (G6DA - GSL 3.8)
›
Gasoline Engine Control System
›
Component Location
Component Location

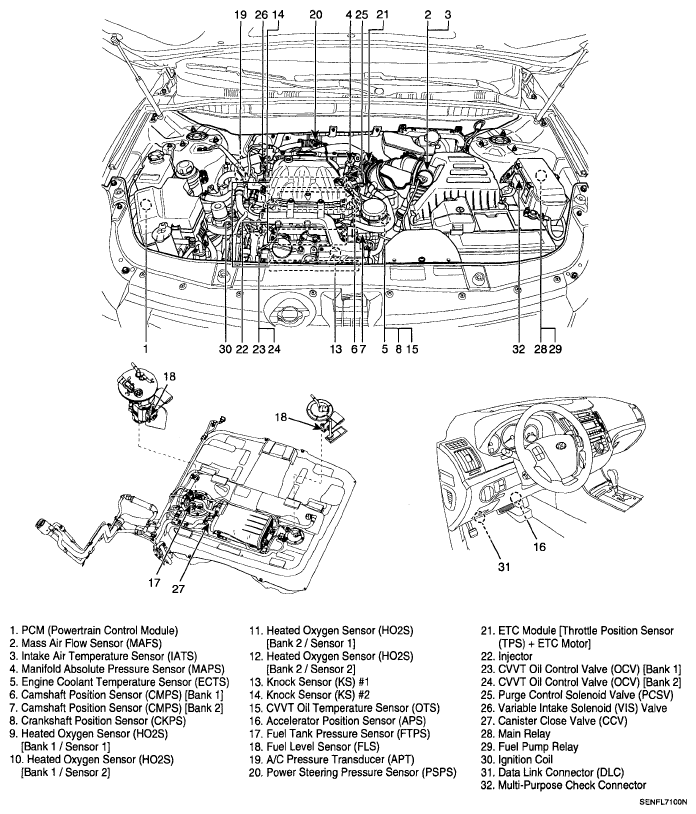

Fig 1: Identifying Fuel System Component Location (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

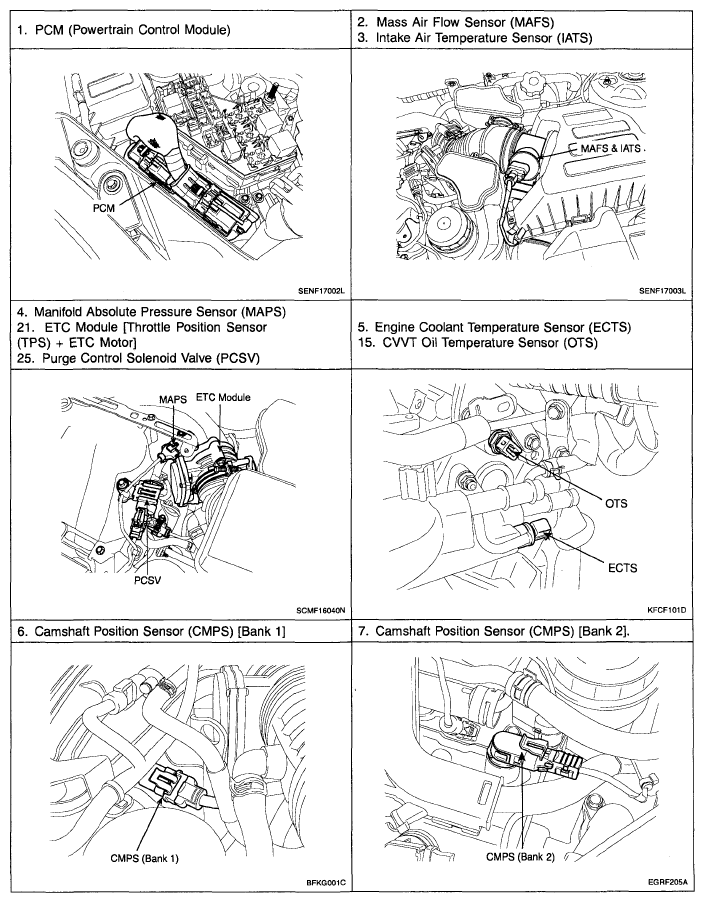

Fig 2: Identifying Fuel System Component Location (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

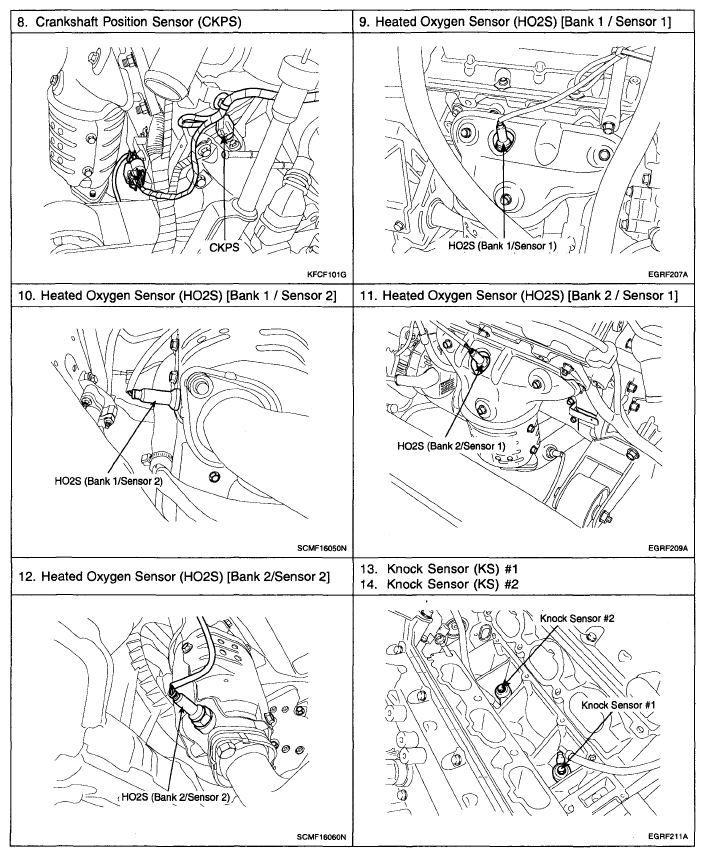

Fig 3: Identifying Fuel System Component Location (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

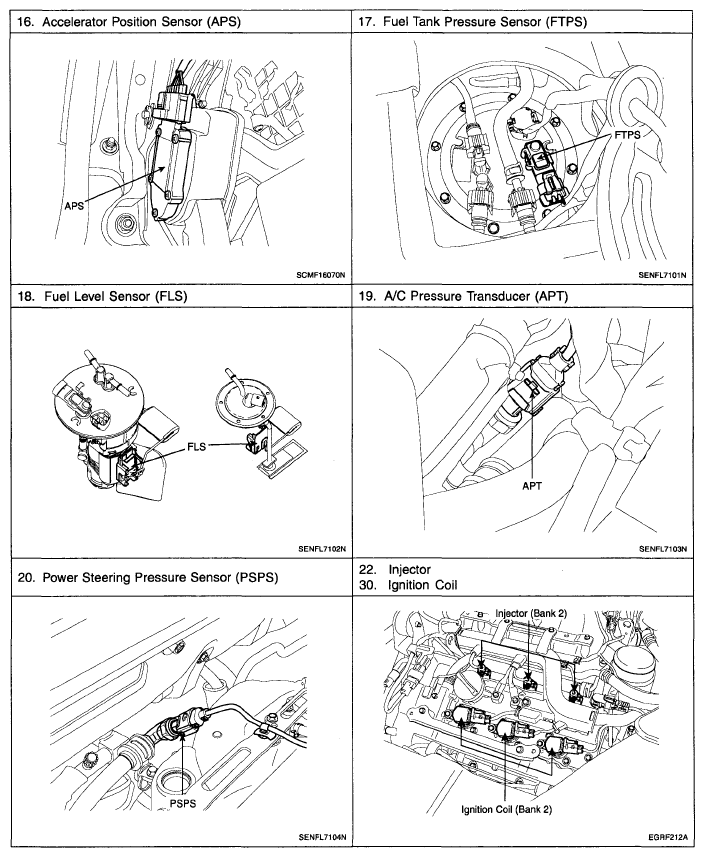

Fig 4: Identifying Fuel System Component Location (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

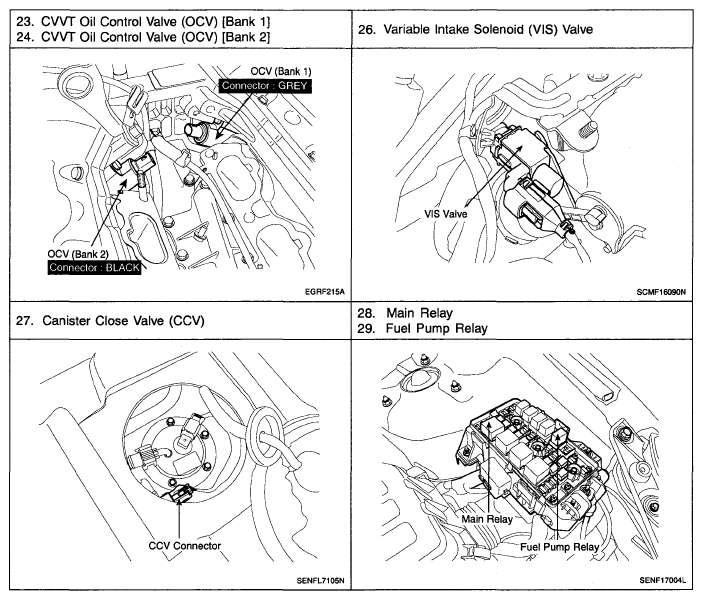

Fig 5: Identifying Fuel System Component Location (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
