Fuel System (G6DA - GSL 3.8)
›
Gasoline Engine Control System
›
Engine Control Module (ECM)
›
Circuit Diagram
Circuit Diagram

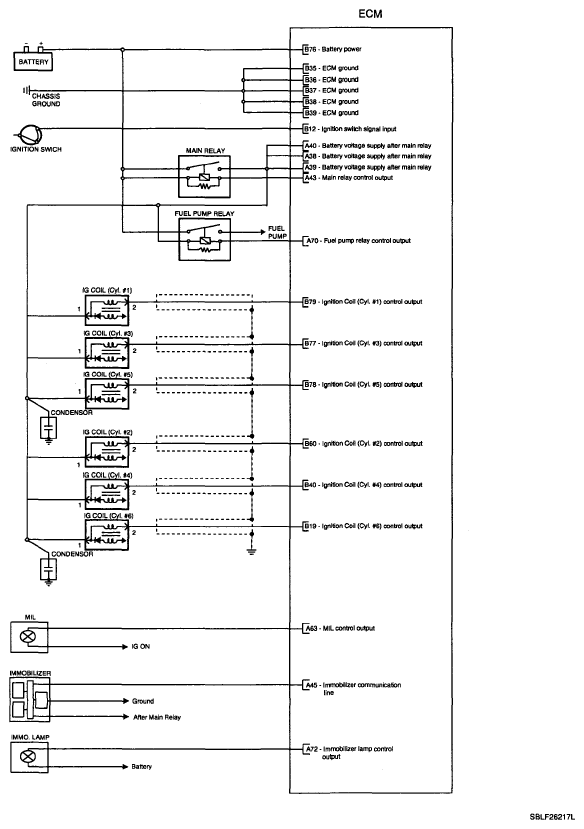

Fig 1: Fuel System - Circuit Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

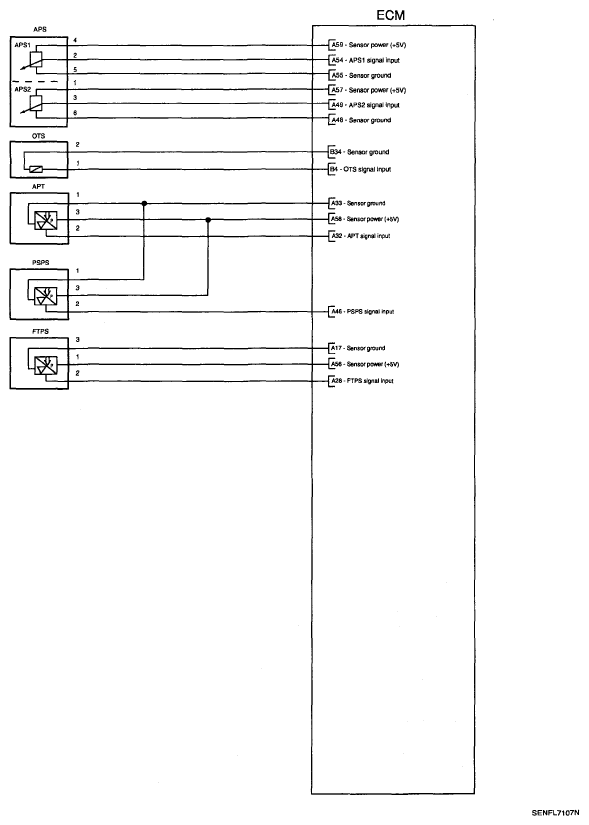

Fig 2: Fuel System - Circuit Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

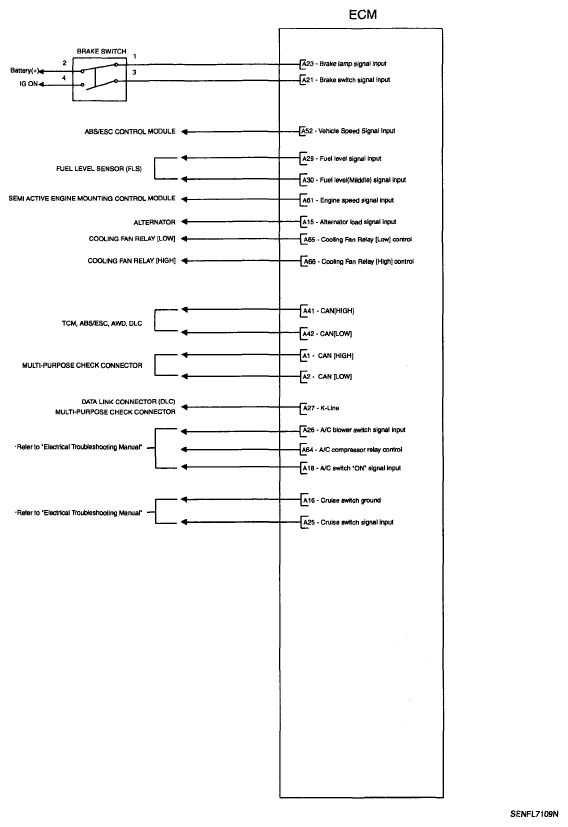

Fig 3: Fuel System - Circuit Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

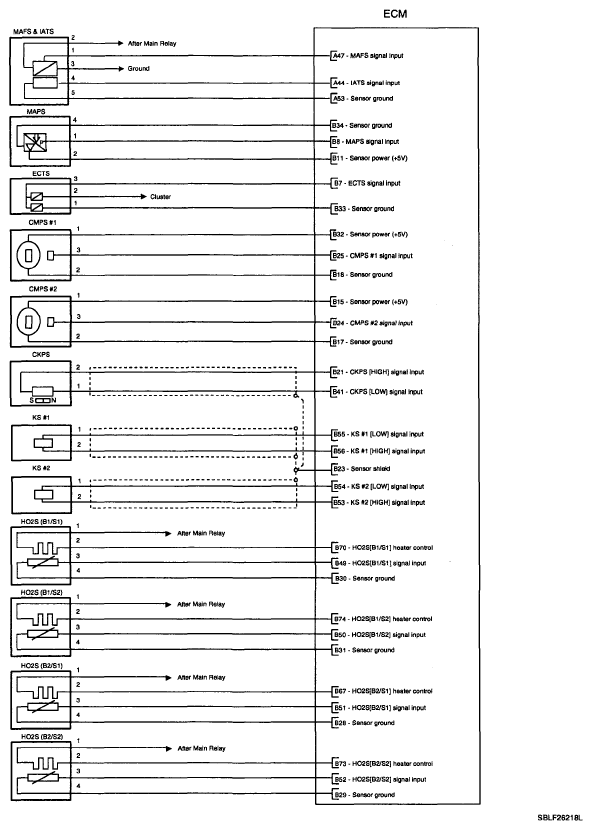

Fig 4: Fuel System - Circuit Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

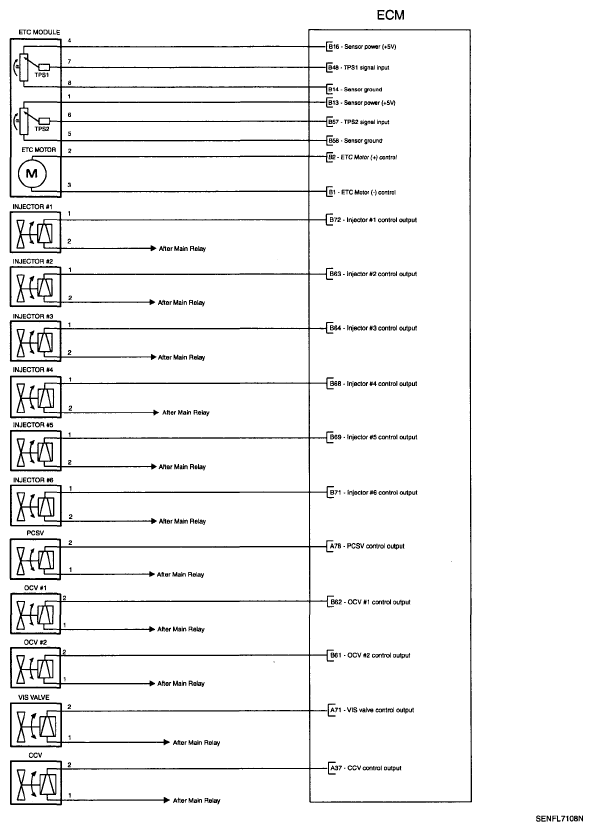

Fig 5: Fuel System - Circuit Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
