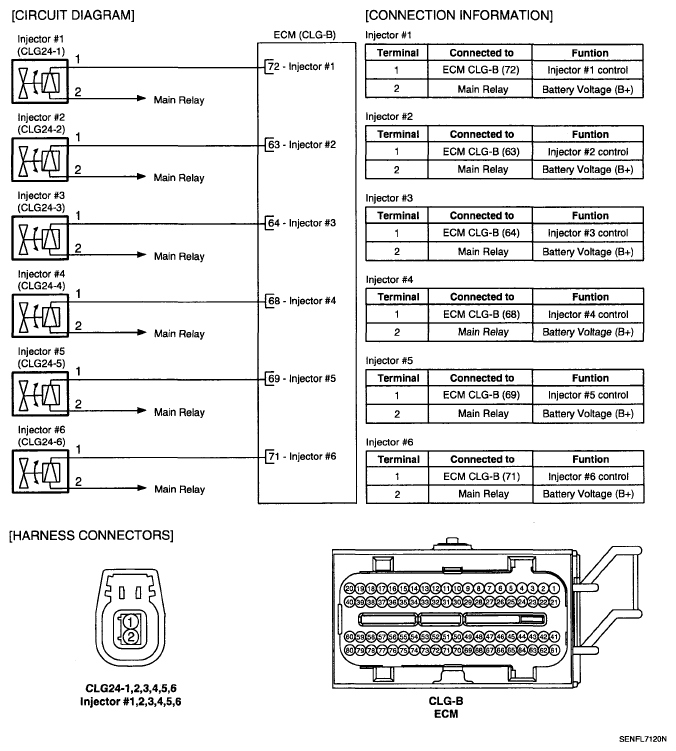

Home › Hyundai › 2007 › Veracruz GLS, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DA - GSL 3.8) › Gasoline Engine Control System › Injector › Inspection › Schematic Diagram
