Smart Key Programming (09-BE-008)

Publication date: 2009-05-01
Reference number: 09-BE-008

SMART KEY PROGRAMMING

SMART KEY PROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 09-BE-008, Date of Issue:  May 01, 2009
HYUNDAI: VERACRUZ (EN)
GROUP: ELECTRICAL

DESCRIPTION

This bulletin provides the procedure for reprogramming Veracruz Smart Keys.

NOTE: Only two (2) Smart Keys can be programmed to the vehicle.
NOTE: Once the 1st key is taught, the customer's 2nd key needs to be taught at the same time or it will not start the vehicle.

EFFECTIVE VEHICLE INFORMATION

Model: Veracruz (EN) (with Smart Key)

SMART KEY REPROGRAMMING PROCEDURE

  1. Connect the GDS unit to the vehicle and select the vehicle model and PIC (Smart Key Code Saving) option from the VIN screen.

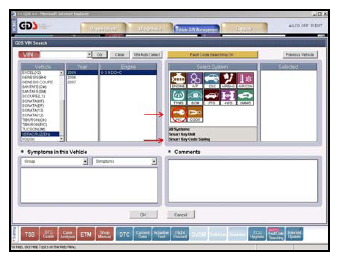

    Fig 1: Screen Display - VIN Screen
    G06093171

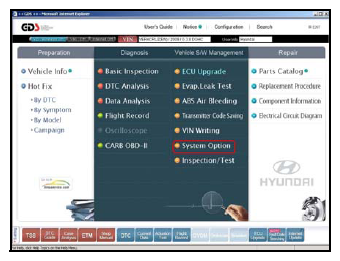

  2. From the GDS home screen select System Options.
    Fig 2: Screen Display - GDS
    G06093172
  3. Select Smart Key Saving from the System Option screen.

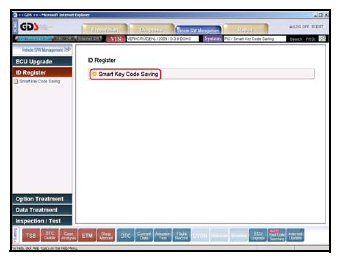

    Fig 3: Screen Display - Smart Key Saving
    G06093173
  4. Insert the 1st Smart Key into the ignition switch (MSL) and press OK.
    NOTE: The ignition switch does NOT have to be in the "On" position.

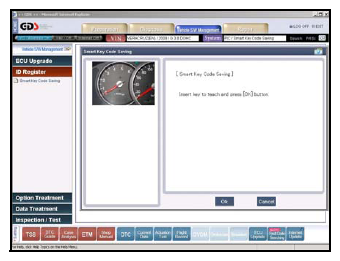

    Fig 4: Screen Display - 1st Smart Key
    G06093174
  5. Enter the 6 digit PIN code obtained from the Hyundai Dealer website and press OK. You will be prompted twice, asking you if you are sure you want to continue. Press OK at each prompt to continue or press Cancel to exit Smart Key Teaching.

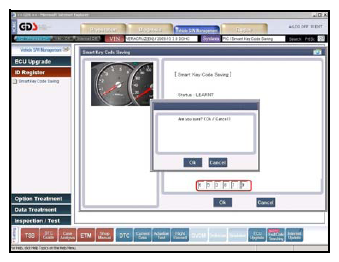

    Fig 5: Screen Display - 6 Digit PIN Code
    G06093175
  6. After the 1st key teaching has been completed, a screen will ask if you want to teach the 2nd key. Press OK to begin the 2nd key teaching.
    NOTE: If the customer's 2nd Smart Key is not taught at this time the vehicle can not be started when the 2nd Smart Key is tried or (2nd key will be deprogrammed/disabled).

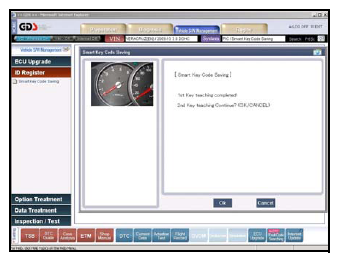

    Fig 6: Screen Display - 2nd Smart Key Teaching
    G06093176
  7. Insert the 2nd key when prompted and press OK.

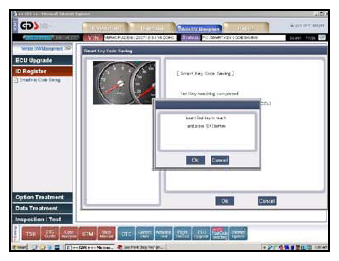

    Fig 7: Screen Display - 2nd Smart Key Confirmation
    G06093177
  8. When 2nd key teaching has been completed, the screen shown to the right appears, press OK.

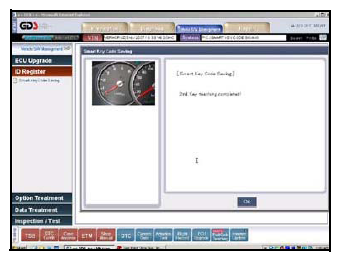

    Fig 8: Screen Display - OK
    G06093178

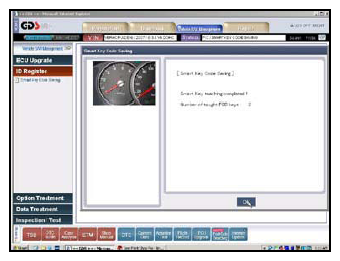

  9. A screen showing that the Smart Key Teaching has been completed will open (Picture A) and it will show how many Smart Keys have been taught. This information can also be found in the Current Data Screen (Picture B).
  10. Confirm operation of both Smart Keys
    Fig 9: Screen Display - Smart Key
    G06093179

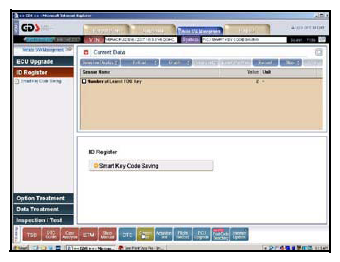

    Fig 10: Screen Display - Smart Key
    G06093180
