IMS Power Seat Control Connector End View
IMS Power Seat Control Connector End View

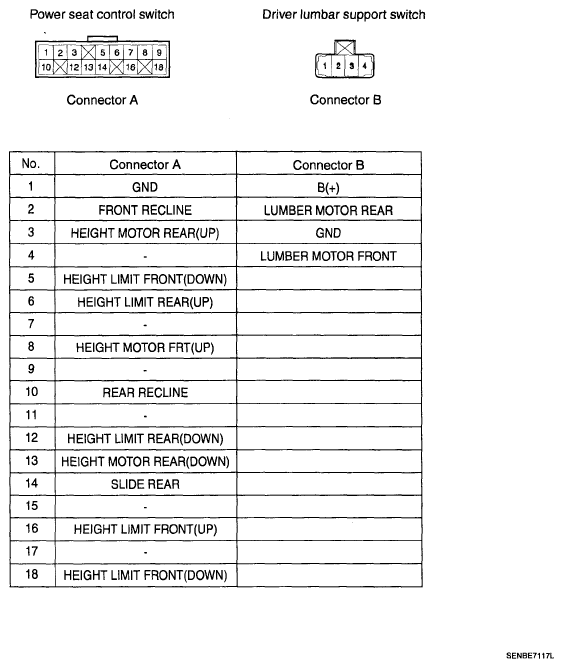

Fig 1: IMS Power Seat Control Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
