Front Suspension System: Components

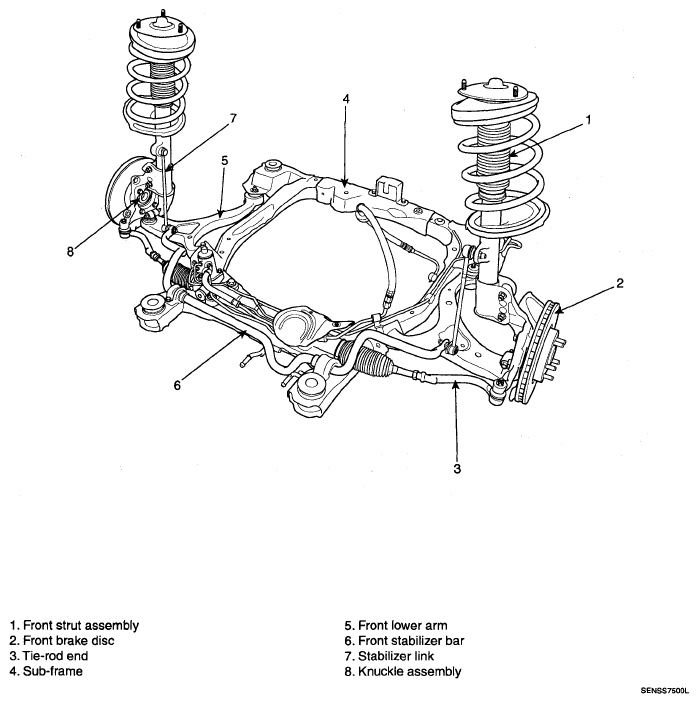

Fig 1: Identifying Front Suspension System Components
G05330544Courtesy of HYUNDAI MOTOR CO.
