Adjusting The Shift Cable

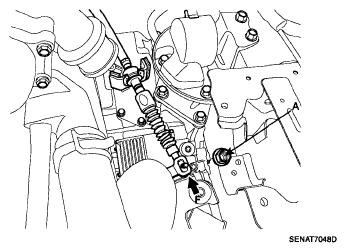

- Set the room side lever and the manual lever to "N" position.
- Push the shift cable lightly to "F" direction shown to eliminate the free play.
- Tighten the adjusting nut (A).
TORQUE : 8-12 Nm (0.8-1.2 kgf.m, 5.8-8.7 lb-ft)
- Check that this part operates surely at each range of the manual lever corresponding to each position of the room lever.
