Automatic Transaxle: Components

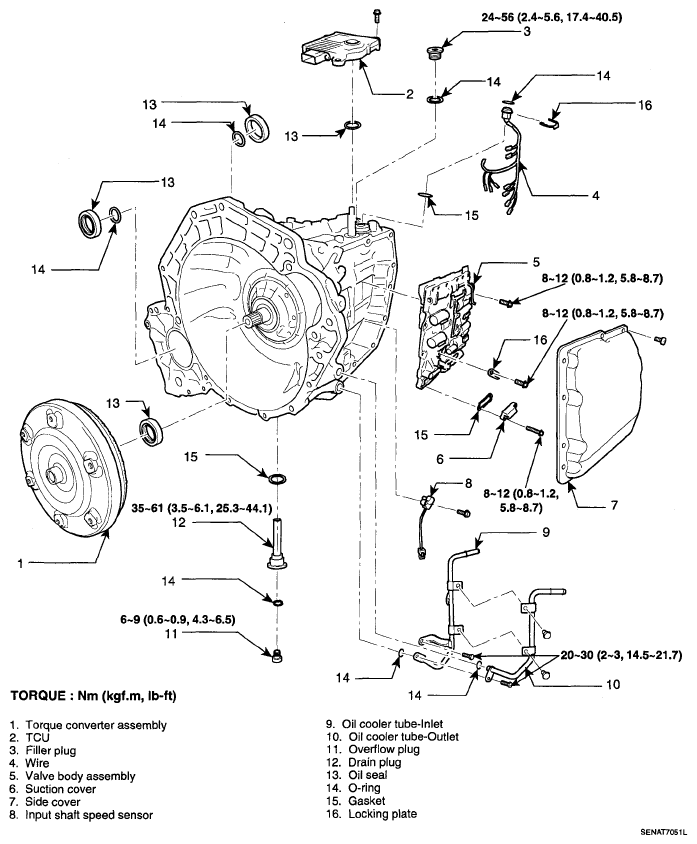

Fig 1: Exploded View Of Automatic Transaxle With Torque Specification
G05330285Courtesy of HYUNDAI MOTOR CO.
