Schematic Diagram

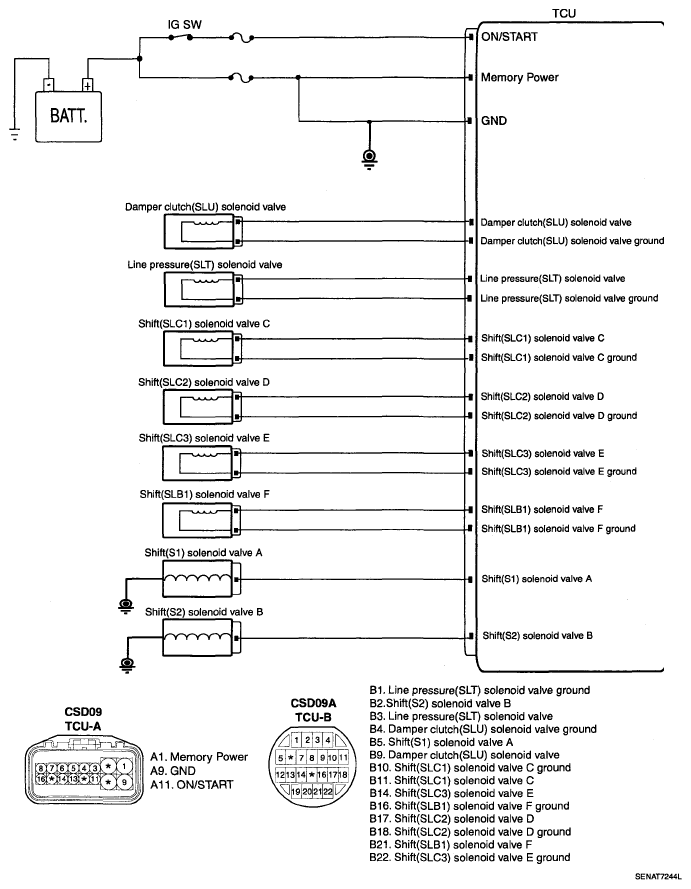

Fig 1: TCC Solenoid Valve (SLU) - Schematic Diagram
G05330242Courtesy of HYUNDAI MOTOR CO.
