Transfer Case: Components

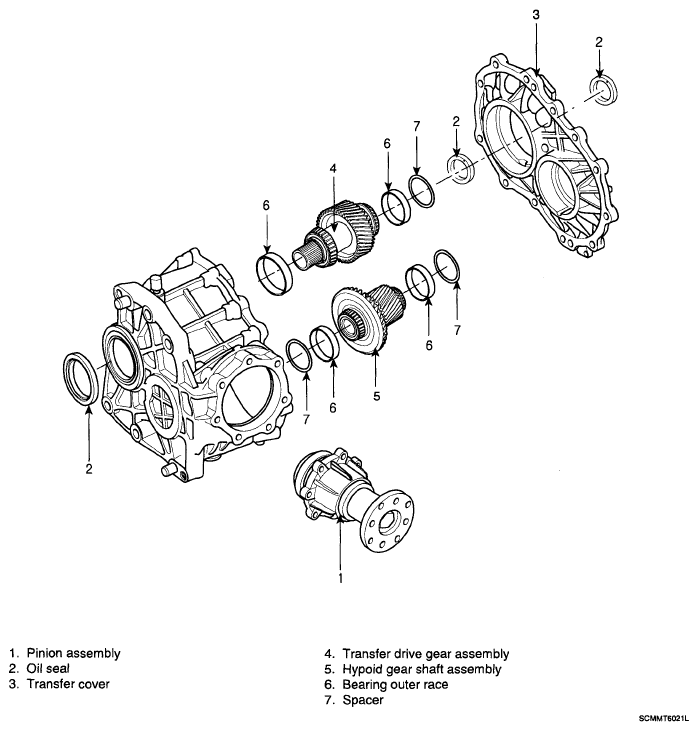

Fig 1: Identifying Transfer Case Components
G05330449Courtesy of HYUNDAI MOTOR CO.
