Transfer Case: Removal

Disconnect the (-) terminal from the battery.
Lift up the vehicle.
Remove the front muffler (A), (refer to INTAKE AND EXHAUST SYSTEM )

Fig 1: Identifying Front Muffler
Courtesy of HYUNDAI MOTOR CO.
Disconnect the propeller shaft (A) by removing the three bolts.

Fig 2: Identifying Propeller Shaft
Courtesy of HYUNDAI MOTOR CO.
Disconnect the right driveshaft from the transfer case, (refer to DRIVE SHAFT )

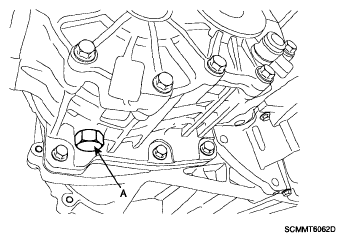

Drain the fluid by removing the oil drain plug (A).

Fig 3: Identifying Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.
After completing draining the fluid, install the oil drain plug.
Torque : 40-60 Nm (4.0-6.0 kgf.m, 28.9-43.4 lb-ft)

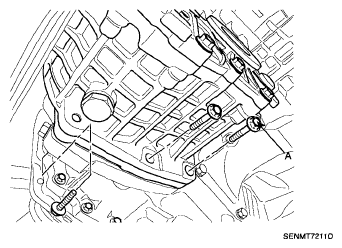

Remove the four mounting bolts (A) of transfer case bracket.

Fig 4: Identifying Transfer Case Bracket Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the transfer case assembly by removing the six mounting bolts (A).

Fig 5: Identifying Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

Fig 6: Identifying Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
