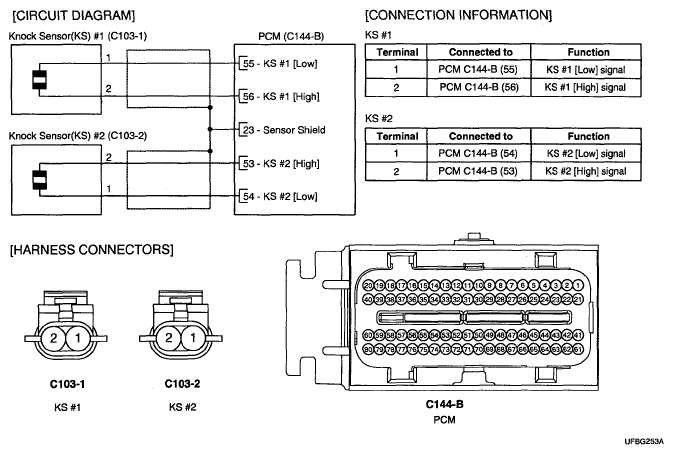

Home › Hyundai › 2008 › Azera GLS › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 2) › DTC Troubleshooting Procedures › DTC P0330 Knock Sensor 2 Circuit › Schematic Diagram
