Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Front Of Engine Compartment

G00441808

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Right Front Of Engine Compartment

G00441809

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Left Rear Of Engine Compartment

G00441810

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Lower Left Kick Panel

G00441811

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Upper Left Kick Panel

G00441812

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Behind Left Side Of Dash

G00441813

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Front Of Driver's Footwell

G00441814

Courtesy of HYUNDAI MOTOR CO.

Fig 8: Behind Center Of Dash

G00441815

Courtesy of HYUNDAI MOTOR CO.

Fig 9: Under Center Console

G00441816

Courtesy of HYUNDAI MOTOR CO.

Fig 10: Below Right Side Of Dash

G00441817

Courtesy of HYUNDAI MOTOR CO.

Fig 11: Right Kick Panel

G00441818

Courtesy of HYUNDAI MOTOR CO.

Fig 12: Right "B" Pillar

G00441820

Courtesy of HYUNDAI MOTOR CO.

Fig 13: Left "B" Pillar

G00441819

Courtesy of HYUNDAI MOTOR CO.

Fig 14: Left "C" Pillar

G00441821

Courtesy of HYUNDAI MOTOR CO.

Fig 15: Right "C" Pillar

G00441822

Courtesy of HYUNDAI MOTOR CO.

Fig 16: Below Rear Seat

G00441823

Courtesy of HYUNDAI MOTOR CO.

Fig 17: Top Of Left "C" Pillar

G00441824

Courtesy of HYUNDAI MOTOR CO.

Fig 18: Left Front Of Engine Compartment

G00441825

Courtesy of HYUNDAI MOTOR CO.

Fig 19: Behind Grille

G00441826

Courtesy of HYUNDAI MOTOR CO.

Fig 20: Right Side Of Engine Compartment

G00459213

Courtesy of HYUNDAI MOTOR CO.

Fig 21: Right Front Of Engine Compartment

G00441828

Courtesy of HYUNDAI MOTOR CO.

Fig 22: Front Of Engine

G00441829

Courtesy of HYUNDAI MOTOR CO.

Fig 23: Left Side Of Engine

G00441830

Courtesy of HYUNDAI MOTOR CO.

Fig 24: Left Rear Of Engine Compartment

G00441831

Courtesy of HYUNDAI MOTOR CO.

Fig 25: Top Of Strut Tower

G00441832

Courtesy of HYUNDAI MOTOR CO.

Fig 26: Under Left Side Of Dash

G00441833

Courtesy of HYUNDAI MOTOR CO.

Fig 27: Left End Of Dash

G00441834

Courtesy of HYUNDAI MOTOR CO.

Fig 28: Steering Column

G00441835

Courtesy of HYUNDAI MOTOR CO.

Fig 29: Behind Left Center Of Dash

G00441836

Courtesy of HYUNDAI MOTOR CO.

Fig 30: Below Left Side Of Dash

G00441837

Courtesy of HYUNDAI MOTOR CO.

Fig 31: Below Center Console

G00441838

Courtesy of HYUNDAI MOTOR CO.

Fig 32: Behind Right Side Of Dash

G00441839

Courtesy of HYUNDAI MOTOR CO.

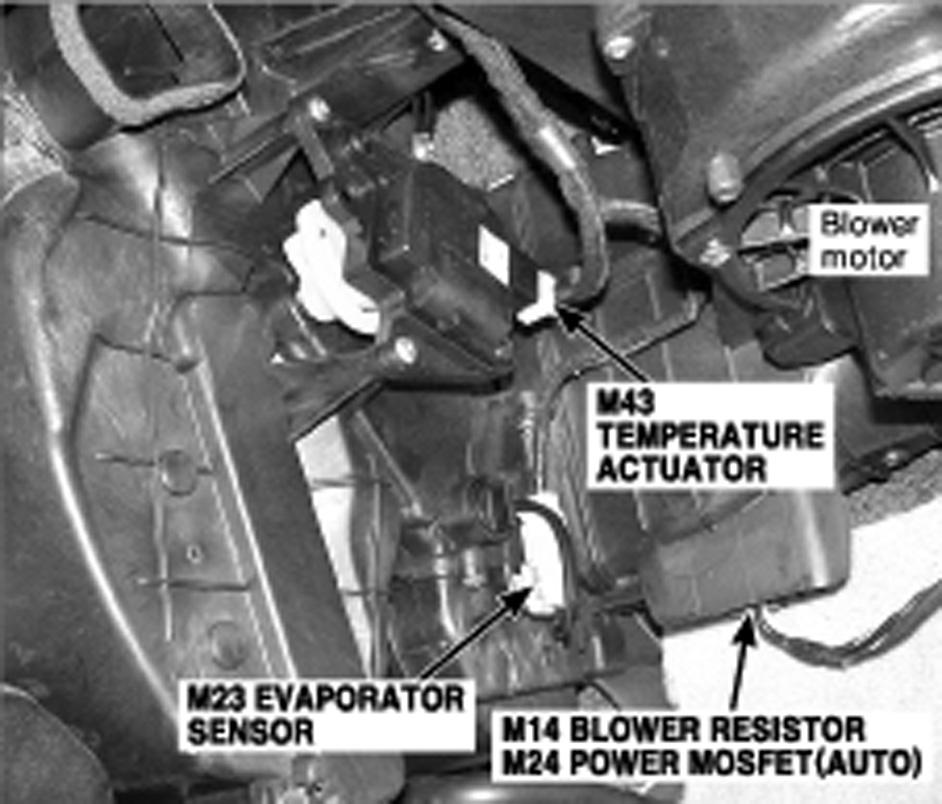

Fig 33: Under Right Side Of Dash

G00459220

Courtesy of HYUNDAI MOTOR CO.

Fig 34: Under Right Side Of Dash

G00441841

Courtesy of HYUNDAI MOTOR CO.

Fig 35: Inside Of Roof

G00441842

Courtesy of HYUNDAI MOTOR CO.

Fig 36: Front Door

G00441843

Courtesy of HYUNDAI MOTOR CO.

Fig 37: Under Front Seat

G00441844

Courtesy of HYUNDAI MOTOR CO.

Fig 38: Rear Door

G00441845

Courtesy of HYUNDAI MOTOR CO.

Fig 39: Right "C" Pillar

G00445270

Courtesy of HYUNDAI MOTOR CO.

Fig 40: Right Side Of Trunk

G00445271

Courtesy of HYUNDAI MOTOR CO.

Fig 41: Trunk Lid

G00445272

Courtesy of HYUNDAI MOTOR CO.

Fig 42: Under Vehicle

G00445273

Courtesy of HYUNDAI MOTOR CO.

Fig 43: Left Front Of Engine Compartment

G00445274

Courtesy of HYUNDAI MOTOR CO.

Fig 44: Left Rear Of Engine

G00445275

Courtesy of HYUNDAI MOTOR CO.

Fig 45: Left Rear Of Engine

G00445276

Courtesy of HYUNDAI MOTOR CO.

Fig 46: Right Side Of Engine

G00445278

Courtesy of HYUNDAI MOTOR CO.

Fig 47: Top Of Engine

G00445279

Courtesy of HYUNDAI MOTOR CO.

Fig 48: Top Of Engine

G00445280

Courtesy of HYUNDAI MOTOR CO.

Fig 49: Top Of Transaxle

G00445281

Courtesy of HYUNDAI MOTOR CO.

Fig 50: Top Of Transaxle

G00445282

Courtesy of HYUNDAI MOTOR CO.

Fig 51: Left Rear Of Engine Compartment

G00445283

Courtesy of HYUNDAI MOTOR CO.

Fig 52: Under Left End Of Dash

G00445284

Courtesy of HYUNDAI MOTOR CO.

Fig 53: Bottom Center Of Dash

G00445285

Courtesy of HYUNDAI MOTOR CO.

Fig 54: Engine Compartment Relay & Fuse Box

G00459223

Courtesy of HYUNDAI MOTOR CO.

Fig 55: Front Of Engine Compartment

G00459212

Courtesy of HYUNDAI MOTOR CO.

Fig 56: Left Front Of Engine Compartment

G00459211

Courtesy of HYUNDAI MOTOR CO.

Fig 57: Rear Of Engine Compartment

G00459214

Courtesy of HYUNDAI MOTOR CO.

Fig 58: Right "C" Pillar (Left Similar)

G00459215

Courtesy of HYUNDAI MOTOR CO.

Fig 59: Left "A" Pillar

G00459216

Courtesy of HYUNDAI MOTOR CO.

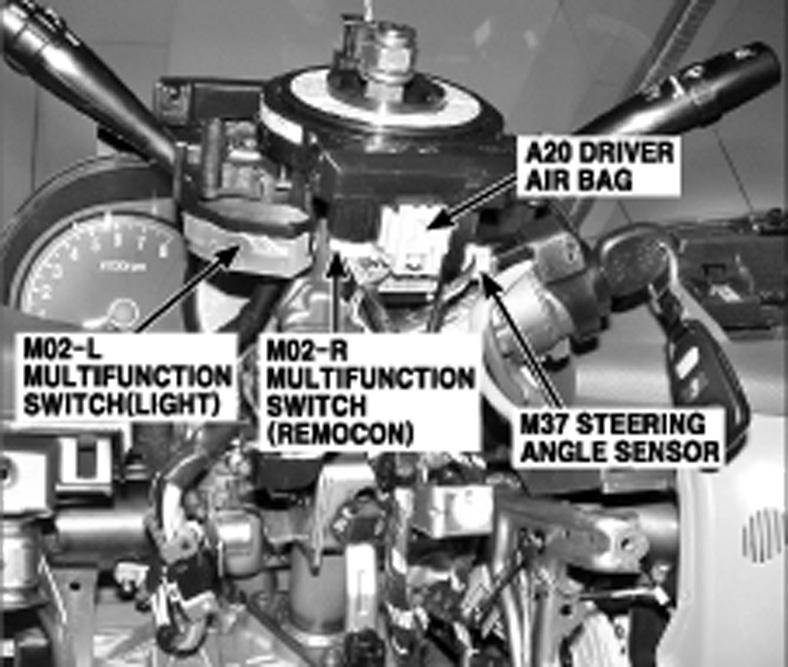

Fig 60: Steering Column

G00459217

Courtesy of HYUNDAI MOTOR CO.

Fig 61: Top Center Of Dash

G00459218

Courtesy of HYUNDAI MOTOR CO.

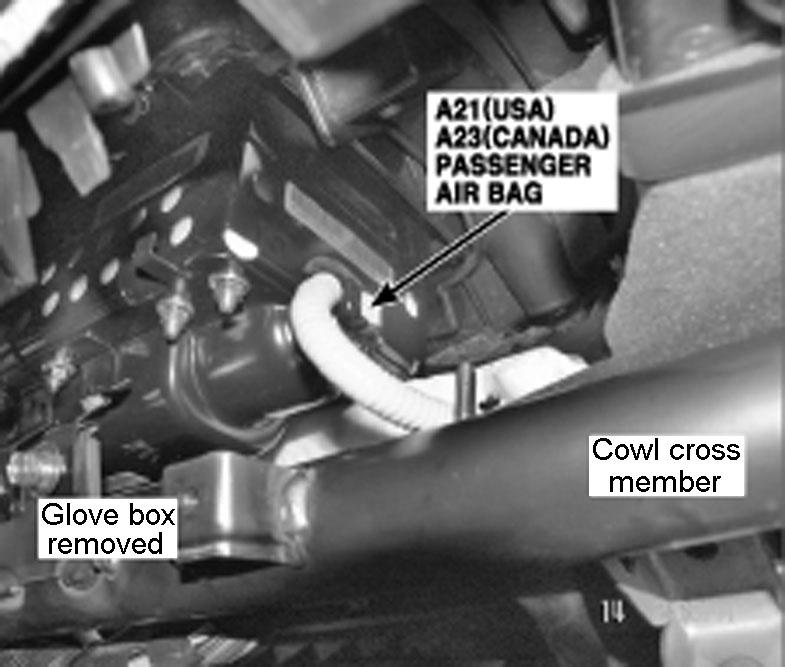

Fig 62: Behind Right Side Of Dash

G00459219

Courtesy of HYUNDAI MOTOR CO.

Fig 63: Left Side Of Trunk

G00459221

Courtesy of HYUNDAI MOTOR CO.

Fig 64: Right Side Of Engine Compartment

G00459222

Courtesy of HYUNDAI MOTOR CO.

Fig 65: Passenger Compartment Junction/Relay Box

G05365416

Courtesy of HYUNDAI MOTOR CO.
