Audio System
›
Component Location
Component Location

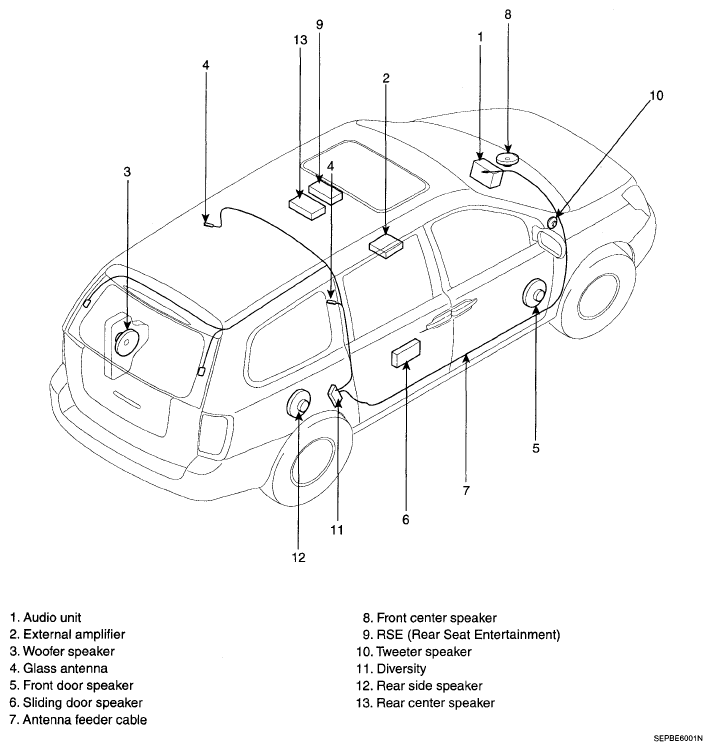

Fig 1: Identifying Audio System Component Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
