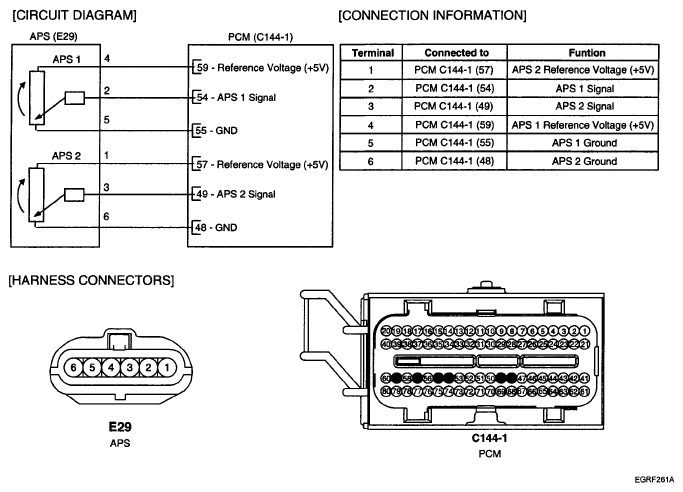

Home › Hyundai › 2008 › Sonata GLS, 3.3 F › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DB-GSL 3.3) › Gasoline Engine Control System › Accelerator Position Sensor (APS) › Schematic Diagram
