Home › Hyundai › 2008 › Tiburon GT, Automatic › Repair and Diagnosis › Engine Mechanical › Starter › Starting System › Starter › Components

Starting System: Starter: Components

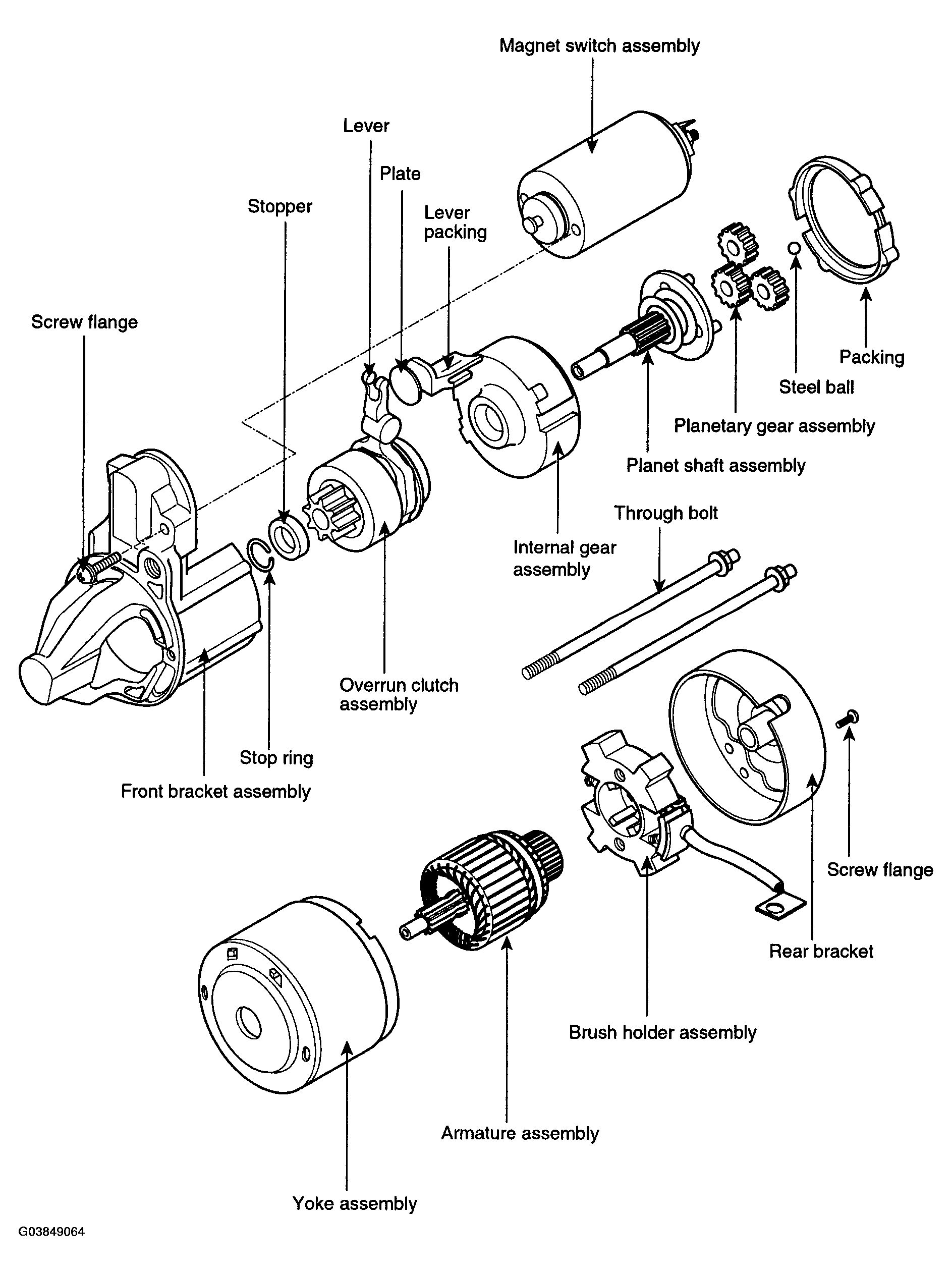

Fig 1: Exploded View Of Starter
G03849064Courtesy of HYUNDAI MOTOR CO.
