To Re-Calibrate The Compass

  1. Press and hold the Feature Control button (A) for more than 9 seconds. When the compass memory is cleared a "C" will appear in the display (B).
  2. To calibrate the compass, drive the vehicle is 2 complete circles at less than 5 MPH.

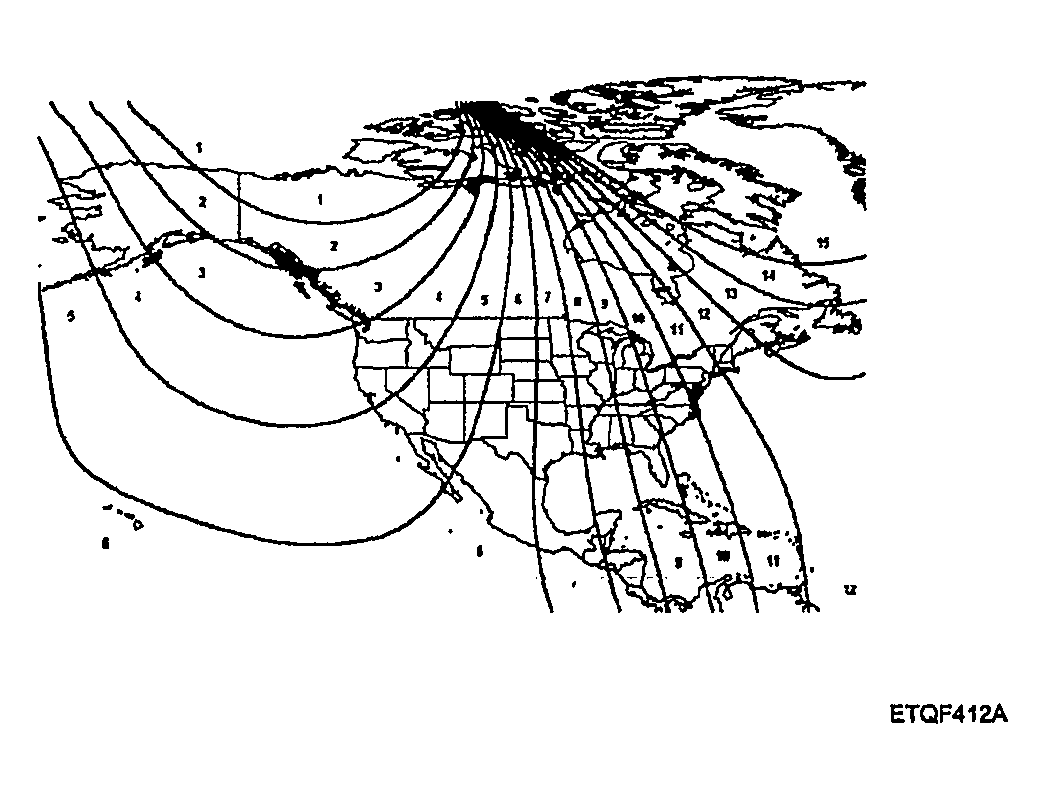

Fig 1: Magnetic Zone Map
G00448994Courtesy of HYUNDAI MOTOR CO.
