ELECTROCHROMIC Inside Rear View Mirror: Replacement

Push the inside rear view mirror base down to remove the inside rear view mirror assembly (A) after removing the mirror wire cover

Fig 1: View Of Inside Rear View Mirror
Courtesy of HYUNDAI MOTOR CO.

NOTE: Mirror it adheres closely in the mirror base (A) and it separates while removing the mirror (B). Make sure the spring mounting bracket (C) of the mirror not to be damaged.

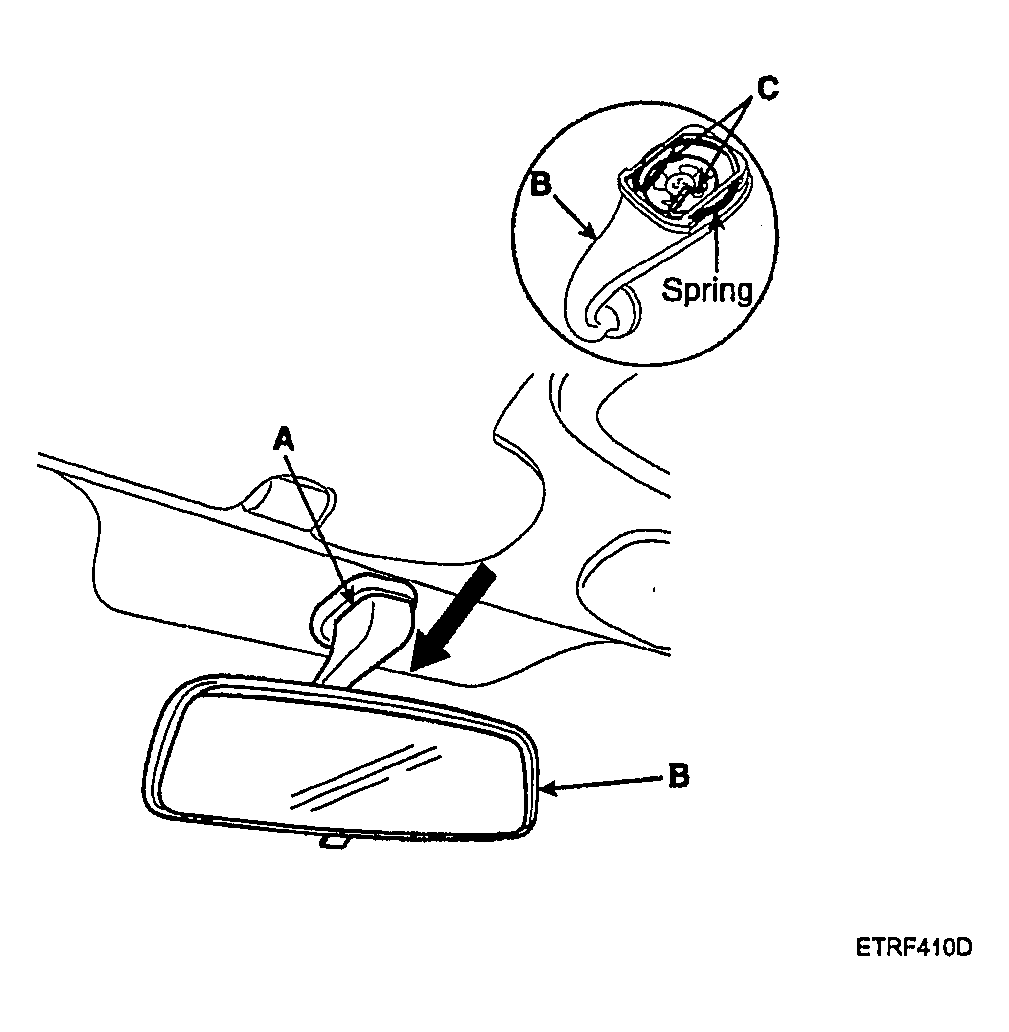

Fig 2: View Of Rearview Mirror Mounting
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal
