Rear Power Window Switch

  1. Remove the rear power window switch from the rear door trim panel.

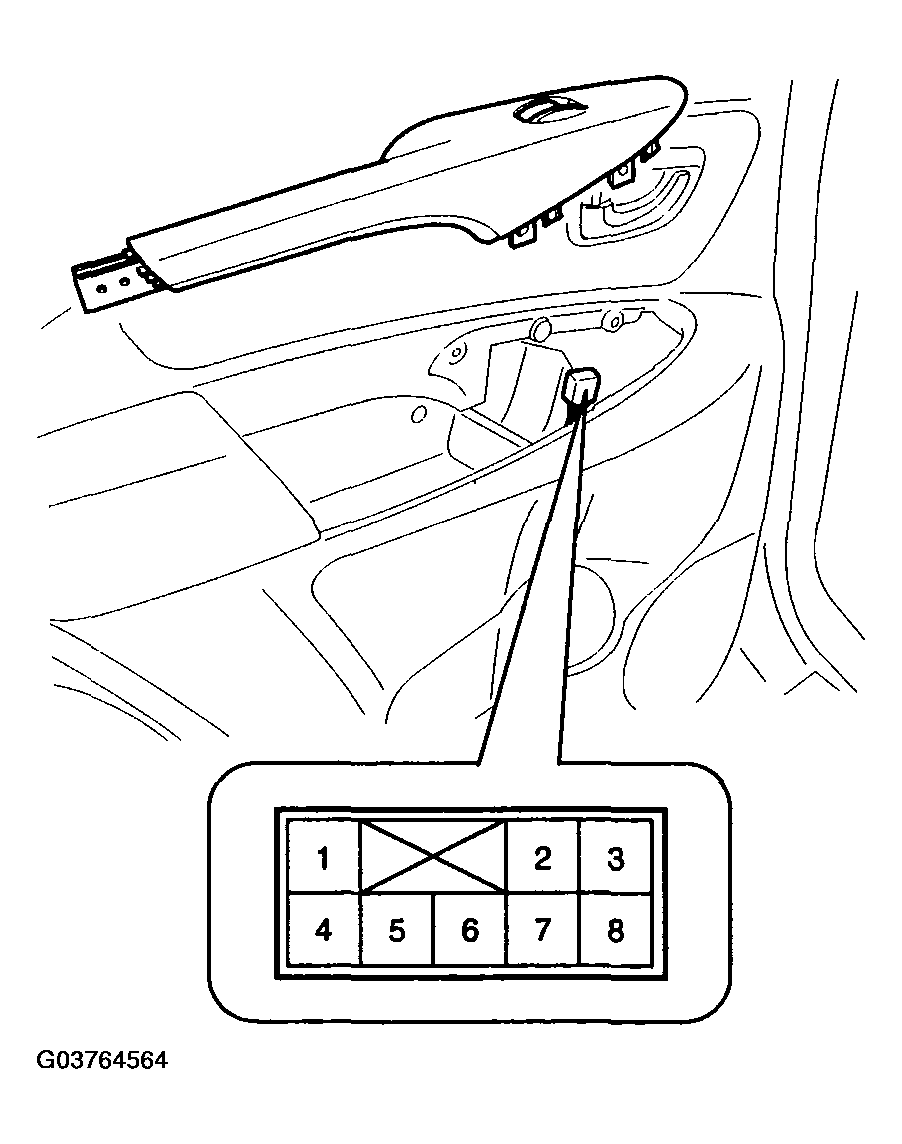

    Fig 1: Identifying Rear Power Window Switch Connector Terminals
    G03764564Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

    If continuity is not as specified in the table (Fig 2), replace the power window switch

    Fig 2: Rear Power Window Switch Continuity Chart
    G03764565Courtesy of HYUNDAI MOTOR CO.
