Propeller Shaft: Components

WARNING: This page is about a different variant/trim than selected.

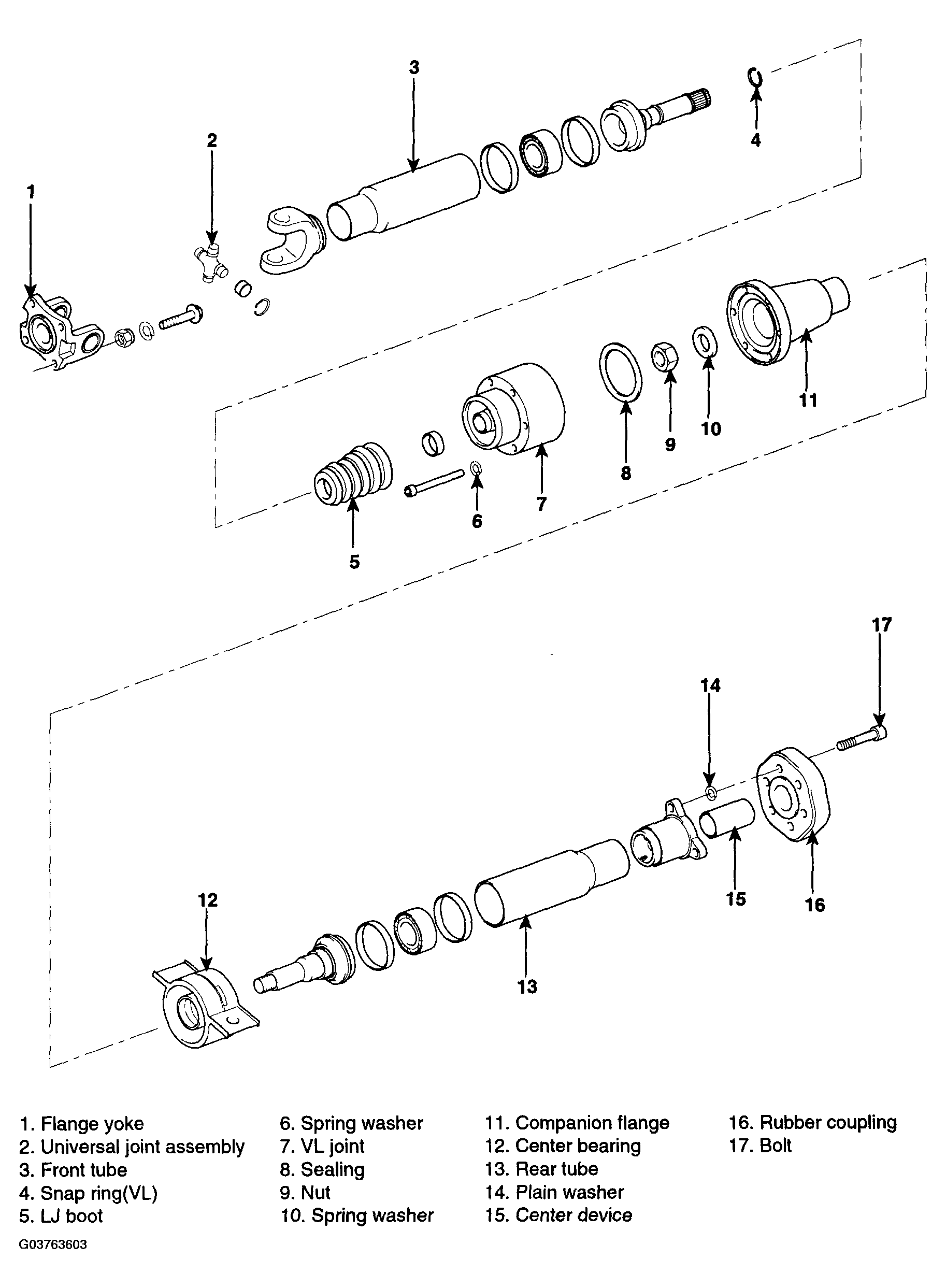

Fig 1: Identifying Propeller Shaft Components
G03763603Courtesy of HYUNDAI MOTOR CO.
