BCM (Body Control Module): Operation

WIPER SYSTEM

LOW SPEED CONTROL
In IGN2 ON State, if there is WIPER LOW input (LIN COMMUNICATION), then set Low Speed Wiping (LIN COMMUNICATION).
HIGH SPEED CONTROL
In IGN2 ON State, if there is WIPER HIGH input (LIN COMMUNICATION), then set High Speed Wiping (LIN COMMUNICATION).
VEHICLE SPEED AND INT. TIME VOLUME CONTROL THE INTERVAL TIME OF INT. WIPER.
In IGN2 ON State, if there is WIPER INT. INPUT (LIN COMMUNICATION), then set Intermittent Wiping (LIN COMMUNICATION) and send Intermittent Time (LIN COMMUNICATION).

BASIC INTERVAL TIME

If the variance of basic interval time is less then 0.3sec, the interval time is not changed.
If the basic interval time is less than 1.5sec, the wiper moves continuously.
If the interval time is set (or has passed) more than 10sec, and in case vehicle runs (From vehicle stop to more than 7km/h), the wiper motor is driven.

DEFAULT VALUE

DEFAULT VALUE REFERENCE CHART

Step	1	2	3	4	5
Time at 0 Speed	2.2 sec	3.9 sec	6.1 sec	8.3 sec	10 sec

WIPER MOTOR CONTROL FOR WASHER

MIST MODE WASHING WIPER SWITCH INPUT : 0.16SEC ~ 0.56SEC)

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	Washer switch is OFF
Event	If the duration of WASHER switch input is measured from 0.16sec to 0.56sec
Action	After T3, the Low Speed Wiping (LIN) is ON for 0.7sec. (For 1 Time wiping)

Fig 1: Wiper Motor Control For Washer Timing Chart - MIST Mode Washing Wiper Switch Input

Courtesy of HYUNDAI MOTOR CO.

T1 : 0.16sec, T2 : 0.56sec,

T3 : 0.28sec, T4 : 0.7 ± 0.1

NOMINAL MODE WASHING (WIPER SW INPUT : MORE 0.56 SEC)

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	Washer switch is OFF
Event	If WASHER switch is ON more than 0.56 sec.
Action	The Low Speed Wiping (LIN) is on after T3 (0.28sec)

NOTE: The WASHER SWITCH input is ignored during cranking (IGN2 is OFF during cranking)

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	Nominal mode washing & WASHER switch on.
Event	If WASHER switch is OFF.
Action	The Low Speed Wiping (LIN) stops wiper after 3 ± 0.3 sec later. (Low Speed Wiping (LIN) is OFF after 3 ± 0.3 sec later)

Fig 2: Wiper Motor Control For Washer Timing Chart - Nominal Mode Washing (Wiper SW Input : More 0.56 Sec)

Courtesy of HYUNDAI MOTOR CO.

T1 : 0.16sec, T2 : 0.56sec,

T3 : 0.28sec, T4 : 3 ± 0.3sec.

WASHER FUNCTION DURING WIPER INT. MODE

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	IGN2 switch ON & WIPER INT. MODE
Event	If WASHER switch is ON more than 0.56sec.
Action	The Low Speed Wiping (LIN) is on after T3 (0.28 sec.)

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	WASHER MODE (During WIPER INT.)
Event	If WASHER switch is OFF
Action	The Low Speed Wiping (LIN) will stop wiper after 3 ± 0.3 sec later. (Low Speed Wiping (LIN) is OFF after 3 ± 0.3sec later) (i.e. Resume WIPER INT. mode after 3 ± 0.3sec)

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	WIPER INT. mode
Event	The duration of WIPER switch input is measured from 0.16sec to 0.56sec.
Action	After T3, the Low Speed Wiping (LIN) Output is ON for 0.7sec.

Fig 3: Wiper Motor Control For Washer Timing Chart - Washer Function During Wiper INT. Mode

Courtesy of HYUNDAI MOTOR CO.

T1 : more than 0.56sec, T2 : 0.16sec ~ 0.56sec,

T3 : 0.28sec, T4 : 3 ± 0.3sec, T5 : T6~0.7sec,

T6 : INT. Time, T7 : Within T6.

WASHER FUNCTION DURING WIPER AUTO. MODE

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	IGN2 switch ON & WIPER AUTO. MODE & High Speed Wiping
Event	If WASHER input is detected regardless of duration of detection time
Action	Stay in High Speed Wiping (LIN)

Fig 4: Wiper Motor Control For Washer Timing Chart - Washer Function During Wiper Auto. Mode

Courtesy of HYUNDAI MOTOR CO.

Fig 5: BCM Output Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

RAIN SENSING WIPER
In IGN2 ON state, if AUTO switch input (LIN Communication) is ON then both Low Speed Wiping (LIN COMMUNICATION) and High Speed Wiping (LIN COMMUNICATION) are controlled by the RAIN SENSOR INPUT signal.

NOTE: When RAIN SENSOR is mounted on vehicle, the RAIN Bit of LIN Is 1. In this Vehicle, if AUTO switch of M/F is ON, then M/F is sent W INT 1 and INT. time combination (INT2, INT1, INT0) via LIN COMMUNICATION.
1. BCM OUTPUT SIGNAL (BCM TO RAIN SENSOR)
  The BCM sends to the rain sensor a pulse width modulated waveform. The total period of the waveform is greater than 10 milliseconds.
2. BCM INPUT SIGNAL (RAIN SENSOR TO BCM)
  The Rain Sensor sends back to the BCM a pulse width modulated waveform with one distinct period (see diagram below):

  Fig 6: BCM Input Signal Waveform
  Courtesy of HYUNDAI MOTOR CO.
3. AUTOMATIC MODE
  When the wiper switch is moved to AUTO position and the Ignition switch is in IGN2 position, the Rain sensor is considered to be in "AUTOMATIC" mode.
TAIL LAMP AUTO CUT
1. GENERAL CONTROL
  In BATTERY ON State, if (TAIL SW INPUT is ON and AUTO CUT is not activity), TAIL LAMP RELAY OUTPUT is ON.

  The BCM memorizes the AUTO CUT state in EEPROM.
2. TAIL LAMP AUTO CUT IN NON-SMK OPTION
  The auto-cut strategy ensures that tail lamps are turned off even if the driver forgets to turn them off.

  The tail lamp is turned ON by tail switch after KEY IN switch ON, then after if the user KEY IN switch OFF and opens the driver side door, the TAIL lamp is automatically cut.

  Also at the state KEY IN switch ON, when KEY IN switch is turned OFF after opens the Diver Side DOOR, the TAIL lamp is automatically cut.

  (The switch detection sequence of KEY IN switch and DRIVER DOOR switch is ignored.)

  After "AUTO CUT", the "AUTO CUT" function is disabled and TAIL LIGHTS are turned ON if the driver turns ON again the TAIL switch or KEY IN becomes ON.

  Fig 7: Tail Lamp Auto Cut Timing Chart
  Courtesy of HYUNDAI MOTOR CO.
3. TAIL LAMP AUTO CUT FUNCTION IN SMK OPTION
  - The case of without Limp Home condition The state of (ACC OFF & IGN1 OFF & IGN2 OFF), and Tail Lamp output On, if Driver side Door is opened, the TAIL lamp is automatically cut.
    Also after Driver side Door is opened, (ACC OFF & IGN1 OFF & IGN2 OFF), the TAIL lamp is automatically cut.
  - The case of Limp Home condition TAIL lamp auto cut function is operated the same method of Non-PIC SMK Option.
  NOTE: BCM has same behavior between SMK and Non-SMK option in tail lamp autocut function. So, for active autocut, it is need to off the key IN and ACC signal.

HEAD LAMP CONTROL

HEAD LAMP LOW CONTROL

In IGN2 ON State, if there is HEAD LAMP LOW SW input (LIN COMMUNICATION), HEADLAMP LOW RELAY OUTPUT is turned ON.

HEAD LAMP CONTROL CHART

IGN 2	HEAD LAMP LOW SW	HEAD LAMP LOW RELAY
OFF	Don't care	OFF
ON	OFF	OFF
ON	ON	ON

In IGN1 ON and IGN2 ON status, If the LIN Communication failure is detected, turn on the head Lamp Low. (LIMPHOME strategy)

HEAD LAMP HIGH CONTROL
In IGN2 ON State, If HEAD LAMP HIGH SW INPUT and HEAD LAMP LOW RELAY (LIN COMMUNICATION) is detected then HEAD LAMP HIGH RLY OUTPUT is turned ON, which means the 0 HL HIGH RELAY and also the O HL HIGH IND the indicator on the dashboard.
PASSING CONTROL
In IGN2 ON State, If HEAD LAMP PASSING INPUT (LIN COMMUNICATION) is detected then HEAD LAMP HIGH RLY OUTPUT (0 HL HIGH RELAY and O HL HIGH IND) is turned ON and also at the same time HEAD LAMP LOW RLY OUTPUT.

AUTO LIGHT CONTROL

In the state of IGN1 ON and IGN2 ON, when MULTI FUNCTION switch module detects AUTO LIGHT switch ON, TAIL LAMP RELAY output and HEAD LAMP LOW RELAY output are controlled according to AUTO LIGHT Sensor's INPUT. In the state of IGN1 ON, when MULTI FUNCTION switch module detects AUTO LIGHT switch ON, TAIL LAMP RELAY output is controlled according to AUTO LIGHT Sensor's INPUT.

If IGN1 ON (for cranking) or ACC ON (for AV TAIL Function activity), the BCM supplies the power to Auto light sensor and monitors the range of this supply and raises up a failure as the supply' s voltage is out of range (that is.: less than 4 Volts, more than 6 Volts).

The filtering of the error is 300ms to raise up this one, and also 300ms to clear this one.

Then this failure occurs and as long as this is present, the head lamp must be turned on without taking care about the sunlight level provided by the sensor.

This is designed to prevent any head lamp cut off when the failure occurs during the night.

EXPORT VERSION

Fig 8: Head Lamp Low Control Graph
Courtesy of HYUNDAI MOTOR CO.

Fig 9: [Head Lamp Low Control Timing Chart]
Courtesy of HYUNDAI MOTOR CO.

NOTE: At export version HEAD LAMP LOW RELAY is turned ON/OFF at the time TAIL LAMP RELAY is turned ON/OFF.

THRESHOLD VALUE TABLE

In IGN2 ON State, according to AUTO LIGHT Sensor's INPUT, TAIL and HEADLAMP is ON/OFF.

THRESHOLD VALUE REFERENCE CHART

	TAIL	HEAD LAMP
ON	1.77 ± 0.08[V] (Tail On SunL Threshold) below	0.61 ± 0.06[V] (Head On SunL Threshold) below
OFF	3.47 ± 0.10[V] (Tail Off SunL Threshold) upper	1.00 ± 0.06[V] (Head Off SunL Threshold) upper

FRONT FOG LAMP CONTROL
In case of (IGN2 = ON) & (HEADLAMP LOW OUTPUT=ON) & (HEADLAMP HIGH OUTPUT OFF) status, if FRONT FOG SWITCH input is detected, FRT FOG LAMP RELAY OUTPUT (O FOG FRONT RELAY) is turned ON.

Fig 10: Front Fog Lamp Control Timing Chart
Courtesy of HYUNDAI MOTOR CO.

NOTE: Front Fog Lamp SW is not Self-Return Type.
DAYTIME RUNNING LIGHT CONTROL (CANADA)
DRL option input & North America option input line is connected to the ground electrical level.

CANADA option uses HIGH BEAM as the HEAD LAMP.

Release condition:
1. HEADLAMP LOW RELAY ON or
2. HEADLAMP HIGH RELAY or PASSING ON or
3. PARKING BRAKE ON

  Fig 11: Daytime Running Light Control Timing Chart
  Courtesy of HYUNDAI MOTOR CO.
NOTE: Headlamp low output includes condition on switches and also by AUTO LIGHT.
FOLLOW ME HOME FUNCTION
Due to the change of law for North American variant, tail lamp should be ON as long as head lamp is ON. Tail lamp can' t be turned OFF when head lamp is ON.

After switching off ignition, you generate a call of headlight (head lamp low and tail lamp) and open driver side door and then after close driver door, you will have consequently lighting of head lamp low and tail lamp during 30sec.

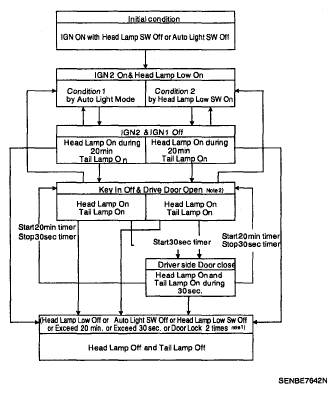

Fig 12: Headlamp Flow Chart
Courtesy of HYUNDAI MOTOR CO.
NOTE:
1. Door Lock 2 times : Tx Door Lock 2 times or Passive Door Lock 2 times
2. When Open the Driver door, former 2 times lock counter is cleared, and Start new 2 times lock counting
3. During active the Follow-me-home function (counting 30sec), if Driver door is re-opened, re-start 20min counter and if Driver door is re-close, re-start 30sec counter.

  Fig 13: Head Lamp And Tail Lamp Assembly Timing Chart (1 Of 2)
  Courtesy of HYUNDAI MOTOR CO.

  Fig 14: Head Lamp And Tail Lamp Assembly Timing Chart (1 Of 2)
  Courtesy of HYUNDAI MOTOR CO.
FLASHER BUZZER OPERATION
When the BCM detects the TURN LEFT SIGNAL or TURN RIGHT SIGNAL transition, then starts flasher buzzer outputs depend on transition.

Fig 15: Flasher Buzzer Blinking Chart
Courtesy of HYUNDAI MOTOR CO.
TURN SIGNAL NORMAL OPERATING CONDITION
(Turn signal period : 85 ± 10 period/min)

While IGN2 is ON, if FULL TURN SIGNAL or TURN SIGNAL LEFT or TURN SIGNAL RIGHT or HAZARD input is detected, then turn signal outputs are turned ON TURN LAMPs following as switch input state (FULL LEFT, FULL RIGHT or HAZARD).
- Full Turn Left (T LEFT = 1 and F TURN = 1) : Continuously flashing turn left lamp
- Full Turn Right (T RIGHT = 1 and F TURN = 1): Continuously flashing turn right lamp
NOTE: Priority: HAZARD > TURN SIGNAL

Fig 16: Hazard Switch Blinking Pattern - Turn Signal Normal Operating Condition
Courtesy of HYUNDAI MOTOR CO.

Normal : 85 ± 10 Period/min
DOUBLE BLINKING CONDITION
In case of activation of hazard the fault detection will be able to detect the failure only if 3 bulbs are broken-down. This bulb failure can be tested by the diagnostic specification.

In case of turn signal activation when one of the FRONT or REAR is broken-down (Lamp failure), the turn signal blinks with double frequency. Lamp failure condition as below.
1. Flasher fault detection should be inhibited according to Battery voltage status When the VBAT voltage is lower than 9V → this threshold for flasher fault detection should be configured as the calibration variable (EEPROM variable)
2. The fault detection is carried out continuously, until fault condition is detected by BCM and once fault is detected, BCM keep the fault condition until flasher triggering condition is released (Turn Right or Left switch off/IGN1 & IGN2 or Hazard switch off)
The double blinking works at IGN1 ON & IGN2 ON condition, double blinking for Hazard: Except side lamp, if any error condition is detected then triggered the double blinking.

Period: 140 ± 10 period/min

Fig 17: Double Blinking Condition Chart
Courtesy of HYUNDAI MOTOR CO.
MAGNETIC BUZZER SOUND
Sound Period : T2 (0.6 s or 0.25 s or 0.730s)

Sound duration : T1 (fix value or infinite)

Fig 18: Magnetic Buzzer Sound Blinking Pattern
Courtesy of HYUNDAI MOTOR CO.
1. SOUND PRIORITY
  - 1st: Diagnostic sound (provided to test the Buzzer by way of Diagnostic tool)
  - 2nd : Seatbelt warning
  - 3rd : Overspeed warning
  - 4th : Key operated warning
  - 5th : Parking Brake warning
  - 6th : "MSL not blocked" warning (SMK option only)
  - 7th : Key learning sound (Sound period : 600 msec.) (Learning with High SCAN tool) (non SMK option only)
  - 8th : Key learning sound (Sound period : 600 msec.) (Learning with Code Saving tool) (non SMK option only)
  - 9th : Warnings for SMK systems (ID Deactivation warning) (SMK option only)
  NOTE: A buzzer ending restores the activity of a buzzer previously interrupted.
2. BUZZER SOUND ENDING
  NOTE: After any buzzer sound block ends, another buzzer sound block can start. During warning sound, the other high priority warning can t interrupt current activating one before the end of the previous sound block.

  Fig 19: Buzzer Sound Ending Graph
  Courtesy of HYUNDAI MOTOR CO.
SEAT BELT WARNING FUNCTION
A calibration bit Seat belt warning buzzer sound option is defined to disable/enable the seat belt reminder buzzer, this calibration bit is by default set to True.

A calibration bit Assistant Seat Belt Reminder option is defined to enable/disable the Assistant side Seat Belt Reminder function, this calibration bit is by default set to False.
1. SEAT BELT WARNING LAMP DRIVING CONDITION

  Fig 20: Seat Belt Warning Lamp Driving Condition Graph
  Courtesy of HYUNDAI MOTOR CO.
2. SEAT BELT WARNING SOUND
  Frequency: 800 Hz

  Sound period : T2 = 1sec

  Sound duration : T1 = (see following chapters)

  In case of 6sec blinking case, following as seat-belt lamp blinking, buzzer warning sound. So if lamp is blinking over 6sec, buzzer warning sound one more time.

  Fig 21: Seat Belt Warning Sound Graph
  Courtesy of HYUNDAI MOTOR CO.
KEY LEARNING INTERNAL SOUND
Key Learning sound:

Frequency: 800 Hz

Sound period: 600msec

Sound duration: 600msec

When each Key's learning is ended, magnetic buzzer is operated, every one time.

Fig 22: Key Learning Internal Sound Graph
Courtesy of HYUNDAI MOTOR CO.
KEY OPERATED WARNING
1. KEY OPERATED WARNING SOUND
  Frequency: 800 Hz

  Sound period : T2 = 0.6sec

  Sound duration : infinite
2. KEY OPERATED WARNING ALGORITHM
  - (While IGN KEY is inserted into the KEY CYLINDER (*) Or ACC is ON) & (IGN1 = IGN2 = ALT'L = OFF) if DRIVER SIDE DOOR is opened. KEY OPERATED WARRING starts.
    (*) if non SMK, or SMK option : KEY IN = TRUE
  - (If the KEY is pulled out from key cylinder & ACC = OFF)
    Or IGN2 = ON

    Or IGN1 = ON

    Or ALT'L = ON

    Or if DRIVER SIDE DOOR is closed, then the key operated warning stops immediately.
  - DURATION: Permanent (The KEY OPERATED WARNING continues permanently if the condition has not changed)

    Fig 23: Key Operated Warning Timing Chart
    Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    The same definition is used for SMK and non SMK option.

    The activation and deactivation must be made in the states. When an event with a higher priority interrupts the key reminder and when this event finishes, the key reminder must be reactivated.
SMART KEY SYSTEM WARNINGS (SMART KEY OPTION ONLY)
1. SMK (Smart Key) system warning sounds
  In case of MAGNETIC BUZZER:

  Frequency: 800 Hz

  Sound period: T2 = 0.25 s

  Number of period : 1

  TON : 3 sees

  TOFF : 0 sees

  The frequency is fixed at 2khz.
2. 2 warning sounds are necessary for the SMK system in the following cases:
  When receiving the "ID out warning" command from SMK ECU via CAN (meaning that ID is found outside the vehicle), the warning sound (MAGNETIC BUZZER and External BUZZER) starts.

  MAGNETIC BUZZER Sound duration : T1 = 5 s
PARKING BRAKE BUZZER WARNING
1. PARKING BRAKE WARNING SOUND
  Frequency: 800 Hz

  Sound period : T2 = 0.6sec

  Sound duration : infinite
2. OPERATION
  - In state of IGN1 ON, this warning sound is start when vehicle speed is over 10Km/h and PARK BRAKE switch is ON.
  - This activity is stop if:
    - IGN1 OFF.
    - Vehicle speed is under 10kmh (with filtering as same method with CAN bit 20Kmh)
    - PARK BRAKE switch is OFF

      Fig 24: Parking Brake Buzzer Warning Graph
      Courtesy of HYUNDAI MOTOR CO.

IGN KEY HOLE ILLUMINATION

FUNCTION DESCRIPTION

TURN ON CONDITION

TURN ON CONDITION CHART

State	Description
Initial condition	IGN1 OFF
Event	DOOR open ((FRONT LEFT DOOR SW= ON) OR (FRONT RIGHT DOOR SW = ON))
Action	IGN KEY HOLE illumination is turned on. KEY HOLE ILLUMINATION = ON

30 SEC ILLUMINATION CONDITION

ILLUMINATION CONDITION CHART

State	Description
Initial condition	Turn On Condition
Event	DOOR close ((FRONT LEFT DOOR SW= OFF) AND (FRONT RIGHT DOOR SW = OFF))
Action	The IGN keyhole is illuminated for 30 sec. If DOORS Open again during 30 sec illumination, the turn ON condition starts again.

ILLUMINATION STOPS CONDITION

ILLUMINATION STOPS CONDITION CHART

State	Description
Initial condition	IGN KEY HOLE is illuminated
Event	IGN1 ON or Entered ARM MODE
Action	IGN KEY HOLE illumination is turned off immediately. KEY HOLE ILLUMINATION = OFF.

Fig 25: IGN Key Hole Illumination Timing Chart

Courtesy of HYUNDAI MOTOR CO.

DEFOGGER AND DEICER TIMER

FUNCTION DESCRIPTION

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	IGN1 ON & Alternator level High & Defogger is OFF (DEFOGGER RELAY = OFF, and DEFOGGER ACTIVITY = OFF)
Event	Defogger is activated (DEFOGGER SW = ON)
Action	Defogger Outputs is turned ON (DEFOGGER RELAY = ON, and DEFOGGER ACTIVITY = ON)

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	IGN1 ON & Alternator level High & Defogger is ON
Event	Defogger SWITCH Input pushed again OR T1 delay has elapsed since Defogger has been turned on
Action	Defogger Outputs are turned OFF: (DEFOGGER RELAY = OFF, and DEFOGGER ACTIVITY = OFF)

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	IGN1 ON & Alternator level High & DEICER is OFF (DEICER RELAY = OFF)
Event	DEICER is activated (DEICER SWITCH = ON)
Action	Deicer output is turned ON (DEICER RELAY = ON)

CONDITION 4

CONDITION 4 REFERENCE CHART

State	Description
Initial condition	IGN1 ON & Alternator level High & DEICER is ON
Event	DEICER SWITCH input pushed again OR T1 delay has elapsed since DEICER has been turned on
Action	Deicer output is turned OFF (DEICER RELAY = OFF)

If alternator input is changed to low or IGN1 input is changed to Off, Defogger output and DEICER output should be turned OFF immediately.

Fig 26: Defogger And Deicer Timer Timing Chart

Courtesy of HYUNDAI MOTOR CO.

NOTE: The delay between DEFOGGER SWITCH INPUT and DEFOGGER OUTPUT: Less than 100msec, Outside mirror DOOR MODULE via CAN controls heated function. It is the same for DEICER SWITCH input and DEICER output.
DEICER and DEFOGGER output is turned on independently by DEICER SWITCH input and DEFOGGER SWITCH input.

DECAYED ROOM LAMP

Transitions from Room lamp OFF state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	Room lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	Transition of ALL DOORS CLOSED to NOT (ALL DOORS CLOSED) for more than 0.1 sec
Action	State changed to ROOM LAMP ON for 20 min Turn ROOM LAMP for a duration of 20 ± 1 minutes

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	Room lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	UNLOCK by RKE If SMK variant: UNLOCK by SMK RKE
Action	State changed to ROOM LAMP ON for 30s ROOM LAMP is turned ON for 30sec.

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	Room lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	IGN1 = ON and NOT (ALL DOORS CLOSED)
Action	State changed to ROOM LAMP ON The room lamp is turned ON without time limitation

Fig 27: Decayed Room Lamp Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Transitions from Room lamp ON for 30s state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 30s & IGN1=OFF
Event	At least 1 door is opened more than 0.1 sec (ALL DOOR NOT CLOSED = ON)
Action	State changed to ROOM LAMP ON for 20min ROOM LAMP is kept ON for 20 ± 1 minutes

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 30s & IGN1=OFF
Event	UNLOCK by RKE If SMK variant: UNLOCK by SMK RKE
Action	State remains ROOM LAMP ON for 30s ROOM LAMP ON 30sec timer is re-initialized for an other 30sec duration

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 30s & IGN1=OFF
Event	IGN1=ON Or 30s timer elapsed Or ATWS (The BCM goes to ARM)= 1 Or ALL DOOR LOCKED (ALL DOOR LOCKED = REAR LEFT KNOB UNLOCK = 0, REAR RIGHT KNOB UNLOCK = 0, FRONT LEFT KNOB UNLOCK = 0 and FRONT RIGHT KNOB UNLOCK = 0 via CAN communication)
Action	State changed to ROOM LAMP DECAYING ROOM LAMP is slowly decayed off during 2 ± 0.2sec

Fig 28: Room Lamp Timing Chart (For 30S State)

Courtesy of HYUNDAI MOTOR CO.

Transitions from Room lamp ON for 20min state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 20min & IGN1=OFF
Event	IGN1 = ON
Action	State changed to ROOM LAMP ON The room lamp remains ON without time limitation

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 20min & IGN1=OFF & All door unlocked
Event	ALL DOOR CLOSED
Action	State changed to ROOM LAMP ON for 30s ROOM LAMP is turned ON for 30sec

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON for 20min & IGN1=OFF
Event	ALL DOOR CLOSED & ALL DOOR LOCKED Or 20min timer elapsed
Action	State changed to ROOM LAMP DECAYING ROOM LAMP is slowly decayed off during 2 ± 0.2sec

Fig 29: Room Lamp Timing Chart (For 20Min State)

Courtesy of HYUNDAI MOTOR CO.

Transitions from Room lamp Decaying state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP DECAYING & IGN1=OFF
Event	Transition of ALL DOORS CLOSED to NOT (ALL DOORS CLOSED) for more than 0.1 sec
Action	State changed to ROOM LAMP ON for 20min ROOM LAMP is kept ON for 20 ± 1 minutes

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP DECAYING & IGN1=OFF & ALL DOOR CLOSED
Event	UNLOCK by RKE or MTS If SMK variant UNLOCK by SMK RKE
Action	State changed to ROOM LAMP ON for 30s ROOM LAMP is turned ON for 30sec

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP DECAYING
Event	Room lamp decaying completed
Action	State changed to ROOM LAMP OFF Turn OFF the room lamp

CONDITION 4

CONDITION 4 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP DECAYING
Event	IGN1 = ON and NOT (ALL DOORS CLOSED)
Action	State changed to ROOM LAMP ON The room lamp remains ON without time limitation

Fig 30: Room Lamp Decaying State Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Transitions from Room lamp ON state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON & IGN1=ON & At least 1 door is opened
Event	ALL DOORS CLOSED
Action	State changed to ROOM LAMP DECAYING ROOM LAMP is slowly decayed off during 2 ± 0.2sec

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON & IGN1=ON & At least 1 door is opened
Event	IGN1=OFF
Action	State changed to ROOM LAMP ON for 20min ROOM LAMP is kept ON for 20 ± 1 minutes

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	ROOM LAMP ON & IGN1=ON & At least 1 door is opened
Event	ALL DOOR CLOSED & IGN1=OFF
Action	State changed to ROOM LAMP ON for 30s ROOM LAMP ON 30sec timer is re-initialized for an other 30sec duration

Fig 31: Room Lamp On State Timing Chart

Courtesy of HYUNDAI MOTOR CO.

DECAYED FOOT LAMP

Transitions from Foot lamp OFF state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	Foot lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	Transition of ALL DOORS CLOSED to NOT (ALL DOORS CLOSED) for more than 0.1 sec
Action	State changed to FOOT LAMP ON for 20 min Turn FOOT LAMP for a duration of 20 ± 1 minutes

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	Foot lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	UNLOCK by RKE If SMK variant: UNLOCK by SMK RKE
Action	State changed to FOOT LAMP ON for 30s FOOT LAMP is turned ON for 30sec

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	Foot lamp OFF & IGN1=OFF & ALL DOOR CLOSED
Event	(IGN1 = ON) and [(ALL DOORS NOT CLOSED) or (P position = ON)]
Action	State changed to FOOT LAMP ON The Foot lamp is turned ON without time limitation

Fig 32: Decayed Foot Lamp Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Transitions from Foot lamp ON for 30s state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 30s & IGN1=OFF
Event	At least 1 door is opened more than 0.1 sec (ALL DOOR NOT CLOSED = ON)
Action	State changed to FOOT LAMP ON for 20min FOOT LAMP is kept ON for 20 ± 1 minutes

CONDITION 2

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 30s & IGN1=OFF
Event	UNLOCK by RKE If SMK variant: UNLOCK by SMK RKE
Action	State remains FOOT LAMP ON for 30s FOOT LAMP ON 30sec timer is re-initialized for an other 30sec duration

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 30s & IGN1=OFF
Event	IGN1=ON & P position = Off & FL Inhibit Timer 12 elapsed (1 sec.) Or 30s timer elapsed Or ATWS (The BCM goes to ARM) = 1 Or ALL DOOR LOCKED (ALL DOOR LOCKED = REAR LEFT KNOB UNLOCK = 0, REAR RIGHT KNOB UNLOCK = 0, FRONT LEFT KNOB UNLOCK = 0 and FRONT RIGHT KNOB UNLOCK = 0 via CAN communication)
Action	State changed to FOOT LAMP DECAYING FOOT LAMP is slowly decayed off during 2 ± 0.2sec

CONDITION 4

CONDITION 4 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 30s & IGN1=OFF
Event	IGN1=ON & P position = On & FL Inhibit Timer 12 elapsed (1 sec.)
Action	State changed to FOOT LAMP ON The Foot lamp is turned ON without time limitation.

Fig 33: Foot Lamp Timing Chart (For 30S State)

Courtesy of HYUNDAI MOTOR CO.

Transitions from Foot lamp ON for 20min state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 20min & IGN1=OFF
Event	IGN1 = ON
Action	State changed to FOOT LAMP ON The Foot lamp remains ON without time limitation.

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 20min & IGN1=OFF & All door unlocked
Event	ALL DOOR CLOSED & All door unlocked
Action	State changed to FOOT LAMP ON for 30s FOOT LAMP is turned ON for 30sec.

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON for 20min & IGN1=OFF
Event	ALL DOOR CLOSED & ALL DOOR LOCKED Or 20min timer elapsed
Action	State changed to FOOT LAMP DECAYING FOOT LAMP is slowly decayed off during 2 ± 0.2sec.

Fig 34: Foot Lamp Timing Chart (For 20Min State)

Courtesy of HYUNDAI MOTOR CO.

Transitions from Foot lamp Decaying state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP DECAYING & IGN1=OFF
Event	Transition of ALL DOORS CLOSED to NOT (ALL DOORS CLOSED) for more than 0.1 sec
Action	State changed to FOOT LAMP ON for 20min FOOT LAMP is kept ON for 20 ± 1 minutes.

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP DECAYING & IGN1=OFF & ALL DOOR CLOSED
Event	UNLOCK by RKE or MTS If SMK variant : UNLOCK by SMK RKE
Action	State changed to FOOT LAMP ON for 30s FOOT LAMP is turned ON for 30sec.

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP DECAYING
Event	Foot lamp decaying completed
Action	State changed to FOOT LAMP OFF Turn OFF the room lamp.

CONDITION 4

CONDITION 4 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP DECAYING
Event	(IGN1 = ON) and [(ALL DOORS NOT CLOSED) or (P position = ON)]
Action	State changed to FOOT LAMP ON The Foot lamp remains ON without lime limitation

Fig 35: Foot Lamp Decaying State Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Transitions from Foot lamp ON state:

CONDITION 1

CONDITION 1 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON & IGN1=ON & At least 1 door is opened
Event	ALL DOORS CLOSED & P position = Off
Action	State changed to FOOT LAMP DECAYING FOOT LAMP is slowly decayed off during 2 ± 0.2sec

CONDITION 2

CONDITION 2 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON & IGN1=ON & At least 1 door is opened
Event	IGN1 = OFF
Action	State changed to FOOT LAMP ON for 20min FOOT LAMP is kept ON for 20 ± 1 minutes

CONDITION 3

CONDITION 3 REFERENCE CHART

State	Description
Initial condition	FOOT LAMP ON & IGN1=ON & At least 1 door is opened
Event	ALL DOOR CLOSED & IGN1=OFF
Action	State changed to FOOT LAMP ON for 30s FOOT LAMP ON 30sec timer is re-initialized for an other 30sec duration

Fig 36: Foot Lamp On State Timing Chart

Courtesy of HYUNDAI MOTOR CO.

NOTE:

Following as INHIBIT P Logic value, BCM sends the INH P state via CAN.
Foot lamp's brightness can be changed by diagnostic values.

POWER WINDOW TIMER

POWER WINDOW TIMER FUNCTION CHART

FUNCTION	CHARACTERISTIC	NAME
FUNCTION	CHARACTERISTIC	Hardware label	Spec. Designation
INPUT	CAN COMMUNICATION	FRONT LEFT DOOR FRONT RIGHT DOOR	FRONT LEFT DOOR SWITCH FRONT RIGHT DOOR SWITCH
INPUT	ANALOG	A IG1	IGN1
OUTPUT	CAN COMMUNICATION	POWER RELAY	POWER WINDOW RELAY

FUNCTION DESCRIPTION
- POWER WINDOW RELAY CAN signal is switched ON (1) when IGN1 SWITCH On.
- When IGN1 SWITCH is turned Off, the POWER WINDOW RELAY CAN signal remains On for 30sec and then is turned OFF (0).
- During the operation (2), if driver or assistant side door is opened, the POWER WINDOW RELAY CAN signal is turned OFF (0) immediately.

  Fig 37: Power Window Timer Timing Chart
  Courtesy of HYUNDAI MOTOR CO.
