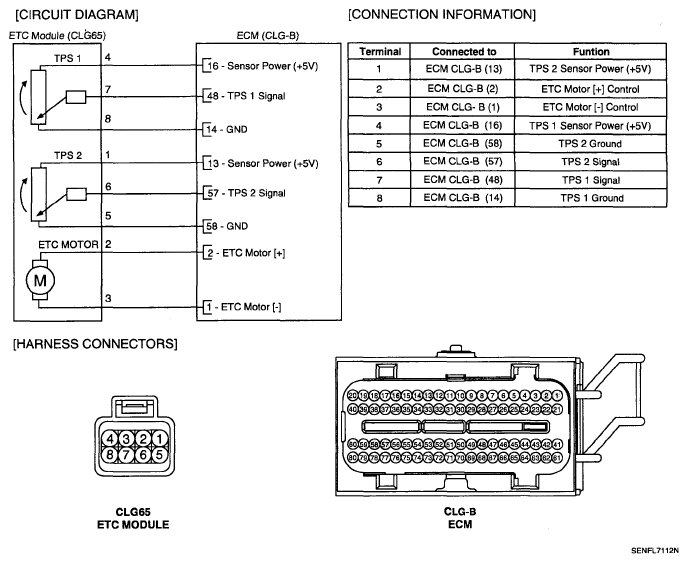

Home › Hyundai › 2008 › Veracruz Limited, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6DA - GSL 3.8) › Gasoline Engine Control System › Etc (Electronic Throttle Control) System › Inspection › Schematic Diagram
