Hyundai
›
2008
›
Veracruz Limited, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System (G6DA - GSL 3.8)
›
Gasoline Engine Control System
›
Manifold Absolute Pressure Sensor (Maps)
›
Inspection
›
Schematic Diagram
Schematic Diagram

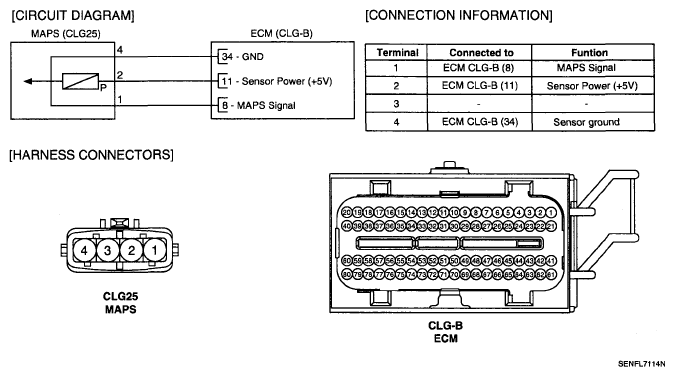

Fig 1: Manifold Absolute Pressure Sensor (MAPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
