Hyundai
›
2009
›
Accent GLS, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Fuel System
›
Engine Control/Fuel System
›
Engine Control System
›
Components Location
Components Location

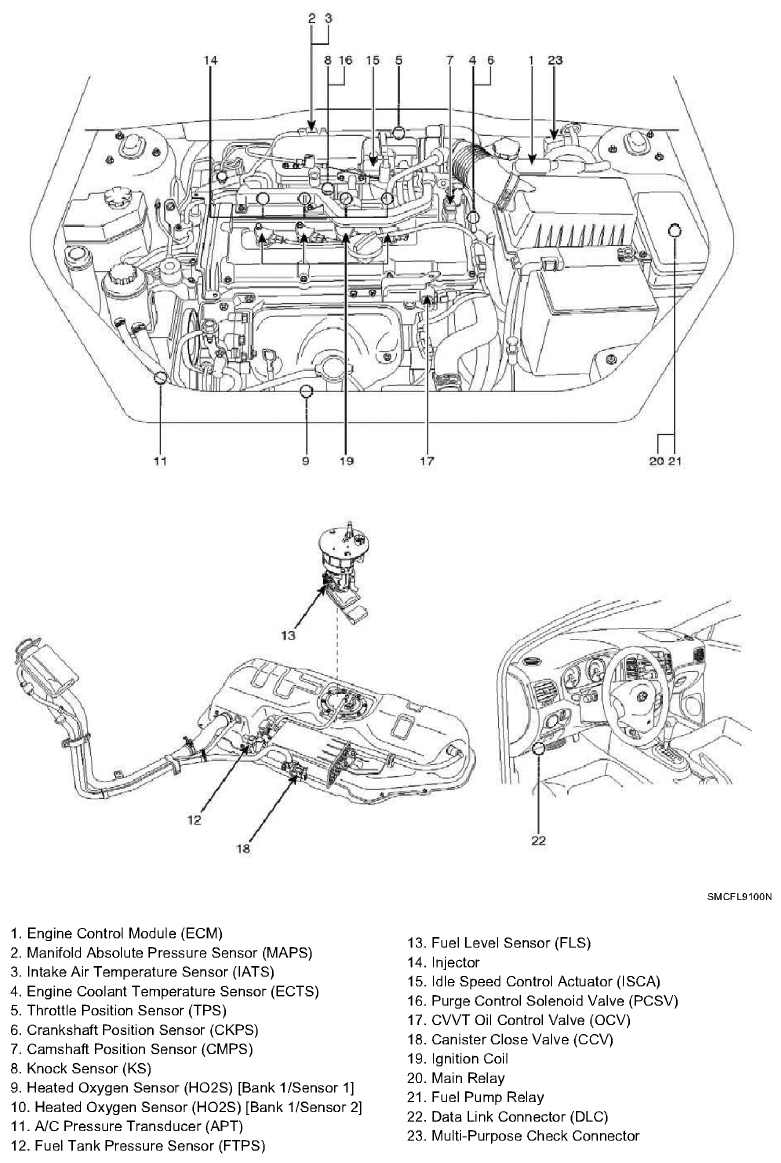

Fig 1: Identifying Fuel System Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

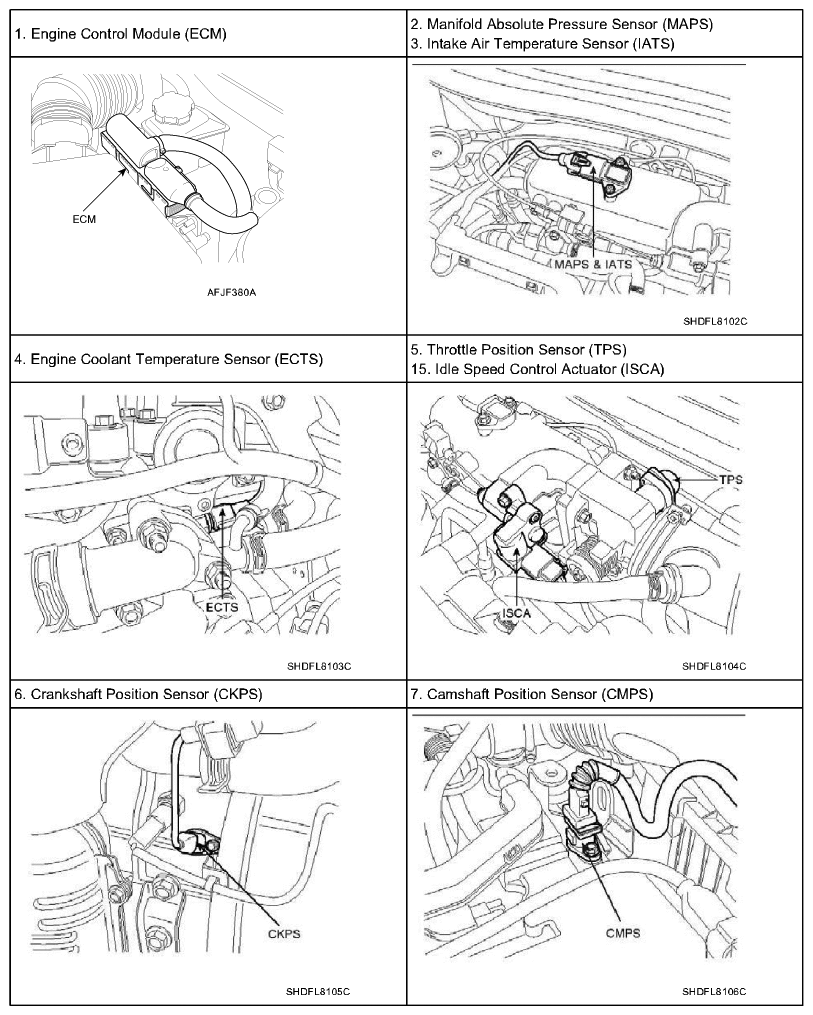

Fig 2: Identifying Fuel System Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

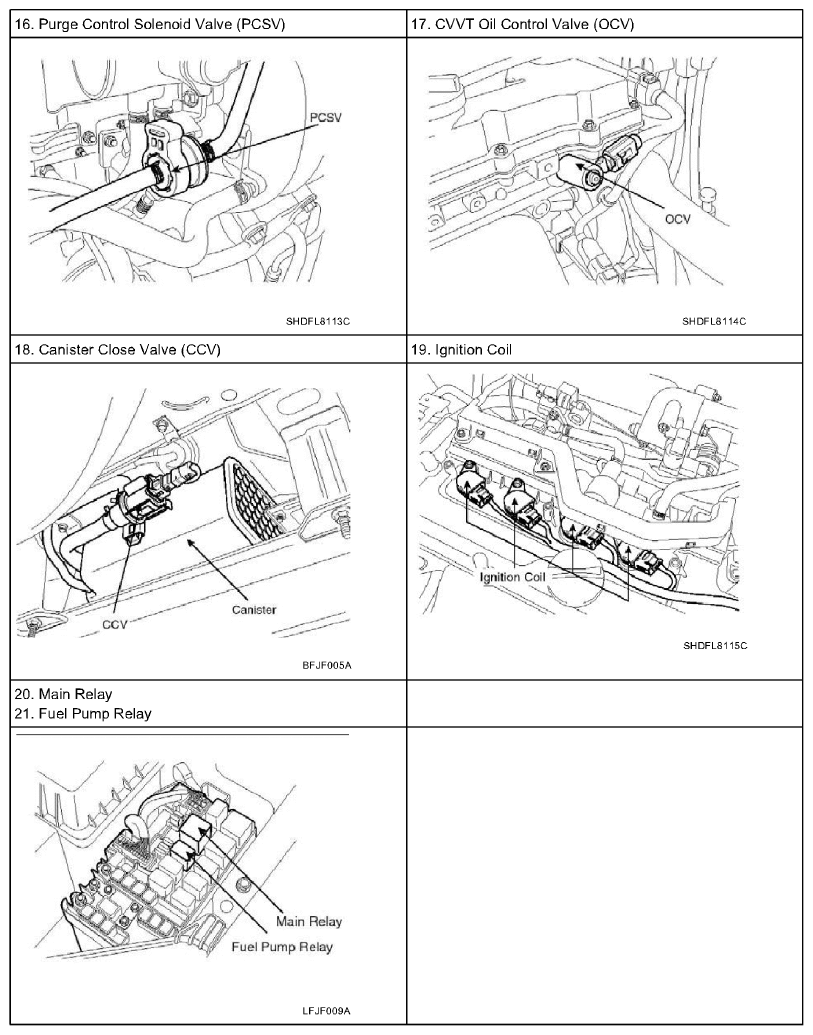

Fig 3: Identifying Fuel System Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

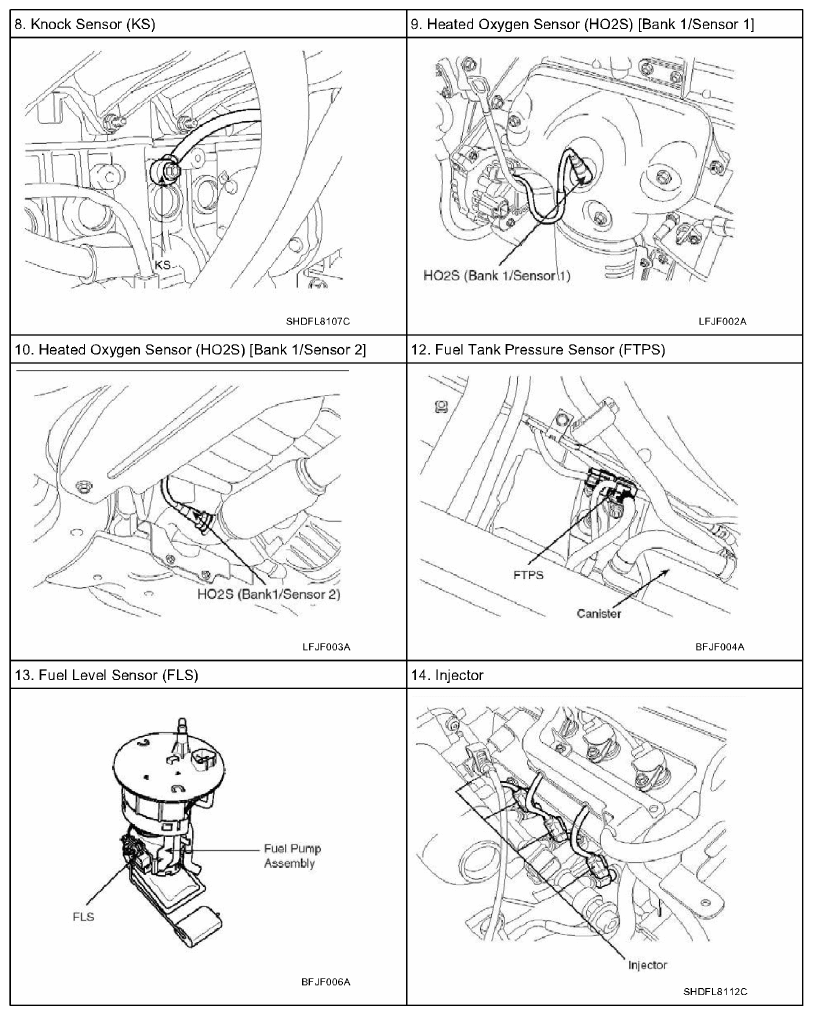

Fig 4: Identifying Fuel System Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
