Circuit Diagram

[A/T]

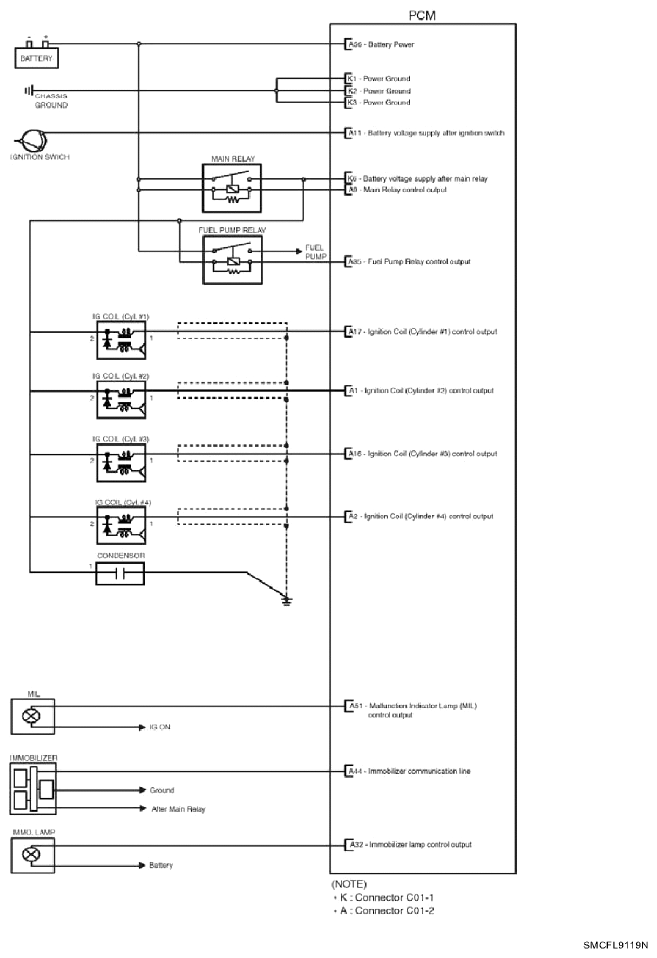

Fig 1: A/T Fuel System Circuit Diagram (1 Of 4)

G06129946

Courtesy of HYUNDAI MOTOR CO.

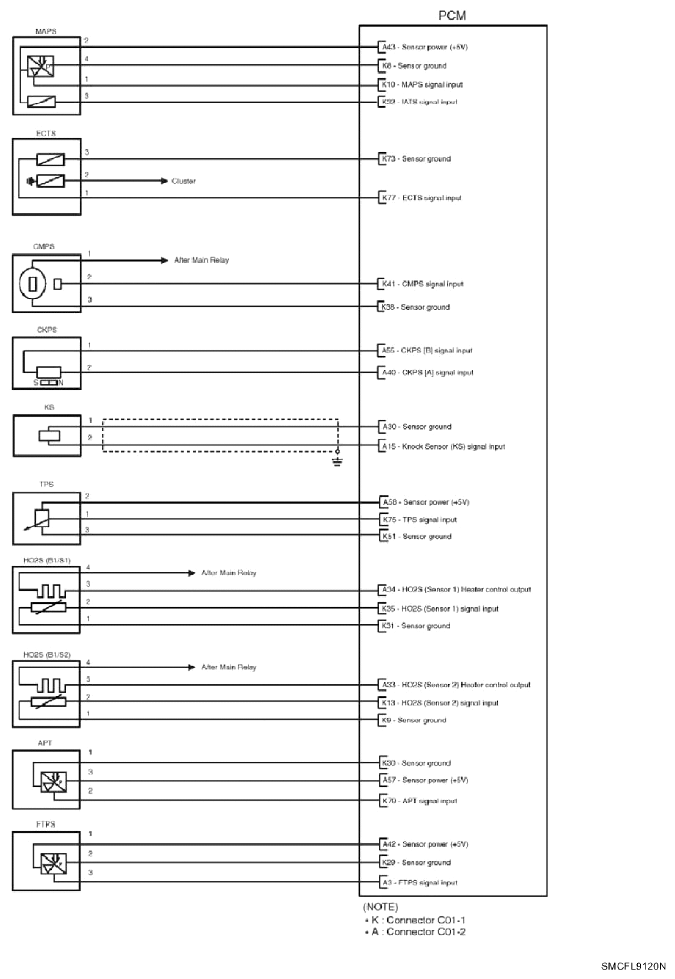

Fig 2: A/T Fuel System Circuit Diagram (2 Of 4)

G06129947

Courtesy of HYUNDAI MOTOR CO.

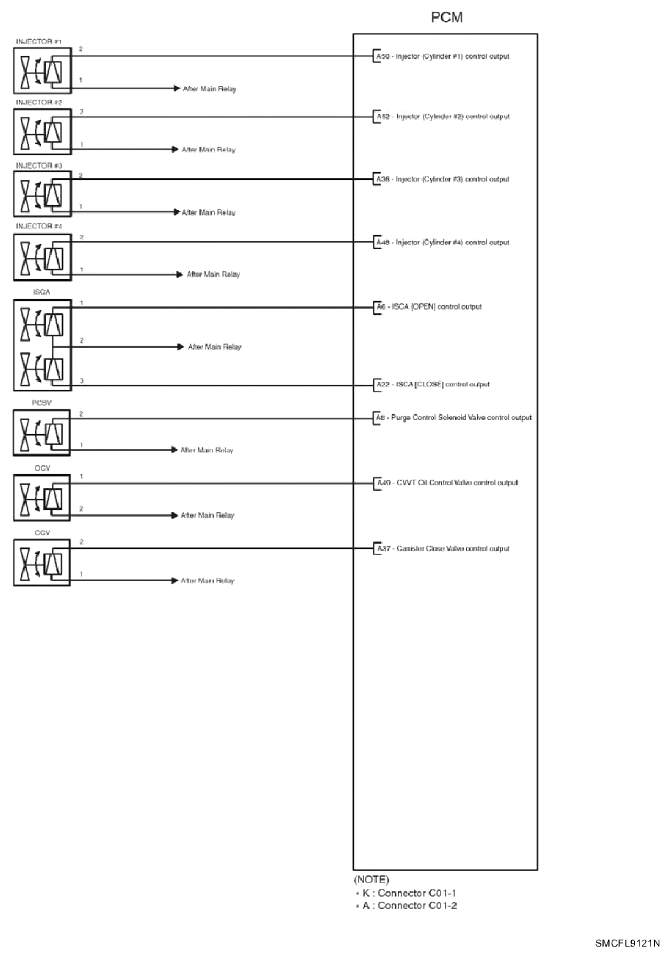

Fig 3: A/T Fuel System Circuit Diagram (3 Of 4)

G06129948

Courtesy of HYUNDAI MOTOR CO.

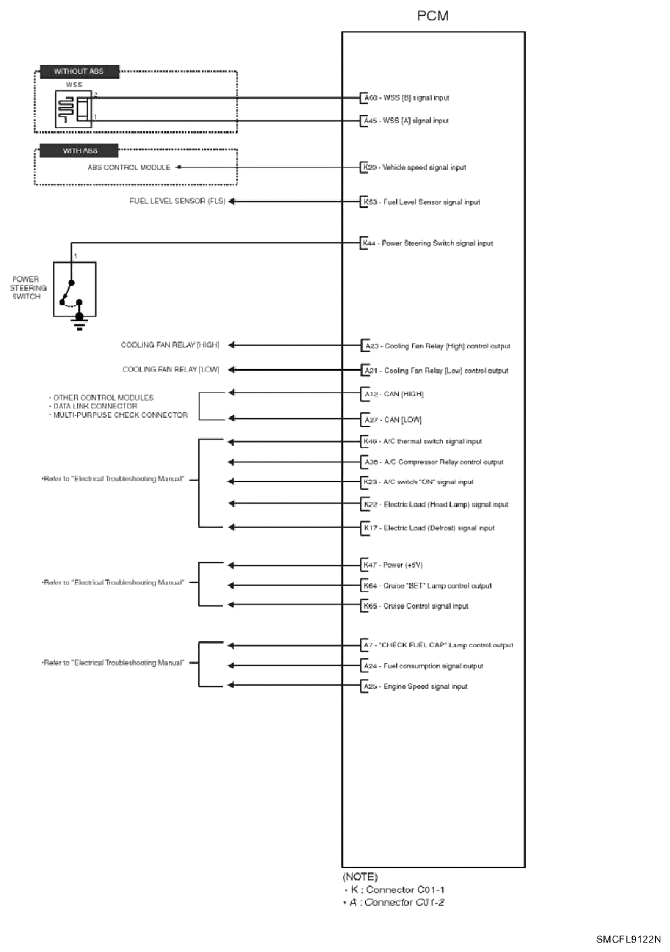

Fig 4: A/T Fuel System Circuit Diagram (4 Of 4)

G06129949

Courtesy of HYUNDAI MOTOR CO.

[M/T]

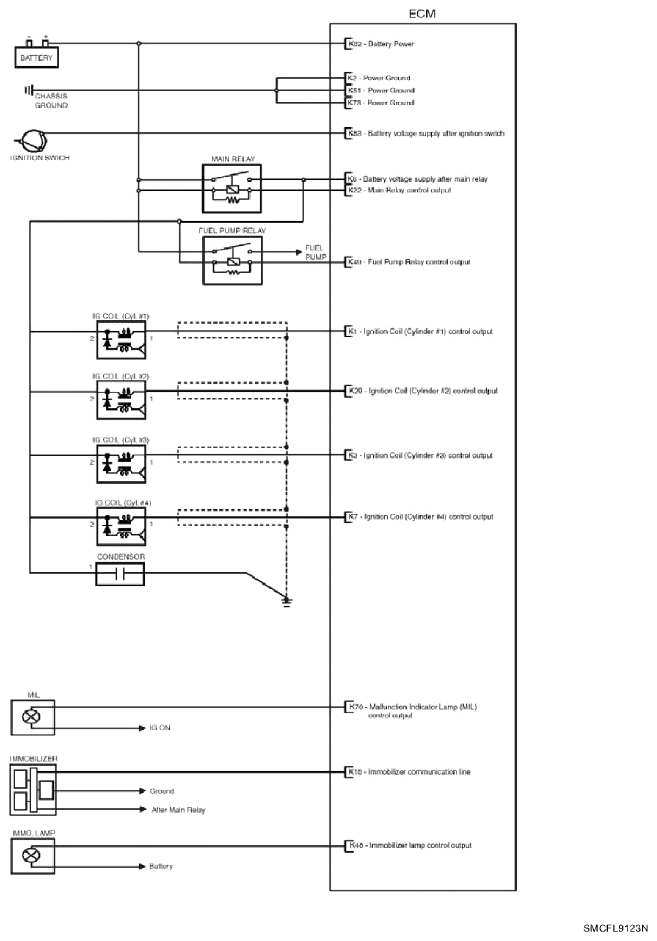

Fig 5: M/T Fuel System Circuit Diagram (1 Of 3)

G06129950

Courtesy of HYUNDAI MOTOR CO.

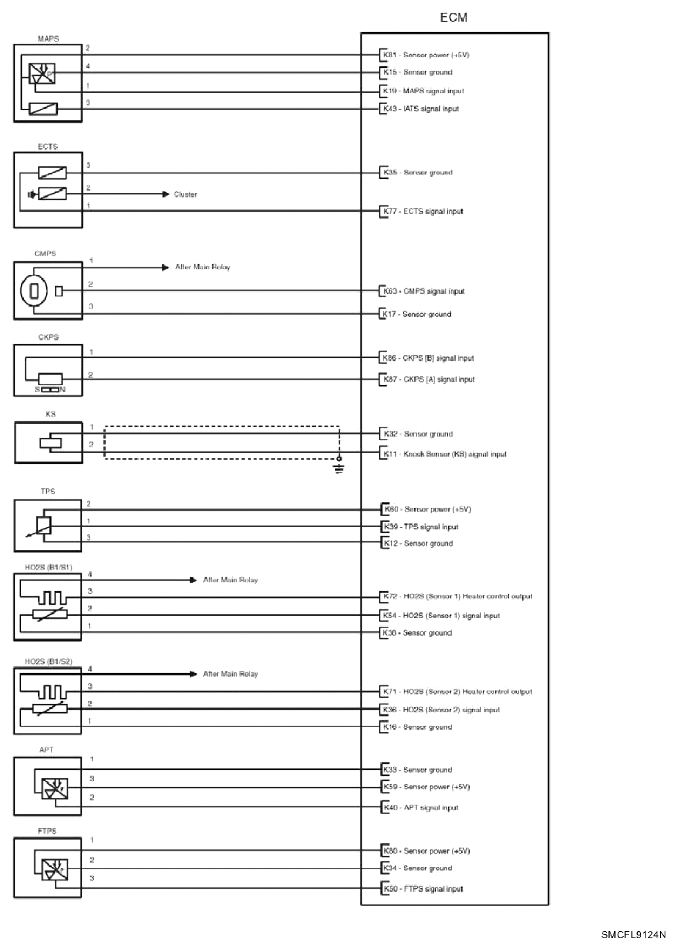

Fig 6: M/T Fuel System Circuit Diagram (2 Of 3)

G06129951

Courtesy of HYUNDAI MOTOR CO.

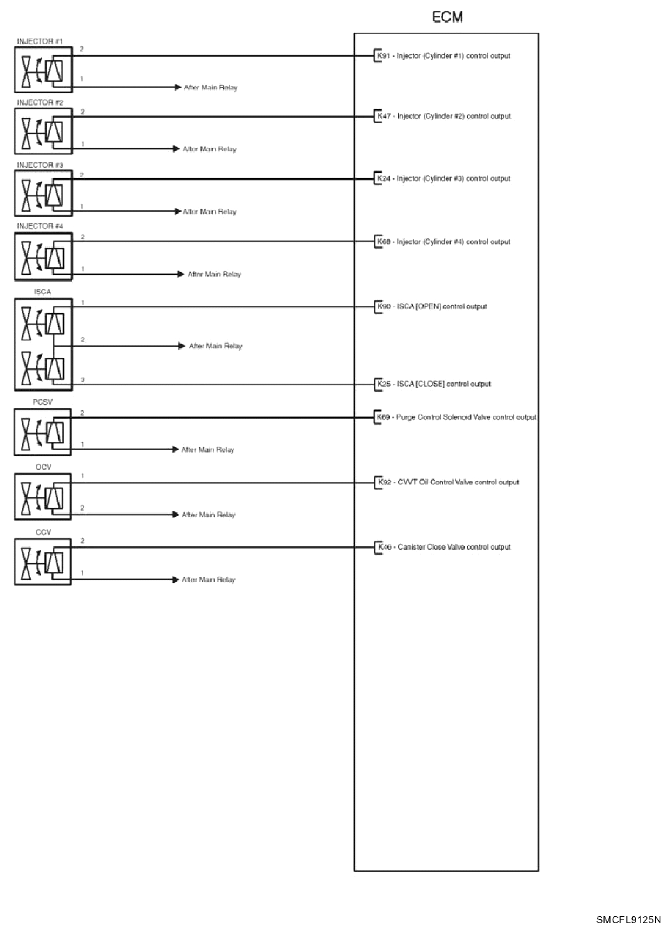

Fig 7: M/T Fuel System Circuit Diagram (3 Of 3)

G06129952

Courtesy of HYUNDAI MOTOR CO.

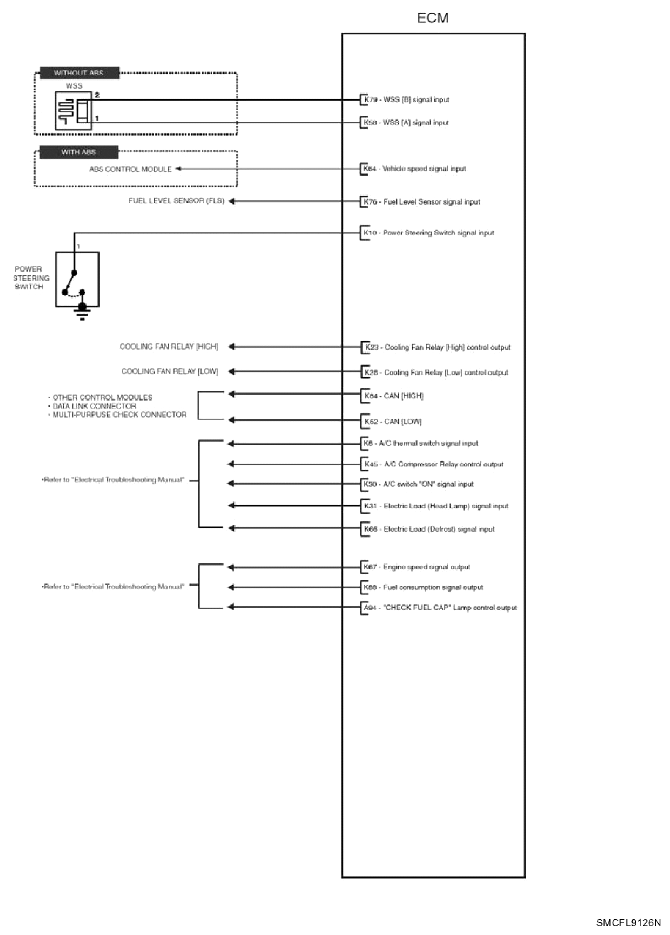

Fig 8: Engine Control System Circuit Diagram

G06129953

Courtesy of HYUNDAI MOTOR CO.
