Circuit Diagram

[A/T]

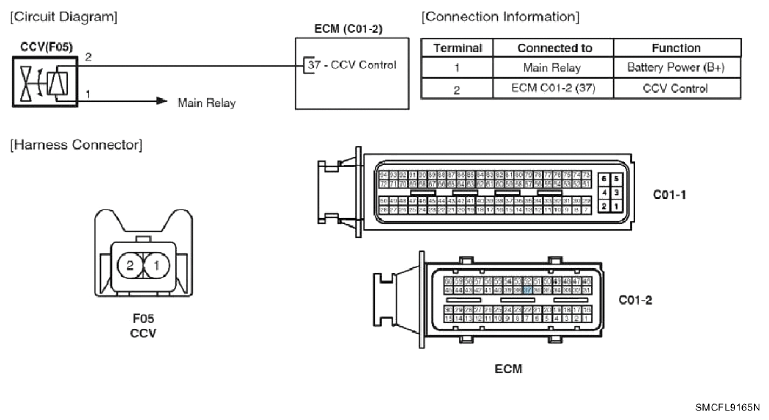

Fig 1: CCV And ECM Circuit Diagram (A/T)
G06130007Courtesy of HYUNDAI MOTOR CO.

[M/T]

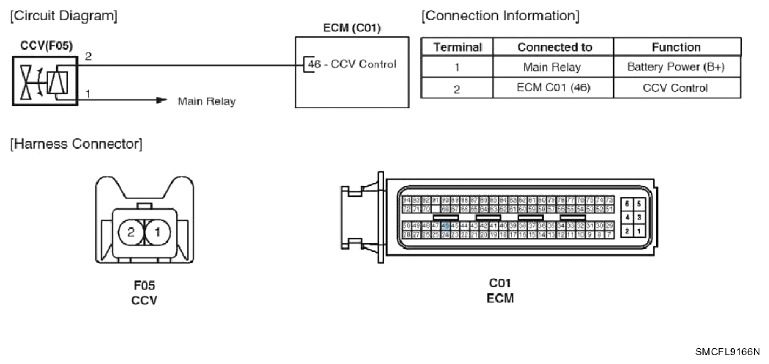

Fig 2: CCV And ECM Circuit Diagram (M/T)
G06130008Courtesy of HYUNDAI MOTOR CO.
