Circuit Diagram

[A/T]

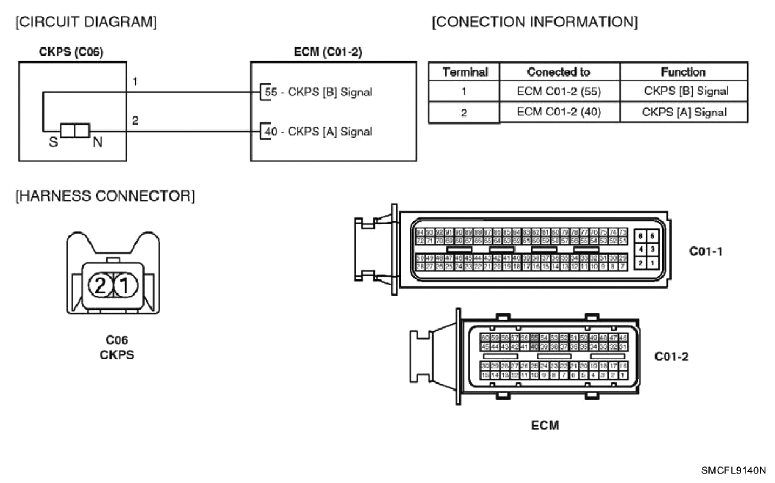

Fig 1: CKPS And ECM Circuit Diagram (A/T)
G06129977Courtesy of HYUNDAI MOTOR CO.

[M/T]

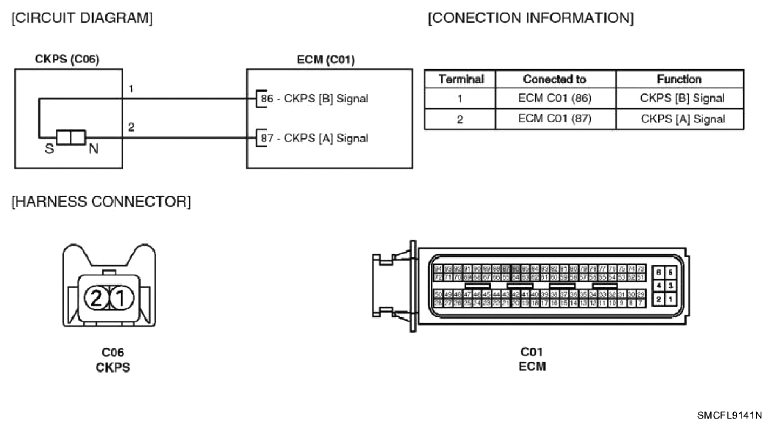

Fig 2: CKPS And ECM Circuit Diagram (M/T)
G06129978Courtesy of HYUNDAI MOTOR CO.
